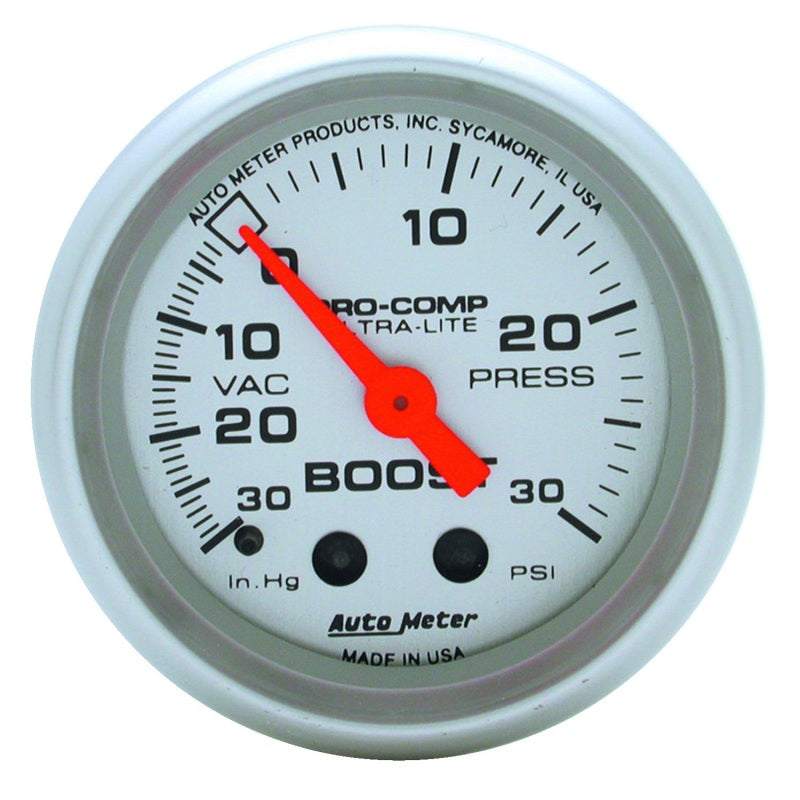

The Standard In The Industry, Autometers Mechanical Boost/Vac Gauges Have Found Their Way Into More Builds Than Any Other. Using A Patented, High Precision Bourdon Tube Meter Movement, There Isnt Another Gauge On The Market That Can Lay Claim To The Levels Of Accuracy Or Durability You" Ll Find Here. A Simple 1/8" Npt Pressure Connection Requires No Electrical Hookup For Operation. Includes 1/8" Npt Fittings And Nylon Line Kit.
Installation Instructions
Specifications
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
-
Includes Tubing: 10 ft. nylon tubing
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-1/4"
-
Includes Mounting Hardware: Part # 2230
-
Range: 30 IN HG/30 PSI
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Gauge Type: Boost/Vacuum
-
Bezel Color: Brushed Aluminum
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Dial Color: Silver
-
Bezel Style: Super Bezel
-
Series: ULTRA-LITE
-
Lighting Color: White Incandescent
