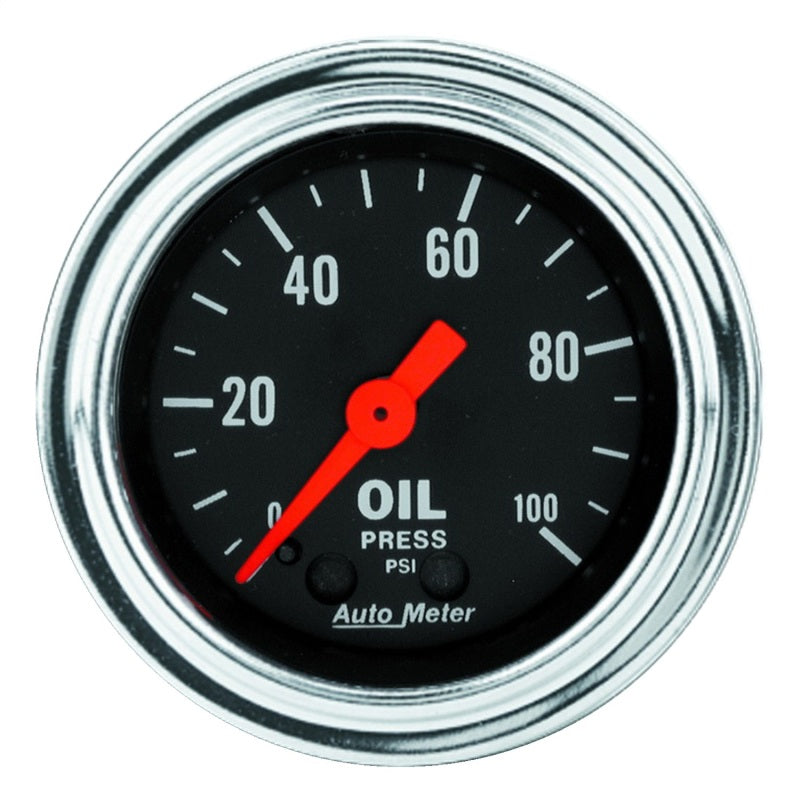

The Life Blood Of Your Engine, A Lack Of Oil Pressure Is One Of The Most Catastrophic Scenarios That Can Happen. Knowing The Precise Pressure Is Critical To Both Its Longevity And Performance, As Well As Your Peace Of Mind. Autometers Mechanical Oil Pressure Gauge Utilizes The Most Advanced Bourdon Tube Meter Movement On The Market To Deliver Accuracy And Durability You Wont Find Anywhere Else. A Simple 1/8" Npt Connection Makes Installation Easy. Fittings And Nylon Tube Are Included And Optional Braided Stainless Line Kits Are Available.
Features & Benefits
- Autometers Race Proven Mechanical Instruments Provide Trusted Accuracy While Being Simple To Install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8" nylon line, 1/8" NPT compression fittings, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
-
Range: 0-100 PSI
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
-
Includes Tubing: 10 ft. nylon tubing
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-5/16"
-
Includes Mounting Hardware: Part # 2230
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Dial Color: Black
-
Bezel Color: Chrome
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: SAE
-
Series: TRADITIONAL CHROME
-
Lighting Color: White Incandescent
