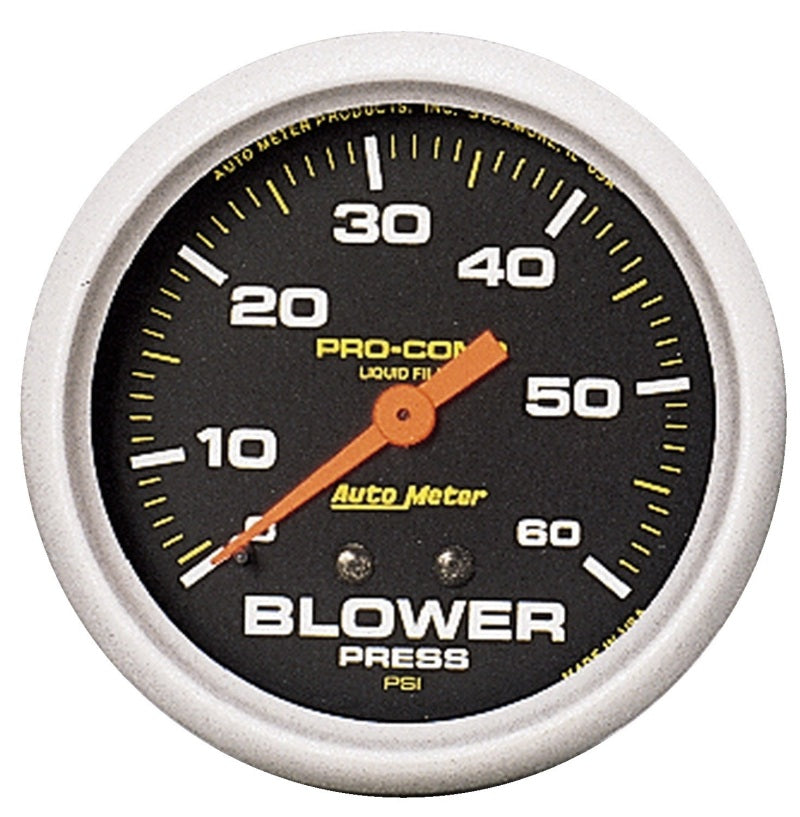

Know Your Exact Blower Pressure With Autometers Ultra-Precise Bourdon Tube Meter Movement, The Standard For Accuracy And Durability In The Industry For Generations. A Simple 1/8" Npt Pressure Connection Requires No Electrical Hookup For Operation. An Optional Blower Memory Kit Provides A One Way Check Valve For Peak Recall After Your Run.
Features & Benefits
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- Autometers Race Proven Mechanical Instruments Provide Trusted Accuracy While Being Simple To Install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8" nylon line, 1/8" NPT compression fittings, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
-
Range: 0-60 PSI
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
-
Includes Tubing: 10 ft. nylon tubing
-
Cup/Hole Size (in): 2-5/8"
-
Outer Bezel Diameter: 2-7/8"
-
Includes Bulb & Socket: Part # 3211
-
Includes Mounting Hardware: Part # 3245
-
Cup/Hole Size (mm): 66.7mm
-
Dial Color: Black
-
Bezel Color: Brushed Aluminum
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Series: PRO-COMP
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: Super Bezel
-
Lighting Color: White Incandescent
