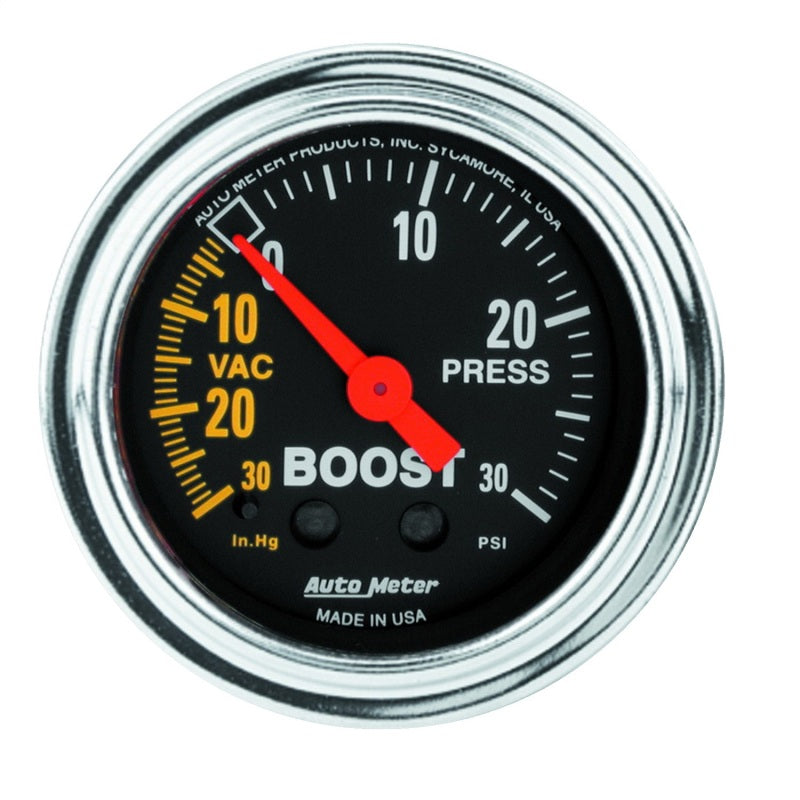

The Standard In The Industry, Autometers Mechanical Boost/Vac Gauges Have Found Their Way Into More Builds Than Any Other. Using A Patented, High Precision Bourdon Tube Meter Movement, There Isnt Another Gauge On The Market That Can Lay Claim To The Levels Of Accuracy Or Durability You" Ll Find Here. A Simple 1/8" Npt Pressure Connection Requires No Electrical Hookup For Operation. Includes 1/8" Npt Fittings And Nylon Line Kit.
Features & Benefits
- Autometers Race Proven Mechanical Instruments Provide Trusted Accuracy While Being Simple To Install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8" nylon line, T-Fitting, vacuum fitting, compression fittings, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Mechanical movements provide accuracy and durability even in the harshest environments
Specifications
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
-
Includes Tubing: 10 ft. nylon tubing
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-5/16"
-
Includes Mounting Hardware: Part # 2230
-
Range: 30 IN HG/30 PSI
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Dial Color: Black
-
Gauge Type: Boost/Vacuum
-
Bezel Color: Chrome
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: SAE
-
Series: TRADITIONAL CHROME
-
Lighting Color: White Incandescent
