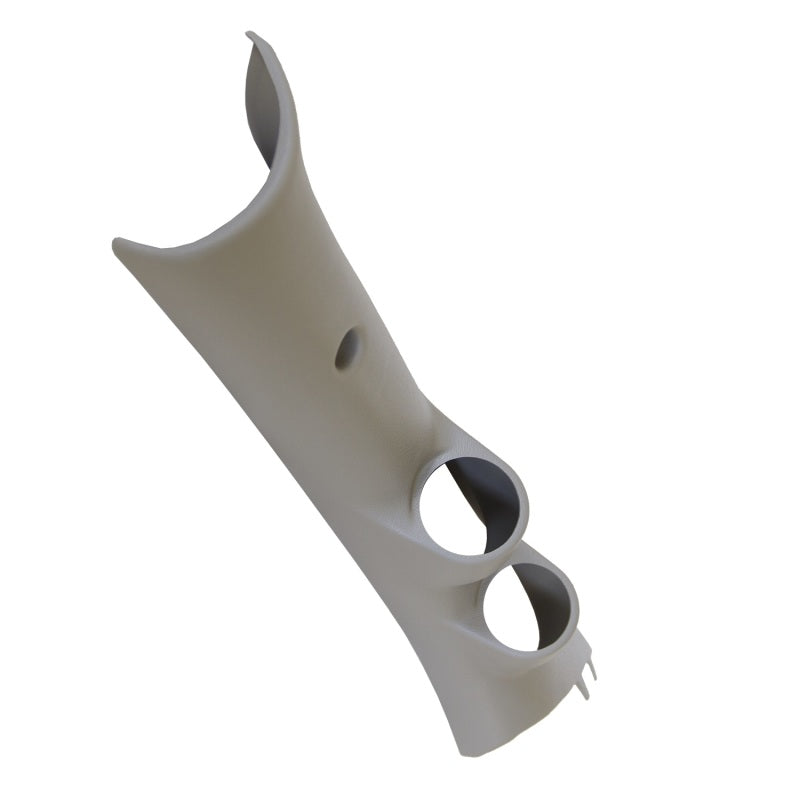

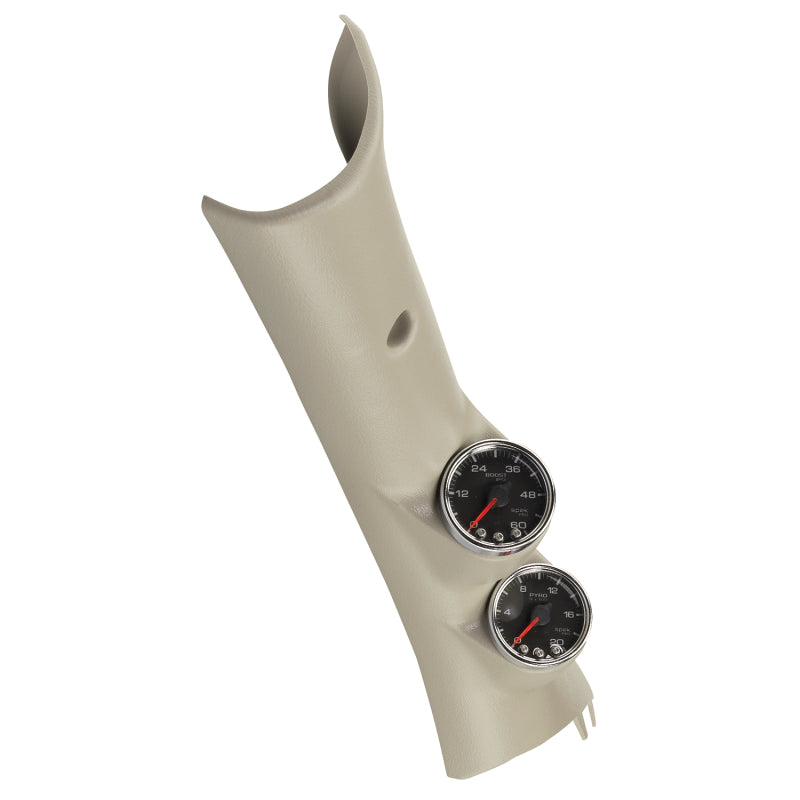

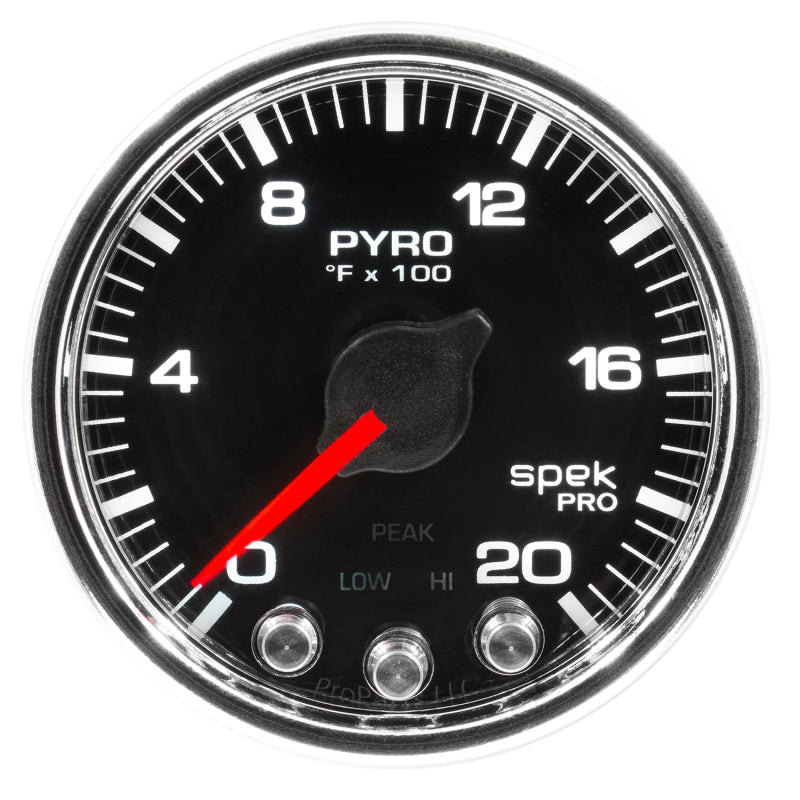

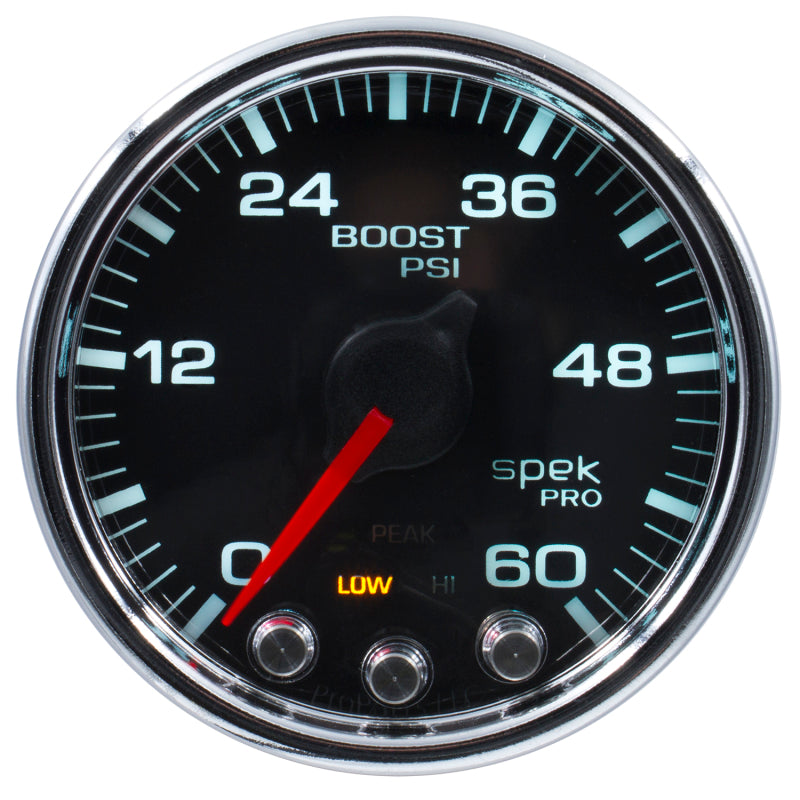

AutoMeter has brought together the most popular diesel gauges into a complete, ready to install pillar kit. The kit includes a pyrometer (EGT), boost gauge, and gauge pillar mount.
Features
- 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
- Configurable "High" and "Low" warnings using three on-instrument-face buttons
- Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
- Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
- Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
- Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
- Precision 280 brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.
Specifications
-
Range: 0-60 PSI/0-2000 °F
-
Cup/Hole Size (in): 2-1/16"
-
Cup/Hole Size (mm): 52.4mm
-
Lighting Color: 7 User Selectable Colors
-
Bezel Color: Black
-
Dial Color: Black
-
Mounting: Direct Fit
-
Lens Style: Domed, Clear
-
Movement: Electric, Digital Stepper Motor
-
Pointer Color: Fluorescent Red
-
Lighting Type: LED
-
Includes Mounting Hardware: Part # P12467
-
Includes Sensor Unit: Part # P13113, P12709
-
Includes Wire Harness: Part # P19320, P19340
-
Gauge Type: Pillar Kit
-
Bezel Style: Spek Round Shoulder
-
Series: SPEK-PRO
