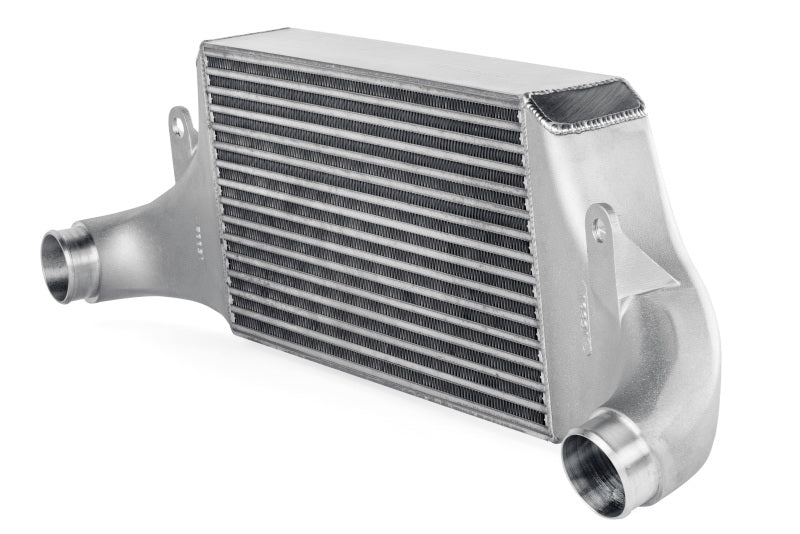

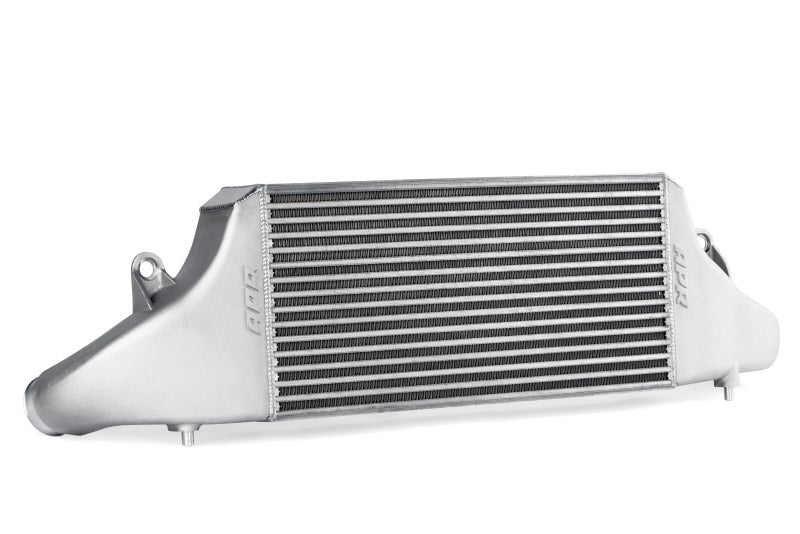

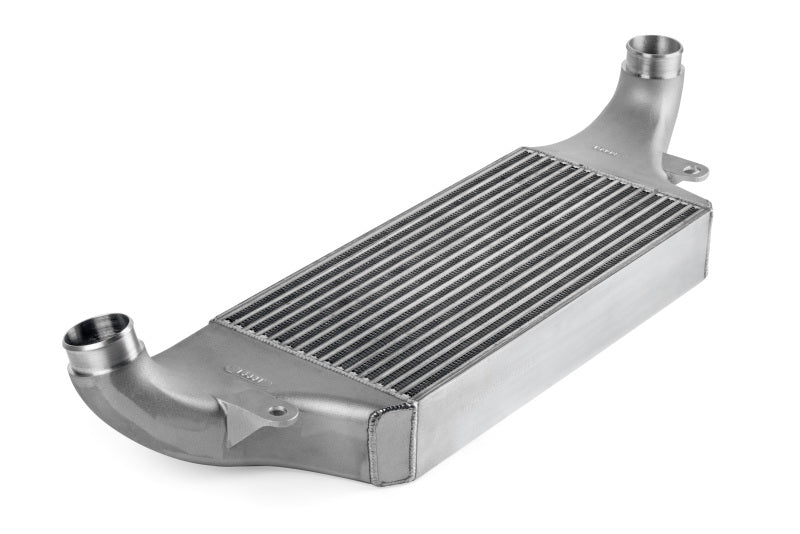

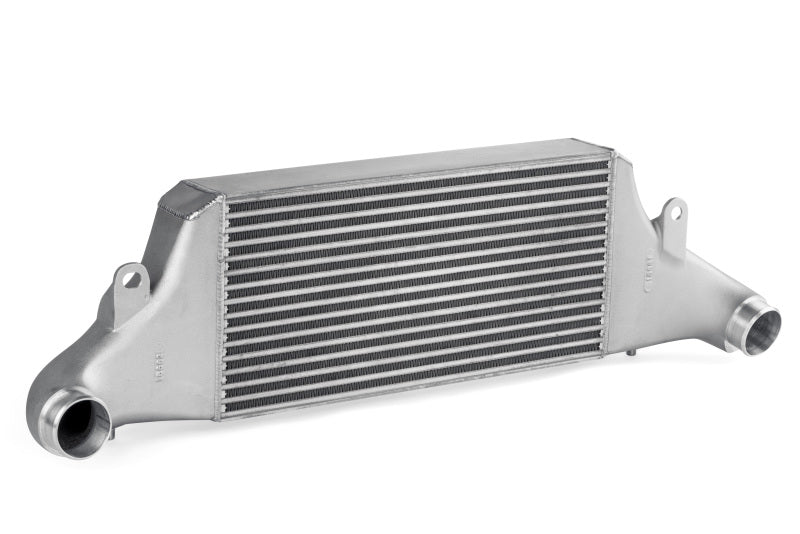

APR 18-22 Audi TT RS Quattro 2.5 TFSI EVO (TT RS) Intercooler Kit - IC100025

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.

• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Dynoed 26 AWHP over to the factory system (STG 1 93)!
• Effective cooling for more than double factory horsepower levels!
• Massive frontal surface area and core volume
• 6.38 Inch x 25.33 Inch x 3.16 Inch - 161.6 in front. & 510.67 in volume - OEM
• 10.4 Inch x 22.00 Inch x 3.50 Inch - 228.8 in front. & 800.8 in volume - APR
• Highly effective core design

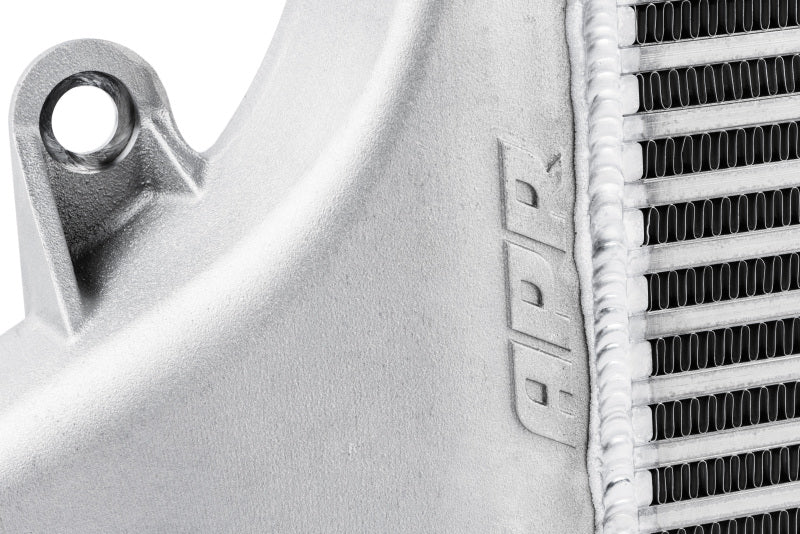

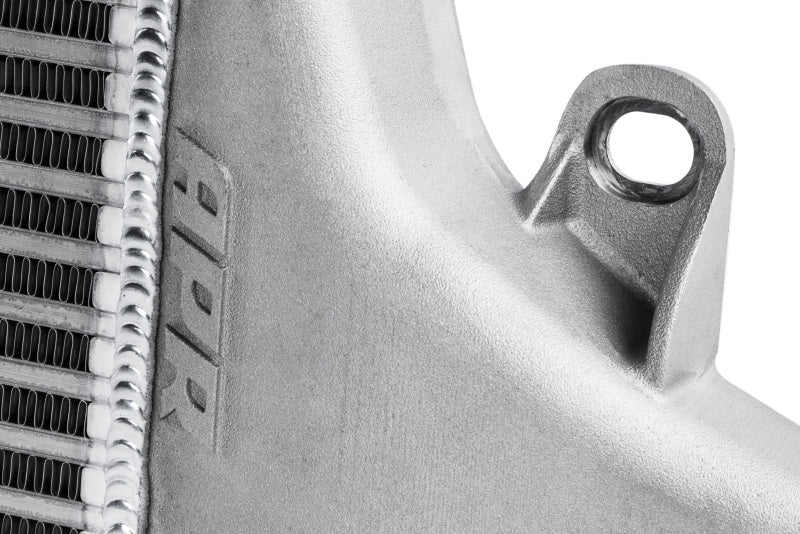

• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!

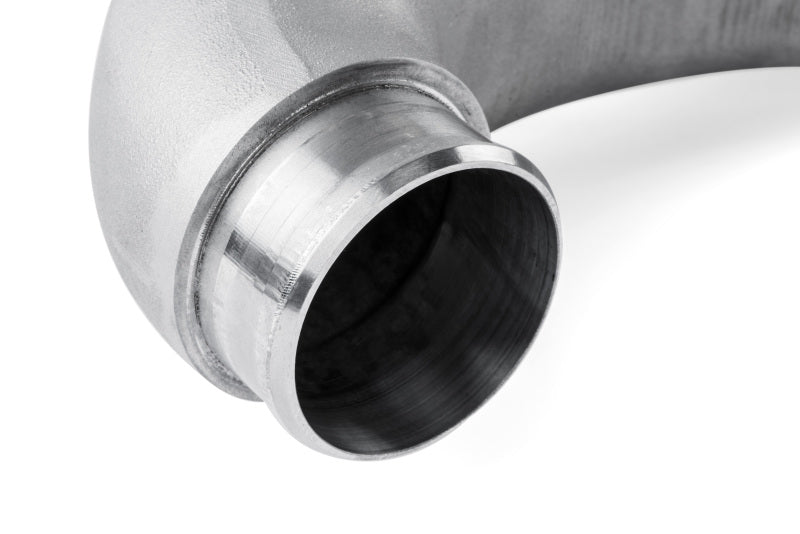

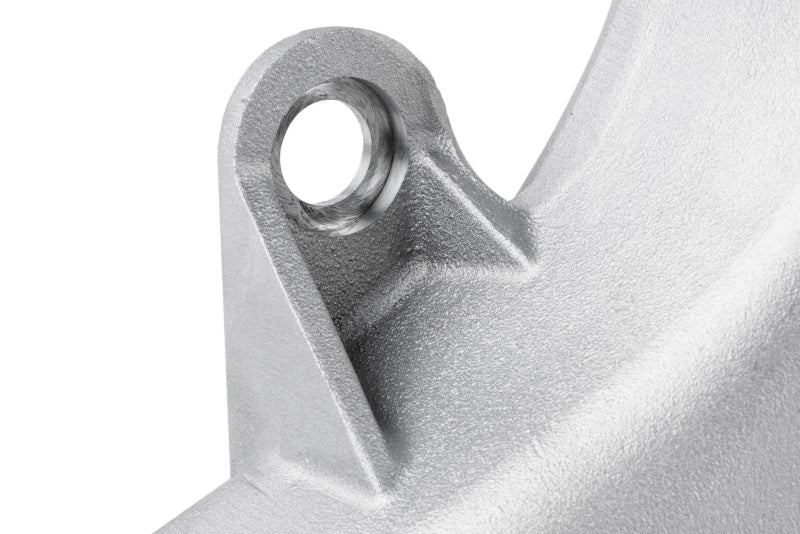

• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow.
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.

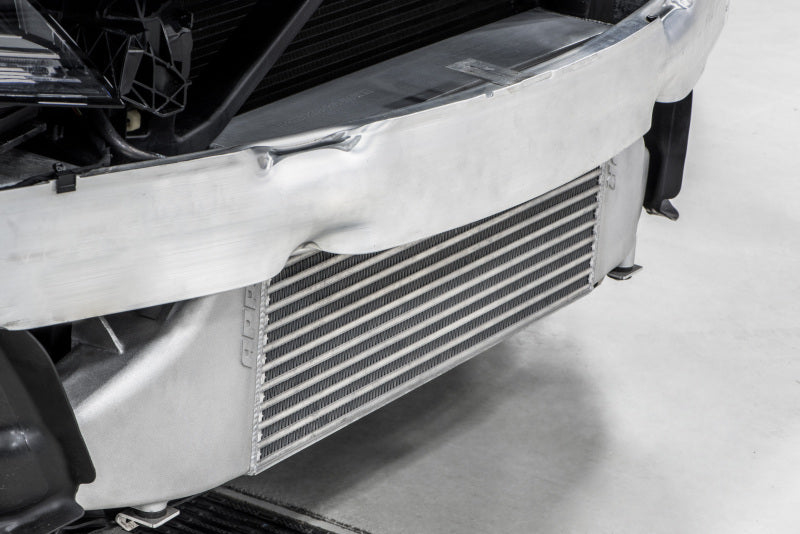

• Easy to install
• Simple plug-and-play design with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!

Details:

• Color: Silver / Natural
• Cooler Type: Air to Air
• Core Frontal Area: 228.80 Square Inches
• Core Height: 10.4 Inch
• Core Type: Bar and Plate
• Core Volume: 800.80 Cubic Inches
• Core Width: 22, 3.5 Inch
• Direct Fit: Yes
• Emission Code: 7
• End Tank Construction: Cast
• End Tank Material: 356-F Aluminum
• Product Type: Intercooler Systems
• Version: TT RS
• Welding Type: TIG
