Benefits
- Complete bolt on
- No cutting or trimming
- Uses factory mounting location
- Outlet connects to both the factory silicone, as well as the AMS intercooler
- AMS Charge pipe inlet is 20mm larger than the stock (85% larger)
- Stock charge pipe inlet is 37mm in diameter, AMS charge pipe is 57mm
- Stock charge pipe outlet is 53mm, AMS charge pipe is 57mm
- One piece tube with large radius bends to allow for better airflow
- AMS charge pipe is almost a half pound lighter than the stock charge pipe
- Comprehensive Installation Instructions can be found HERE

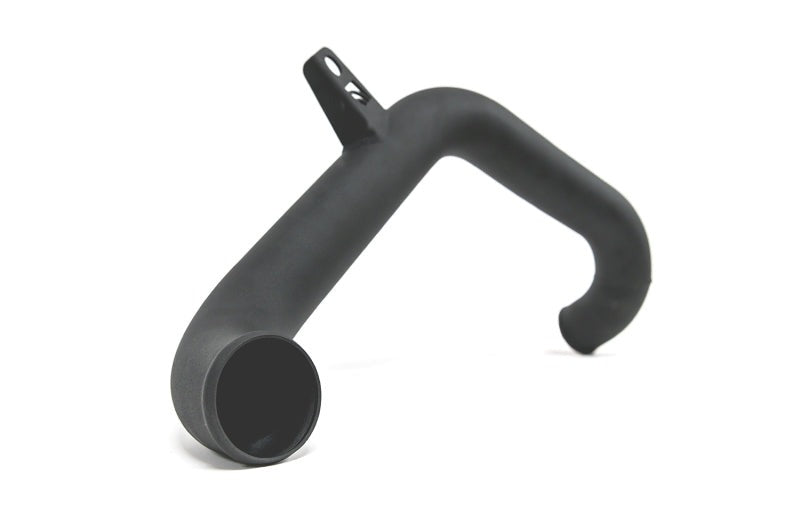

The AMS VW Golf R MK7 Turbo Charge Pipe
The AMS charge pipe’s one piece design with large radius bends, an 85% larger inlet, and almost 10% larger outlet removes the bottleneck in the charge air system. Our charge pipe is a complete bolt on kit that fits as good as the stock piece which means no cutting or trimming. The AMS charge pipe mates up perfectly to the AMS Golf R FMIC and future AMS turbo upgrade.
Platforms
15+ Audi A3/S3,
16+ Audi TT
15+ MK7 Volkswagon GTI/Golf
15-17 MK7 Volkswagon Golf R
Product Notes
- AMS charge pipe = 1.55 pounds
- Stock charge pipe = 1.95 pounds
- Comprehensive Installation Instructions can be found HERE
