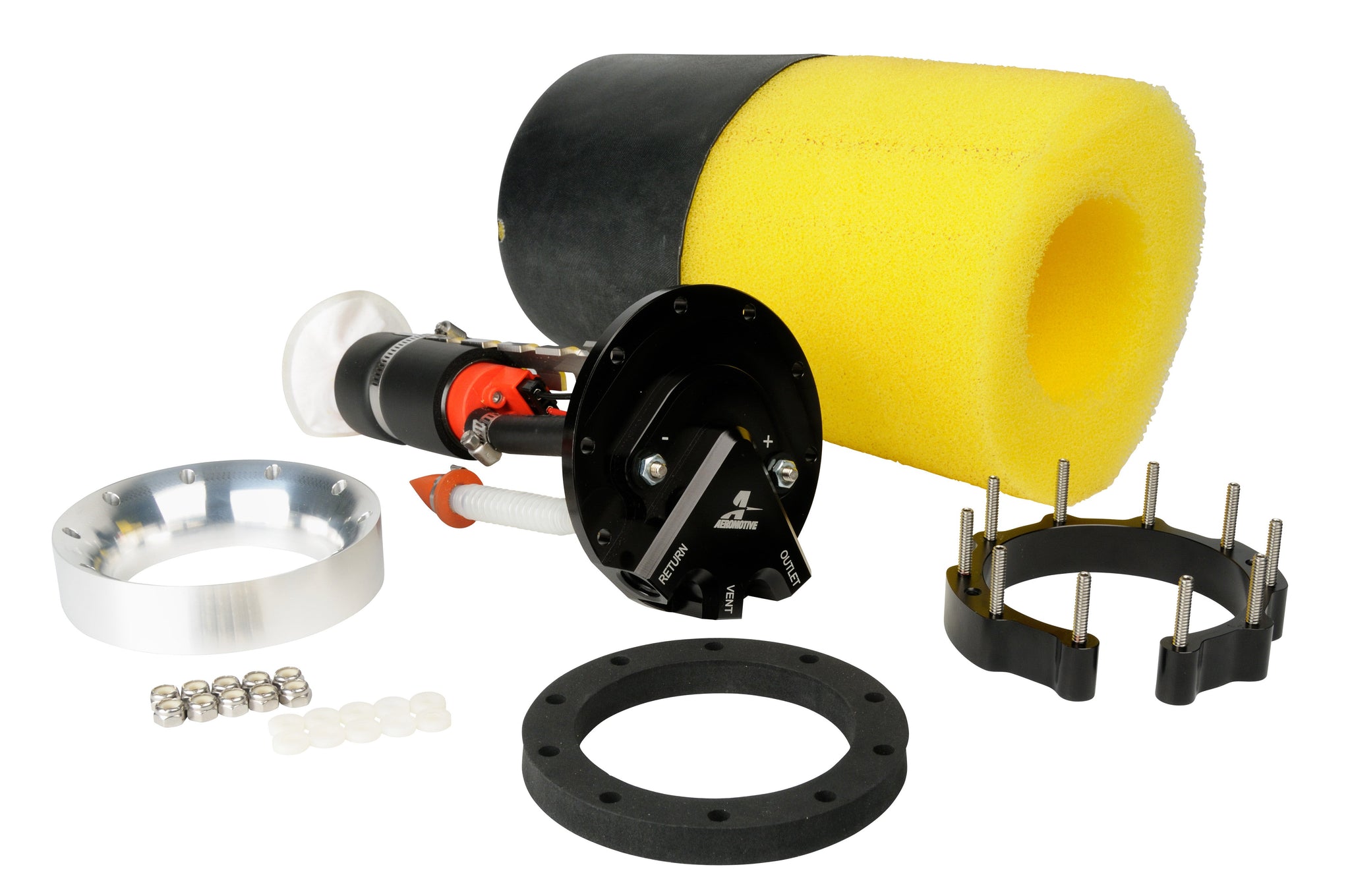

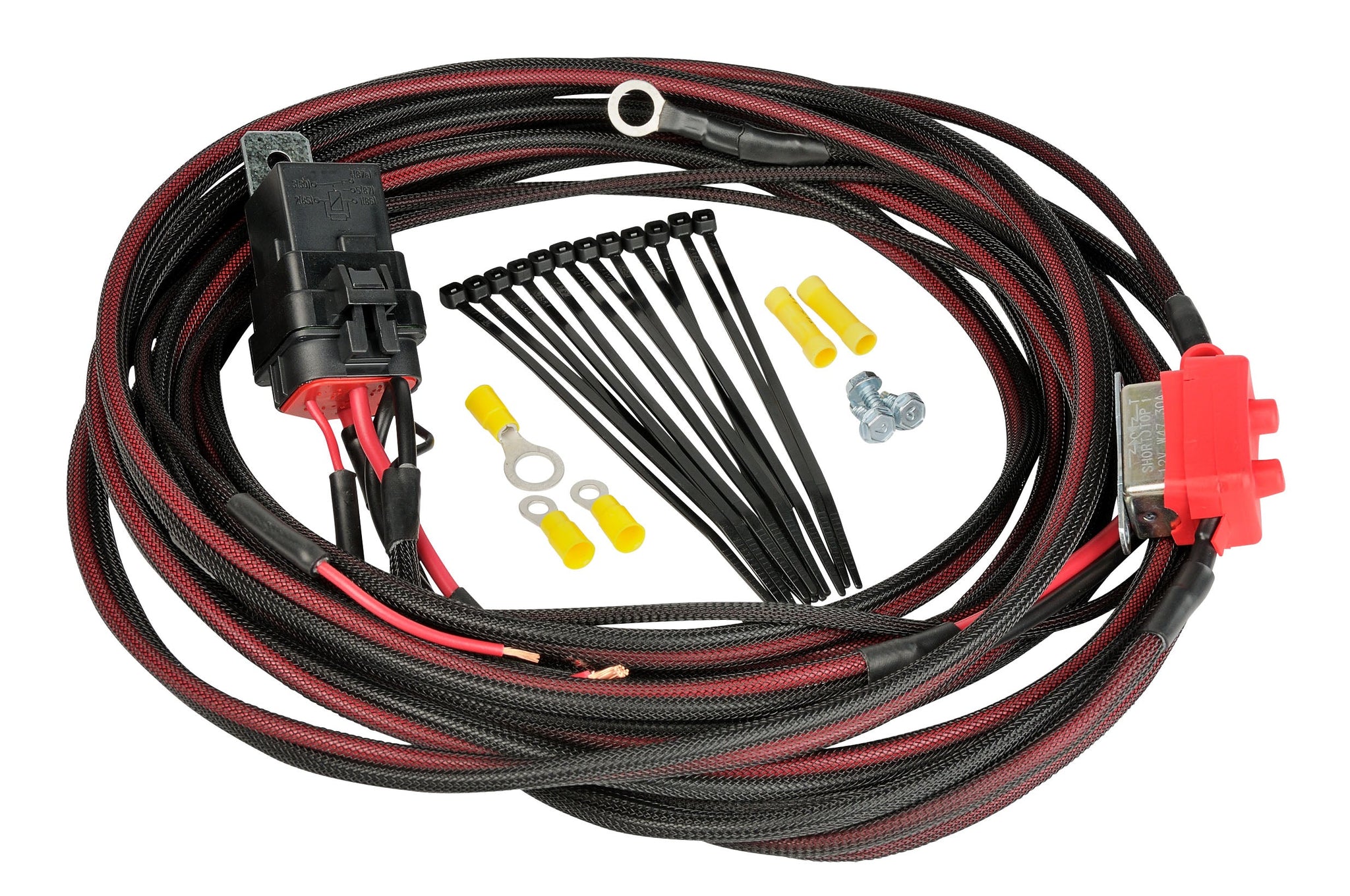

These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

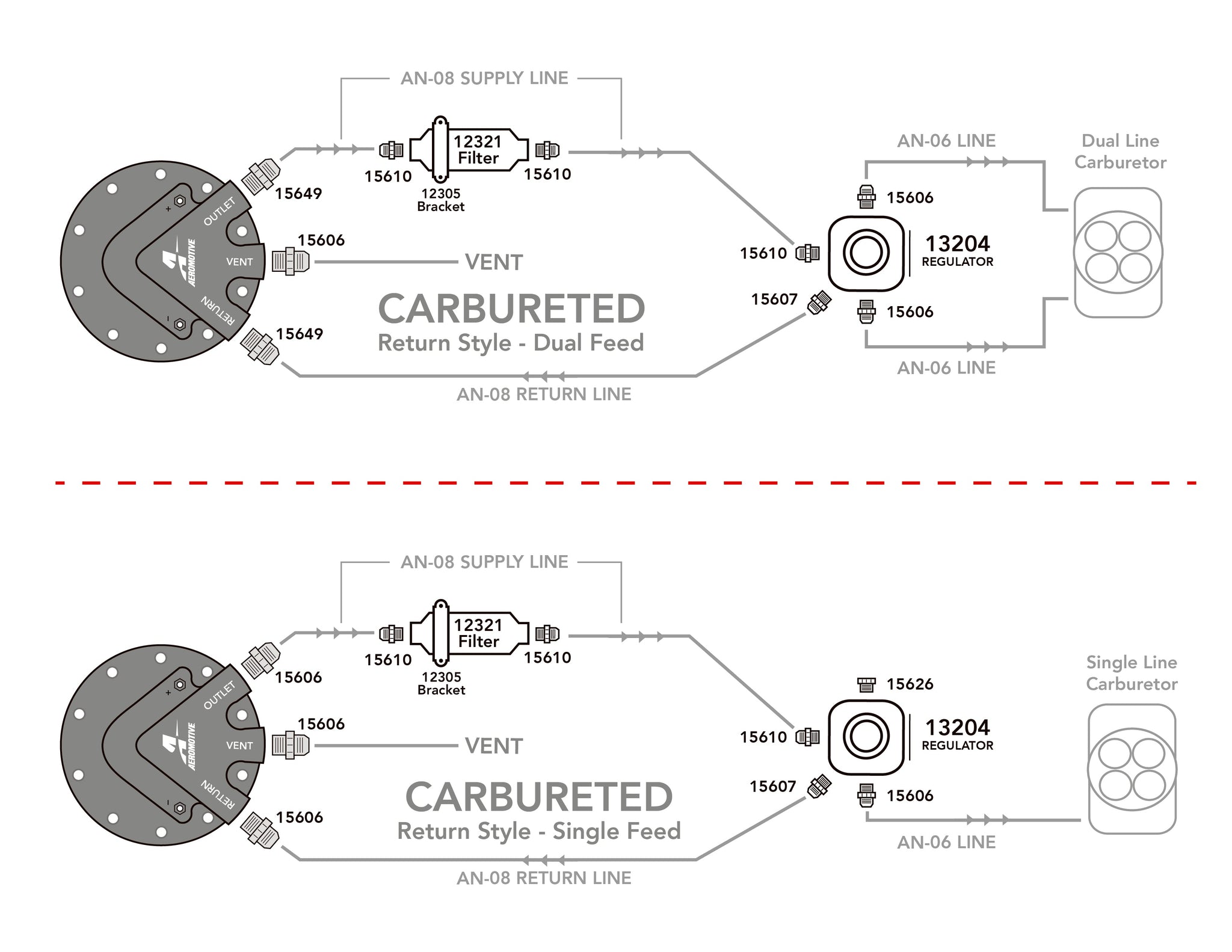

Ideal for naturally aspirated and blown, carbureted engines producing up to 900 plus flywheel Horse Power, on the street or at the track. AN-08 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.

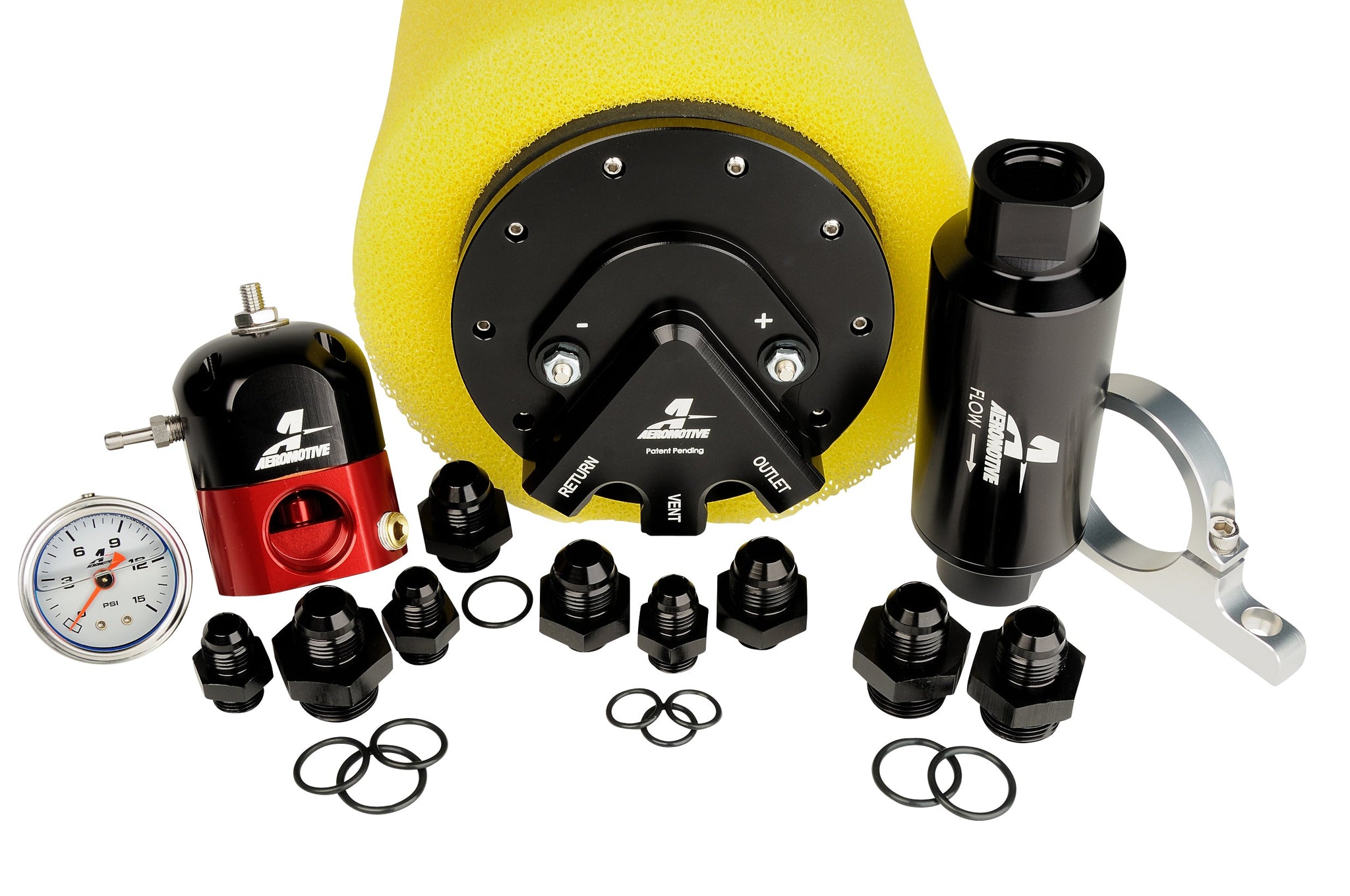

This kit contains the following parts: 1ea p/n 18688 Phantom 340 1ea p/n 12321 Filter 10 micron Paper 1ea p/n 12305 Filter Bracket 1ea p/n 13204 Regulator, ByPass, Carb. 1ea p/n 16307 Fuel Pump Wiring Kit. 3 ea p/n 15606 AN-06 ORB to AN-06 flare 1 ea p/n 15607 AN-08 ORB to AN-08 flare 3 ea p/n 15610 AN-10 ORB to AN-08 flare 1ea p/n 15626 AN-06 Port Plug 2ea p/n 15649 AN-06 ORB to AN-08 flare 1 ea p/n 15632 0-15 PSI Pressure Gauge
