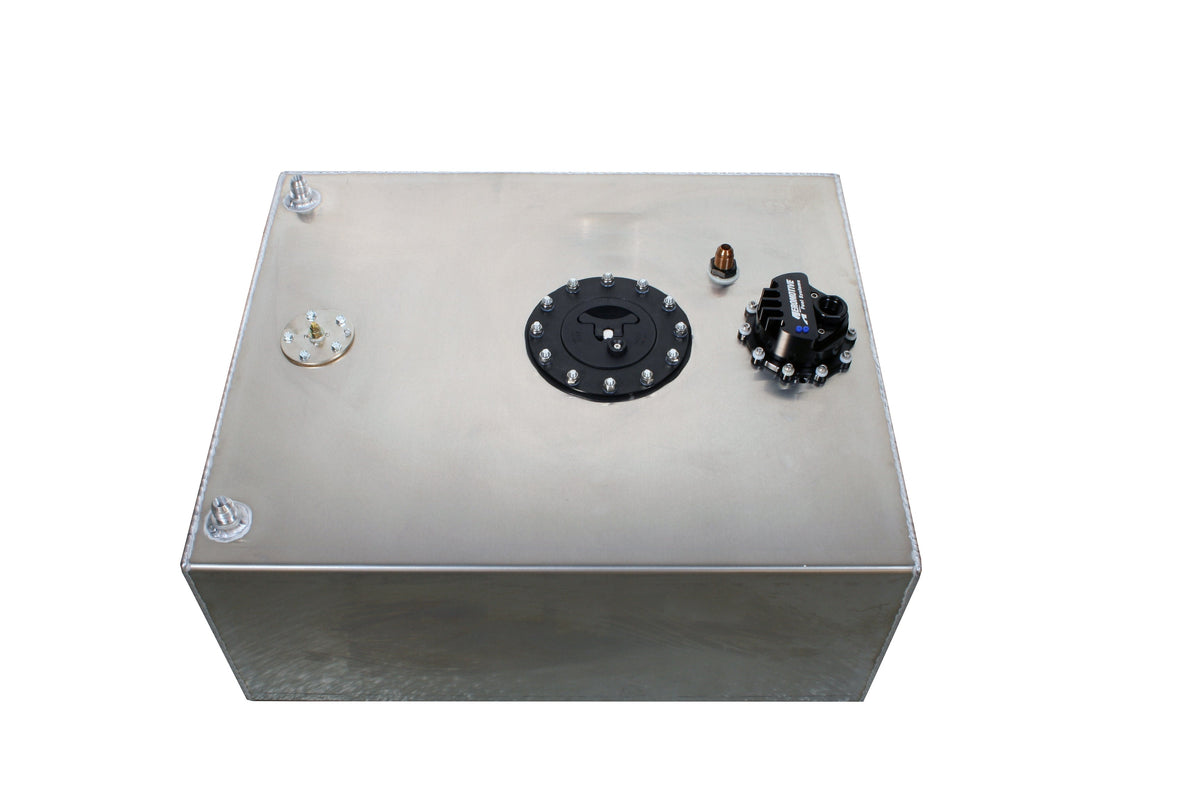

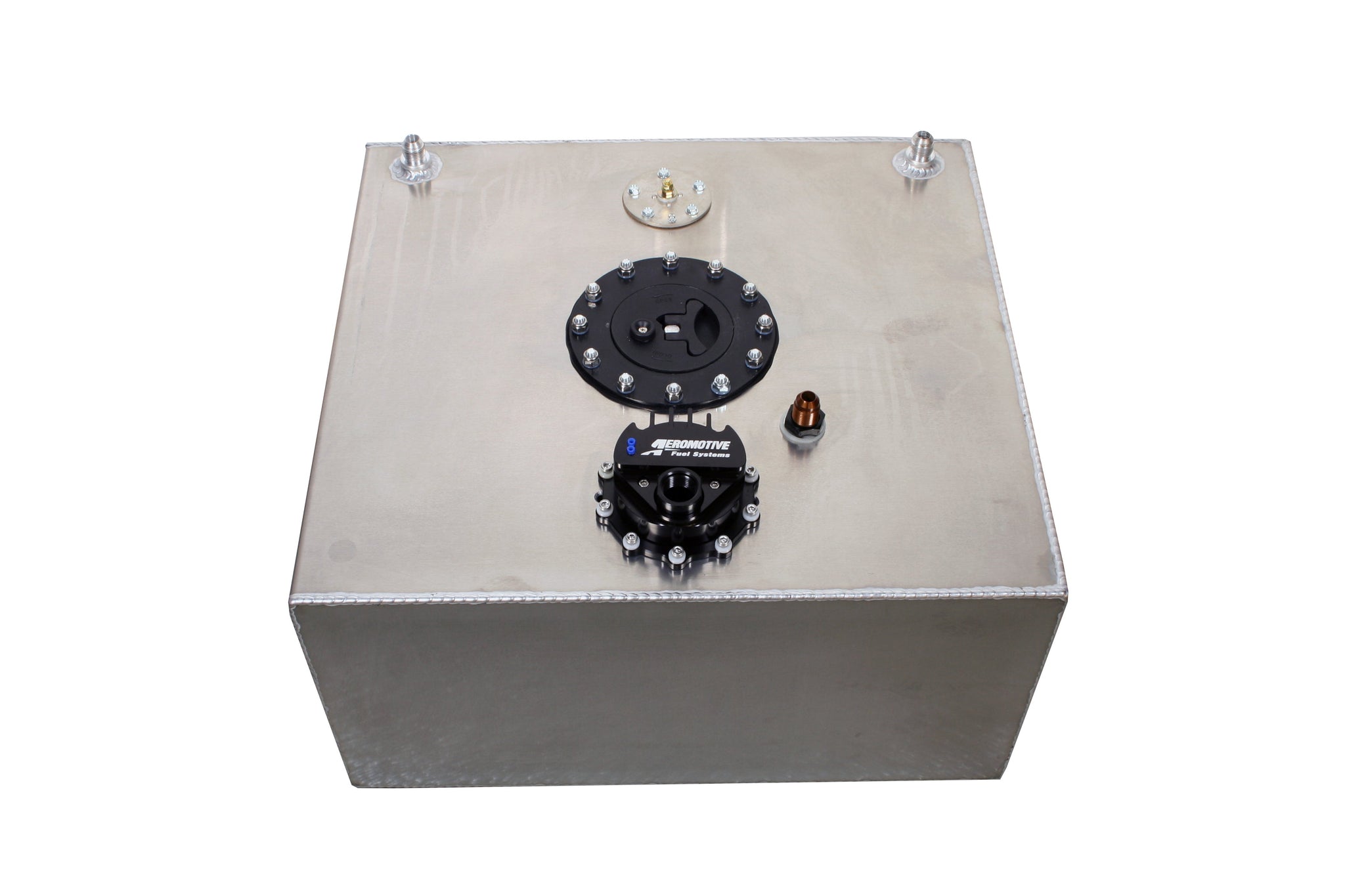

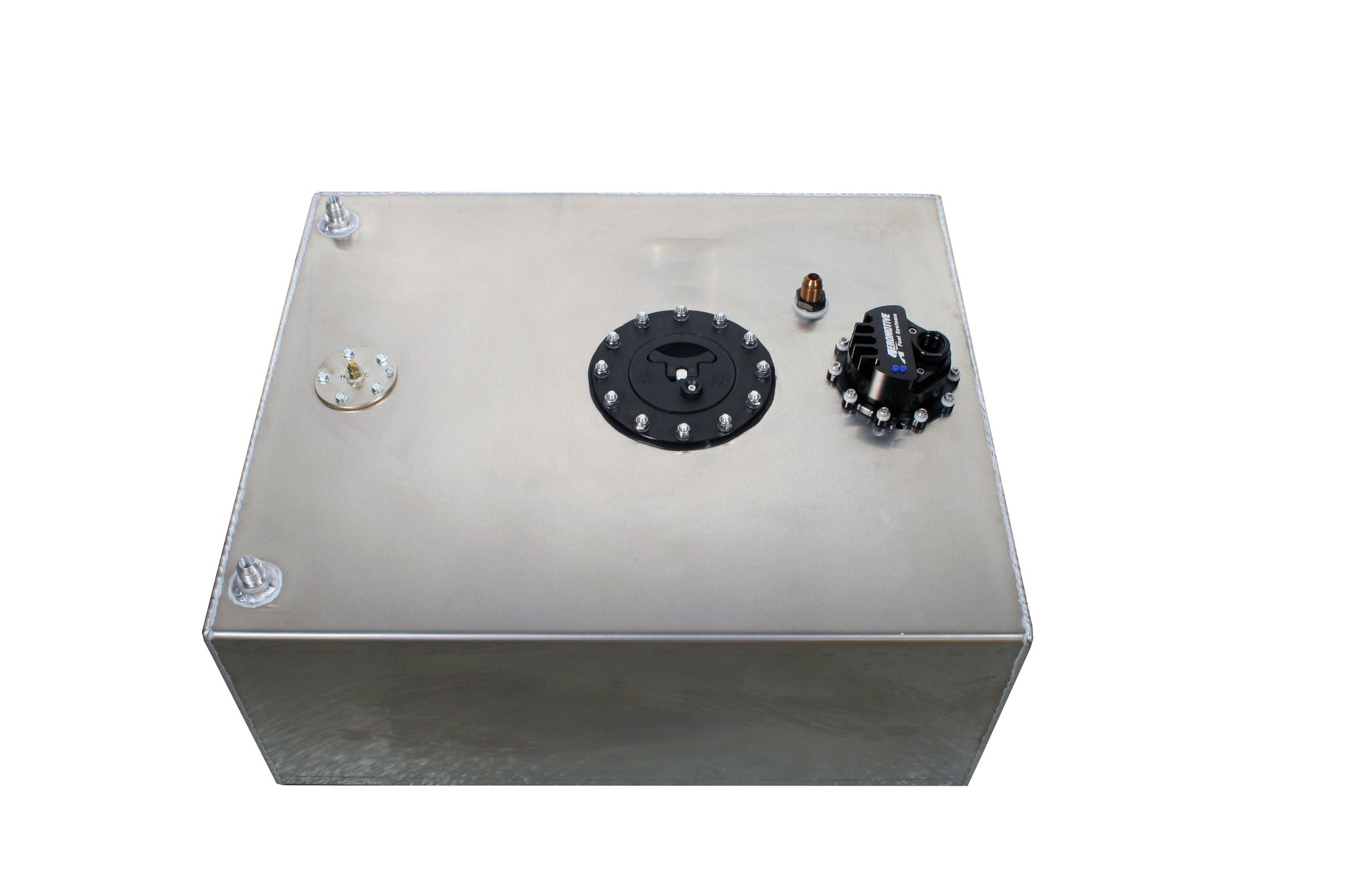

Aeromotive Fuel Cell - 15 Gal - Brushless A1000 - 18360

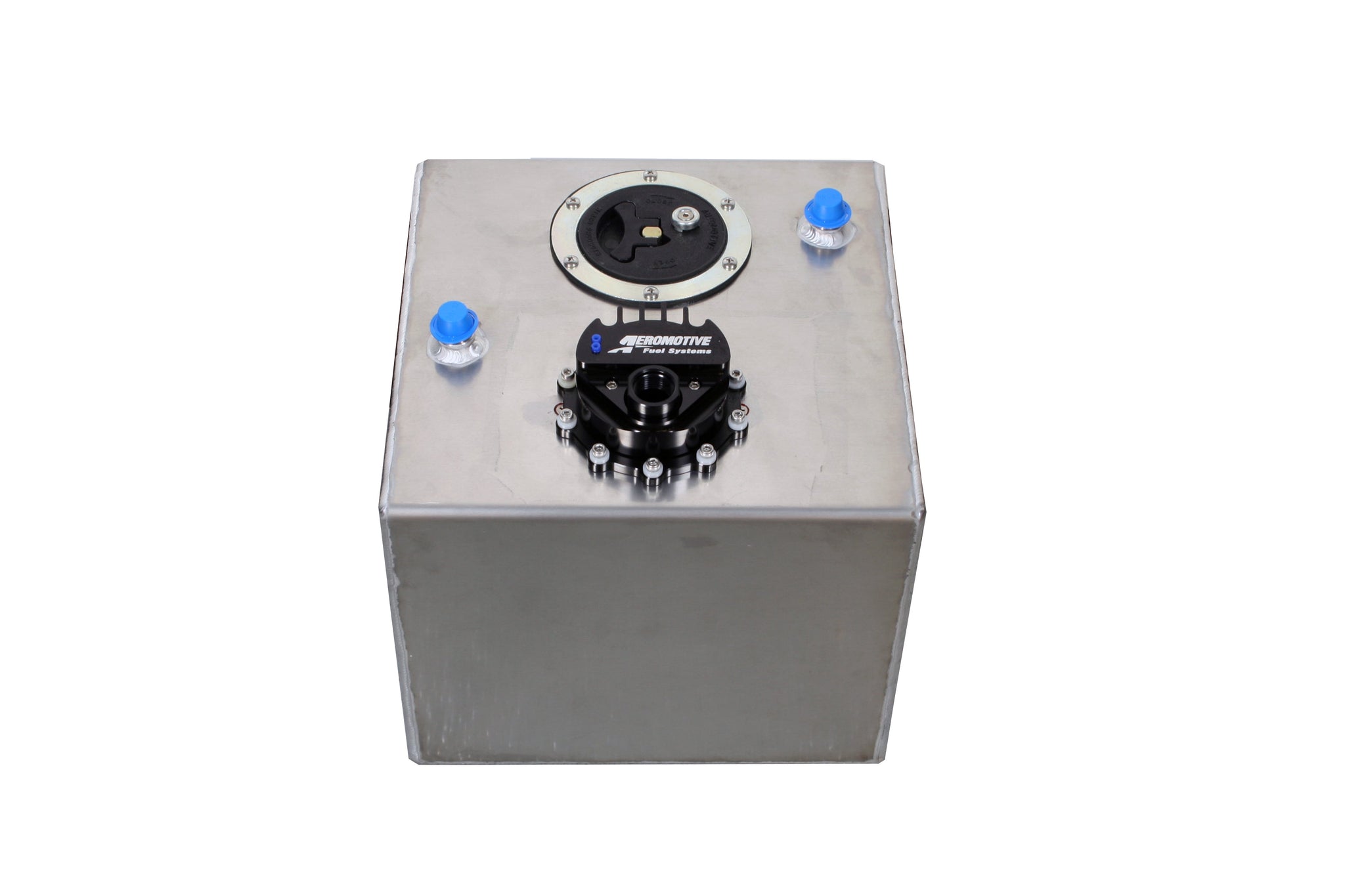

P/N 18366 (6 Gallon), 18360 (15 Gallon), or 18361 (20 Gallon) A1000 Brushless Stealth Cell
A1000 Performance Plus Advanced Technology

Racing Fuel Cell with Stealth A1000 Brushless Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.

• Baffled design keeps fuel at the pump inlet

• Fluted pickup with integrated 100-m prefilter

• Dimensions:
  • 6 Gallon: 12" W x 12" L x 10" H
  • 15 Gallon: 20" W x 18" L x 10" H
  • 20 Gallon: 20" W x 24" L x 10" H

• The A1000 performance you expect and more:

  • Fuel Injected Engines: GAS
    up to 1300 FWHP - naturally aspirated
    up to 1000 FWHP - forced air induction
  • Carbureted Engines: GAS
    up to 1500 FWHP - naturally aspirated
    up to 1200 FWHP - forced air induction
  • Fuel Injected Engines: E85
    up to 910 FWHP – naturally aspirated
    up to 700 FWHP – forced air induction
  • Carbureted Engines: E85
    up to 1050 FWHP – naturally aspirated
    up to 840 FWHP – forced air induction
• Lighter than the traditional A1000 pump.

• Reduced current draw at higher, EFI pressures.

• Extended service life in methanol and ethanol.

• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

• Quieter than the traditional A1000 pump.

• ORB-10 outlet port.

• Requires straight 12-VDC to 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.

• Not compatible with pulse modulated systems or fuel pump speed controllers.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts
