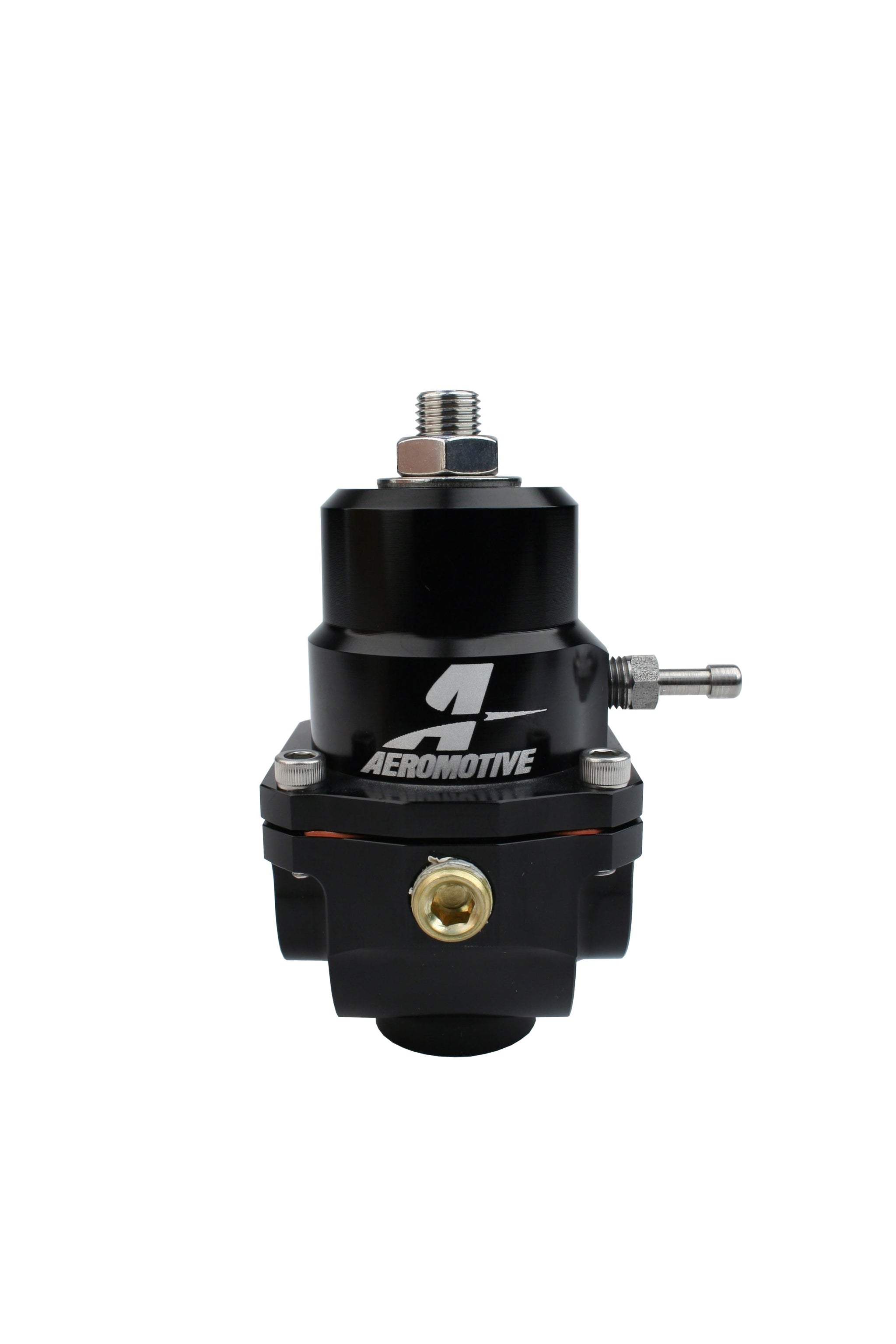

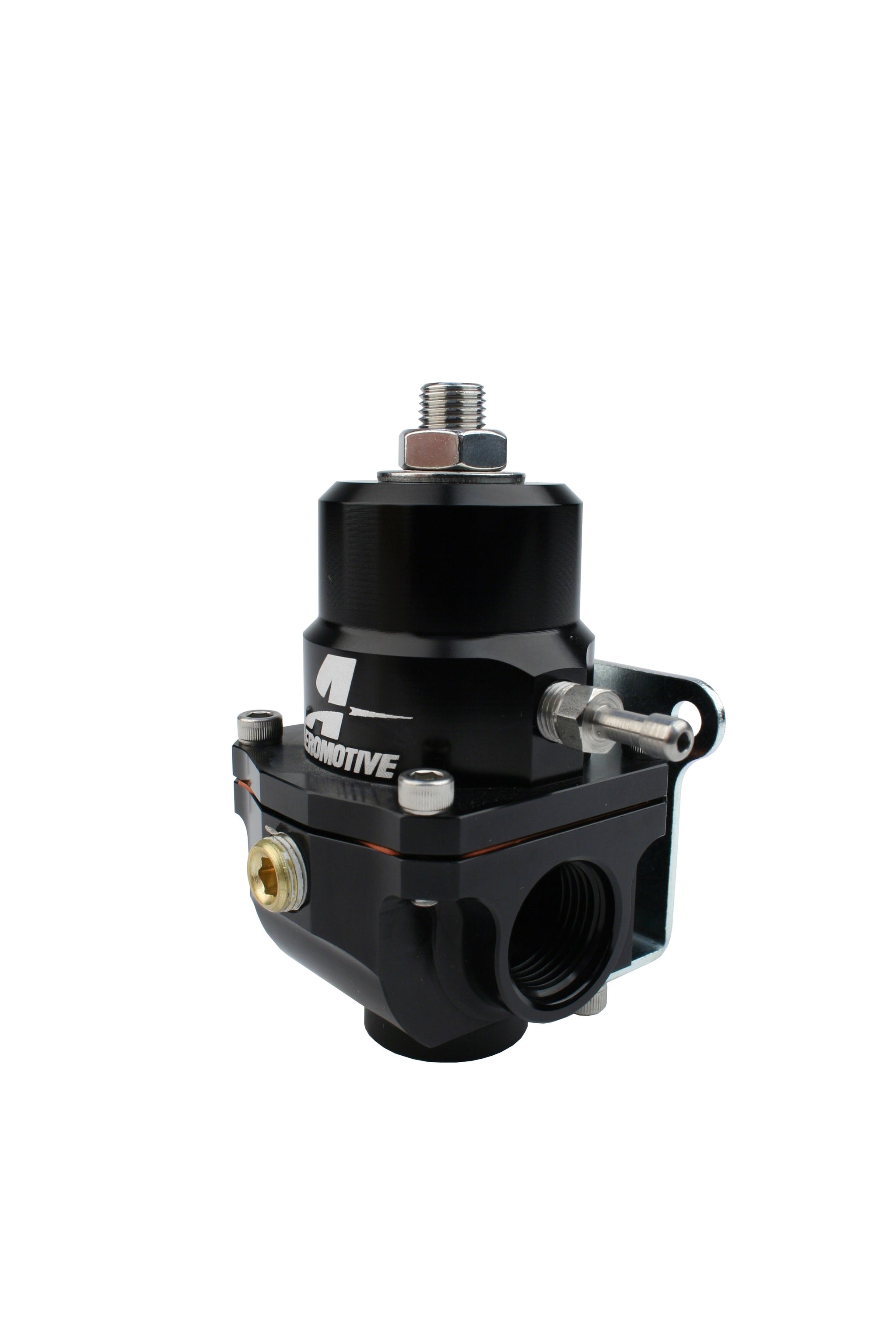

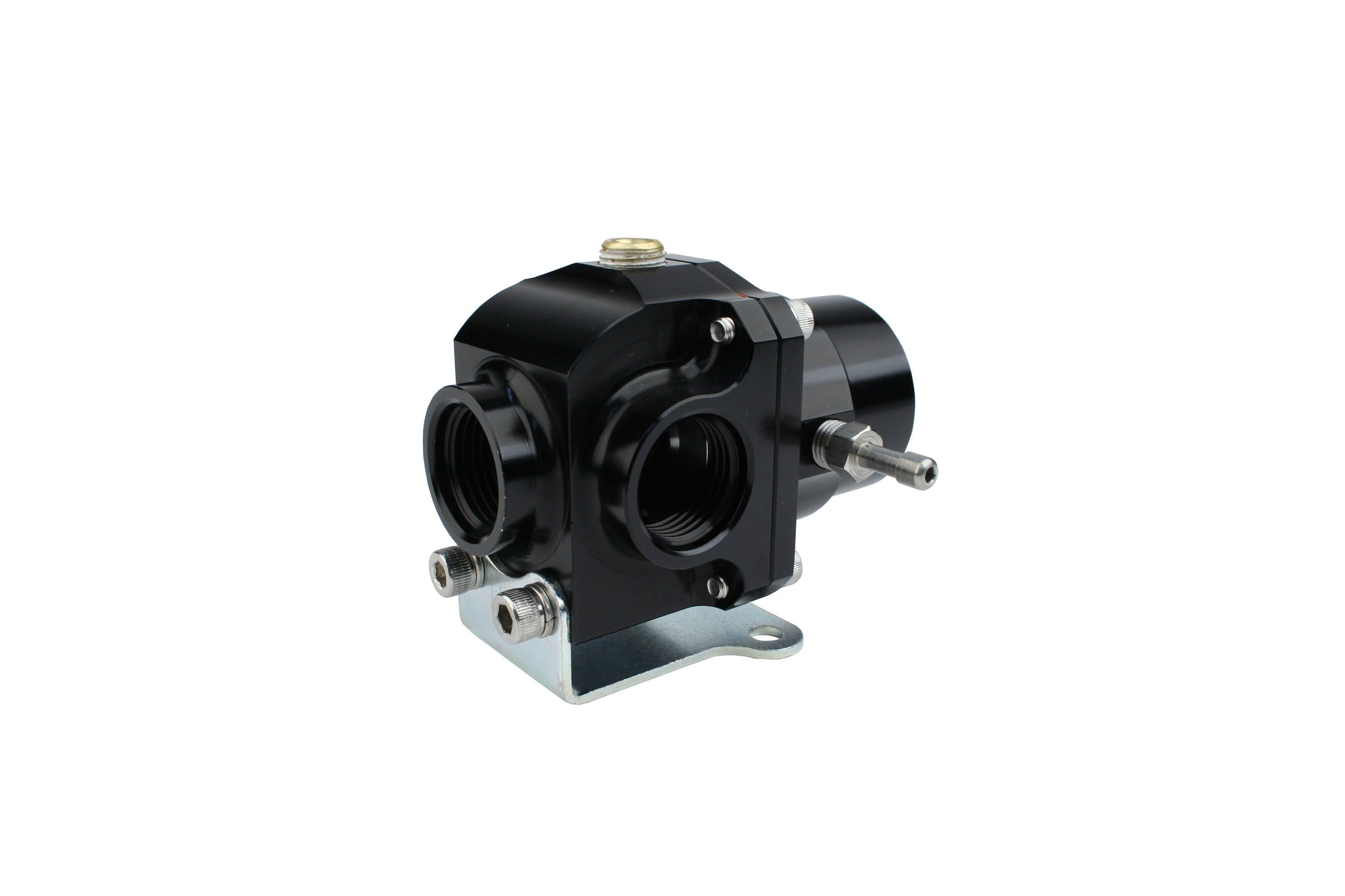

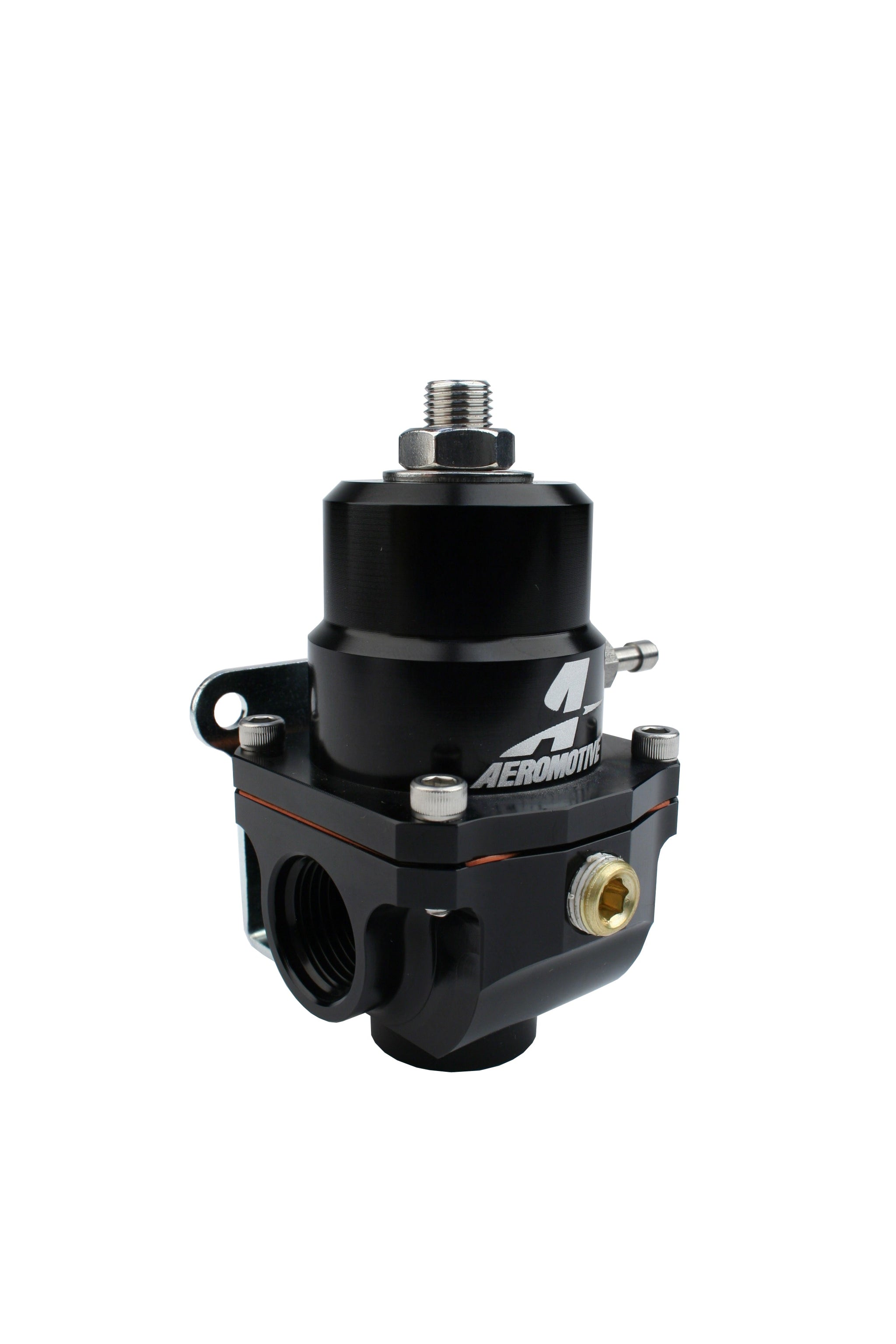

Aeromotive Adjustable Regulator - 3-15PSI - .313 Valve - (2) -08 Inlets/ -08 Return - 13304

SKU: SKU: AER13304

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

P/N 13304 X1 Carbureted Return Style Regulator
Carbureted return style Regulator for Return Style Systems

  • Base fuel pressure adjustable from 3-20 PSI.
  • Vacuum/Boost reference capability.
  • 1:1 rising rate for blow-through carburetors.
  • Gasoline, ethanol, alcohol and diesel compatible.
  • 2 - ORB -08 inlet/outlet ports on the sides.
  • 1 - ORB-08 return port on the bottom port.
  • 1 - 1/8" NPT Gauge Port with plug.
  • 1/16" NPT Boost Port with 5/32" hose barb.
  • Compatible with both X1 EFI Conversion kits.
  • 0.313" return style with matching spring and poppet.
  • Handles up to 150 GPH with AN-08 return line.
  • Suitable for any Aeromotive pump up to A1000.
  • Mounting bracket included (not shown).
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring

P/N 13014 150 GPH 0.313" Carb Service Kit
P/N 13013 150 GPH 0.188" EFI Conversion Kit
P/N 13015 250 GPH 0.313" EFI Conversion Kit
