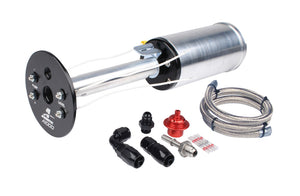

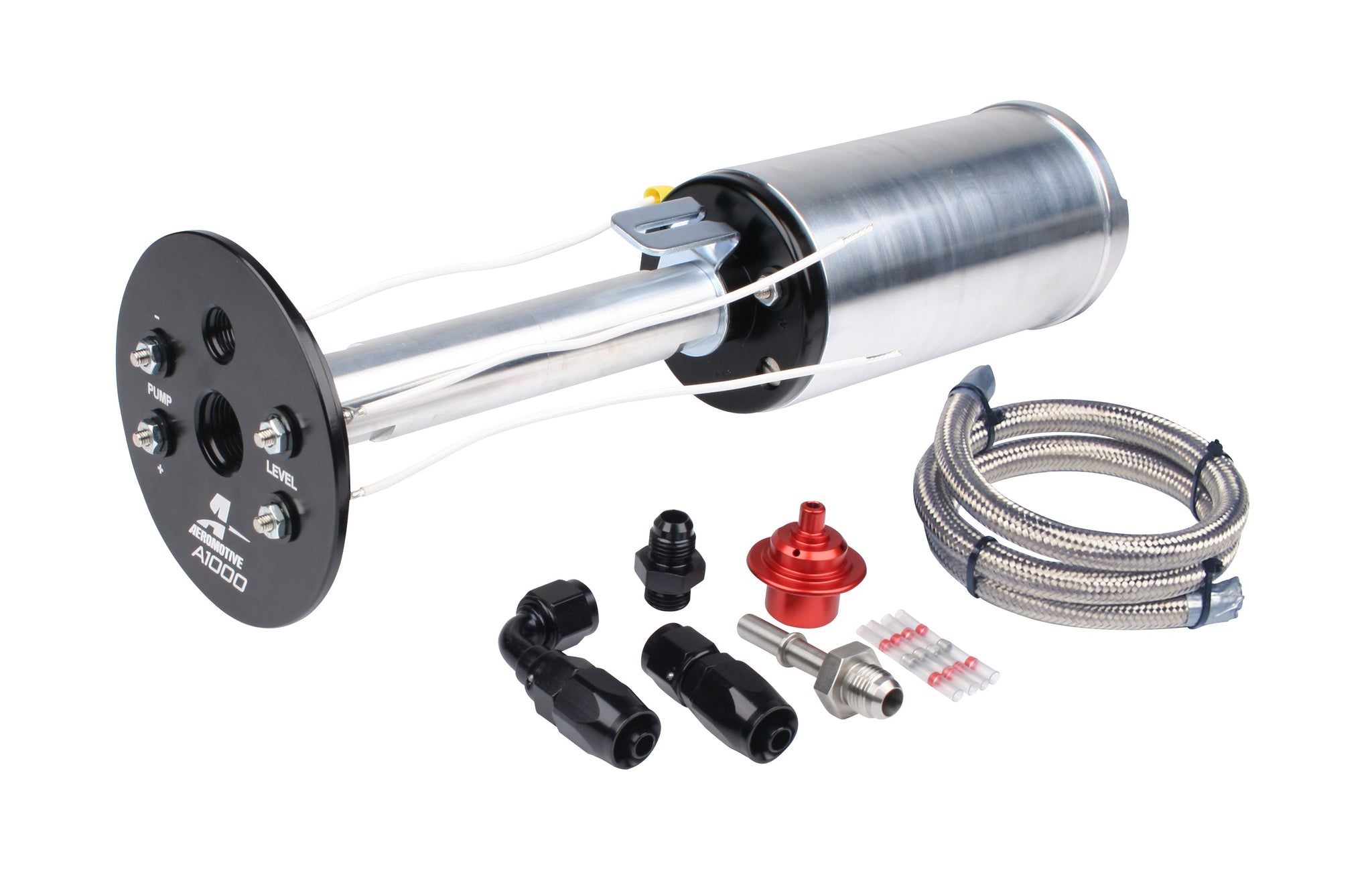

Finally, a solution to your Corvette's fuel system needs. No more drilling your fuel tanks, no more risking pump failure in a 1, 2, or 3 pump set ups, no more surge tanks, no more mess. Aeromotive has engineered a patent-pending, complete drop-in fuel system available for C6 and late C5 Corvettes. The system provides a single A1000 Fuel Pump capable of supporting big HP. The best part, it's a complete drop-in assembly into your factory tank that still incorporates the factory jet siphon system. Now you can plumb a true return-style system into your Corvette without the worry of the siphon system and while using the factory fuel tank. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For details on this system and the installation of the 18670 into your Corvette, download the installation instruction below.
- Fits 2003 1/2 and later Corvettes (Late C5 and C6)
- Supports up to 1300 HP ' naturally aspirated
- Supports up to 1000 HP ' forced air induction
- ORB-10 outlet port
- ORB-06 return port
- Incorporates factory jet siphon system and sending unit
- Includes an integrated 100-Micron Stainless Steel pre-pump filter
- Utilizes the factory tank, o-ring, lock ring and mounting location
- Includes all necessary fittings and hardware to plumb the pump into your tank.
- Remaining system plumbing not included. For recommendations on line sizes, filters, regulators and fuel rails, call our tech lines at: (913) 647-7300. Or follow the guidelines for the A1000 Fuel Pump.For A1000 (P/N 11101) specifications, CLICK HEREAdditional photos and videos can be foundHERE
