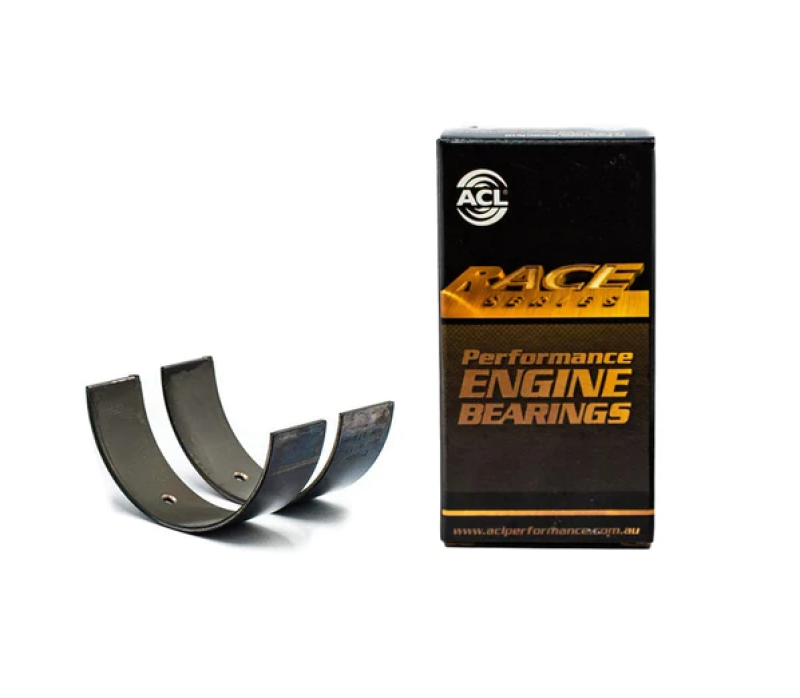

ACL Audi TTRS 2480cc Turbo 5cyl Standard Size High Performance Main Bearing Set w/.001 Oil Clearance - 6M5563HX-STD

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 63–63.019 mm (2.4803–2.4811 in)
• Journal Diameter: 57.958–57.978 mm (2.2818–2.2826 in)
• Maximum Wall Thickness at Crown: 2.491 mm (0.0981 in)
• Bearing Width (max): 15.5 mm (0.61 in)

Engine Applications

• Audi CEPA (EA855) 2480cc Inline5 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi CEPB (EA855) 2480cc Inline5 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi CTSA (EA855) 2480cc Inline5 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi CZGA (EA855) 2480cc Inline5 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi CZGB (EA855) 2480cc Inline5 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
