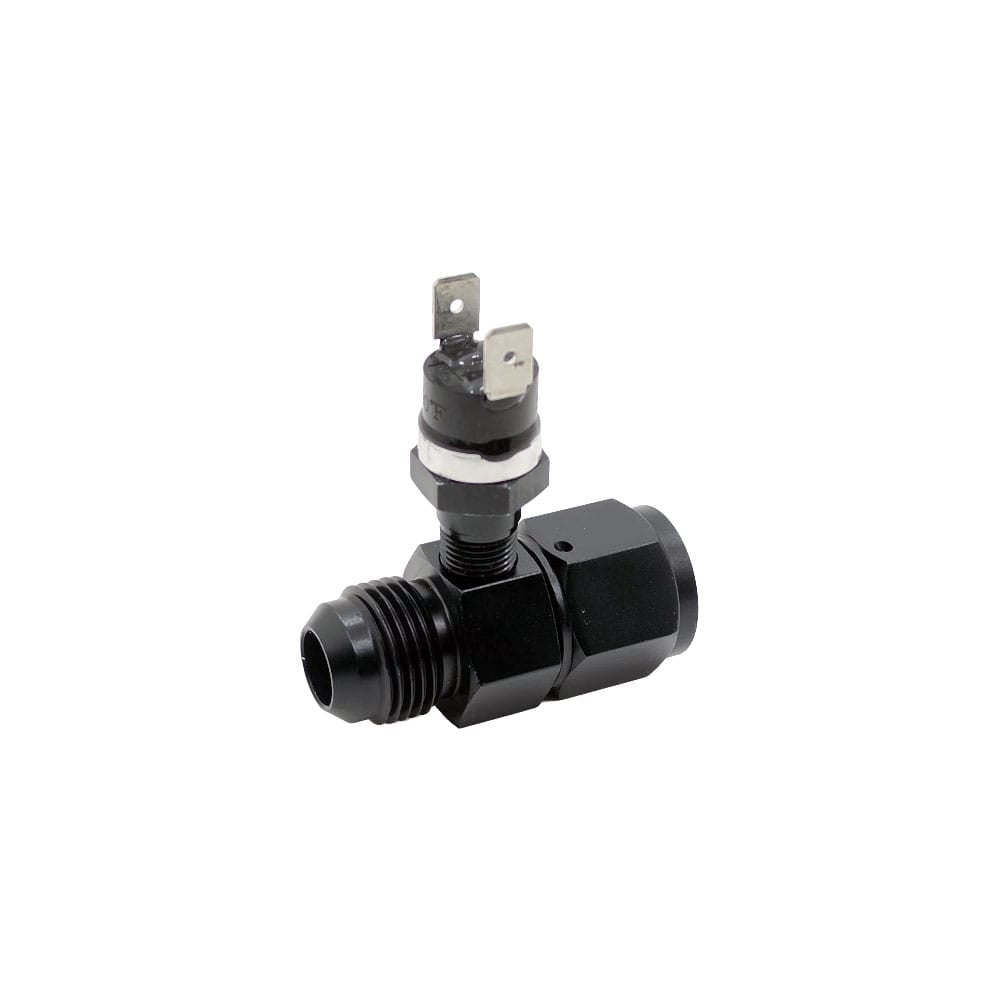

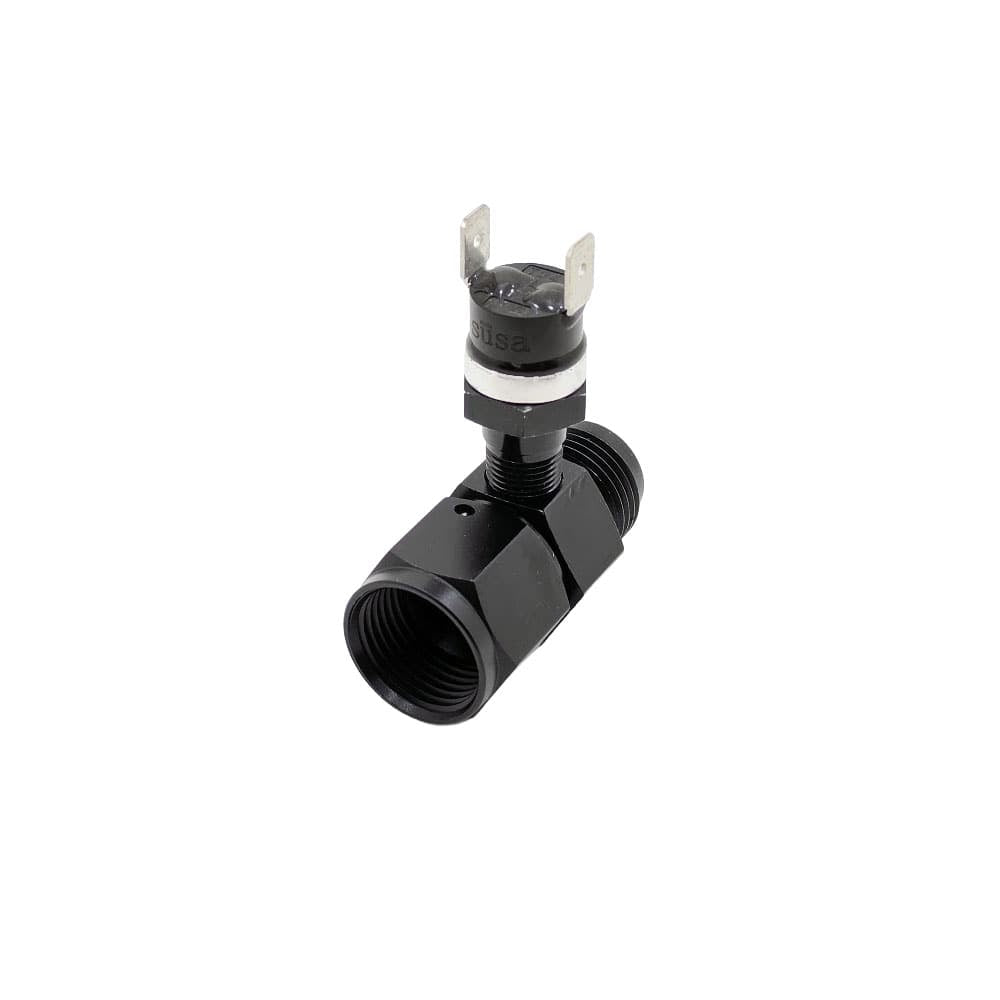

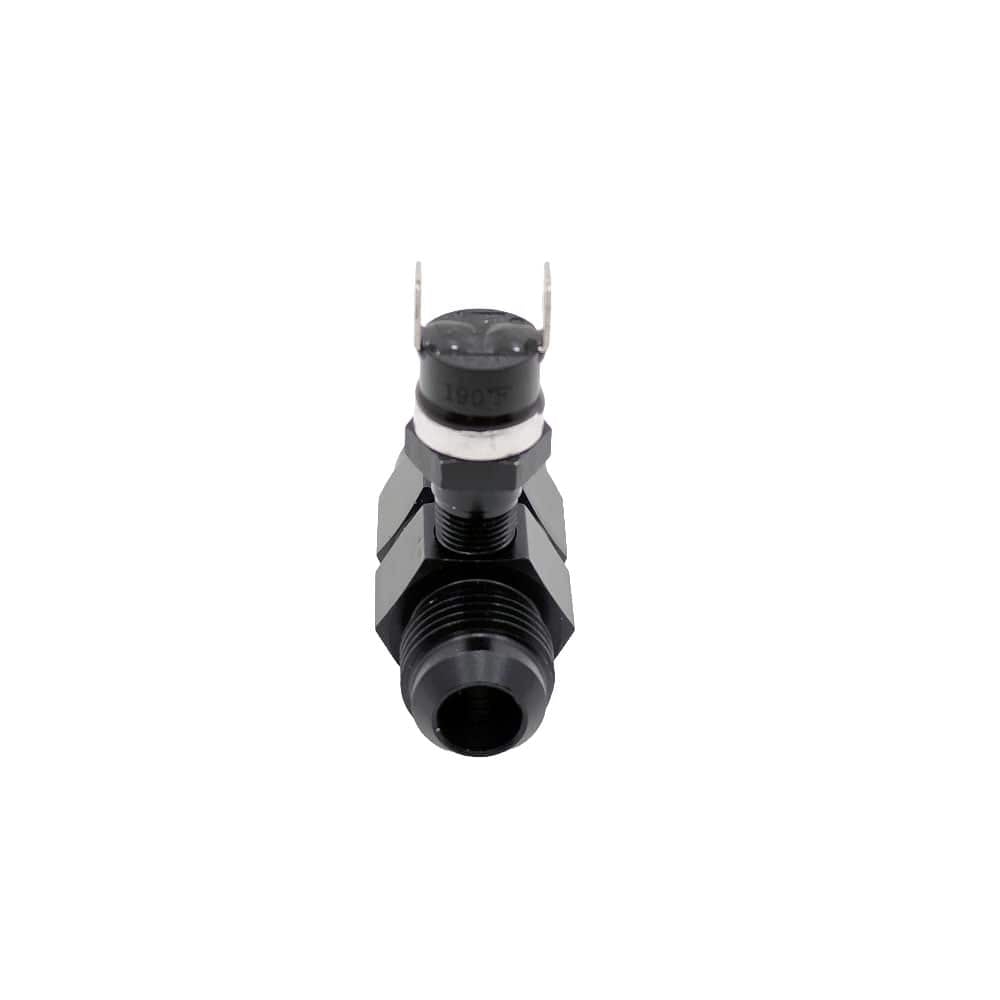

UPR - 8an Transmission Cooler Port Extension w/ TS180 Sensor 6R80/10R80 - 8202-16

     8an Transmission Cooler Port Extension w/1/8 NPT port and TS180 Thermal Switch allows you add a thermal switch to your transmission cooler adapter with 8an lines. If you transmission cooler adapter doesn't have an 1/8 port this is an easy way to add one or if you have a single 1/8 port and want to add a second switch or sensor. Great for controlling your electronic cooling fans or for datalogging fluid temps.

Setrab Thermal Switches are used to activate a 12V accessory at a prescribed temperature.

They are a normally open switch, so once the prescribed temperature is met, they will activate and continue duty until reaching approximately 15°F below the action temperature.

180* F

1/8-27" NPT Thread

Spade Terminal Connection

Product Features:

» 8an Female In/Male Out
» 1/8 NPT Sensor Port
» Comes with Setrab TS180 Switch
» Easy way to add a thermal switch to your Port Adapter with no 1/8NPT provisions
» Black Anodized Finish

Fits These Vehicles:

6R80, 10R80 Transmission from 2011-2025 Mustang and F150 with existing port adapter that uses 8an male fittings.
