SKU: SKU: S&B10-1003
Important Notes: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.

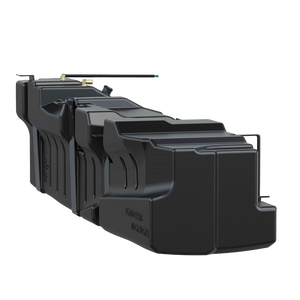

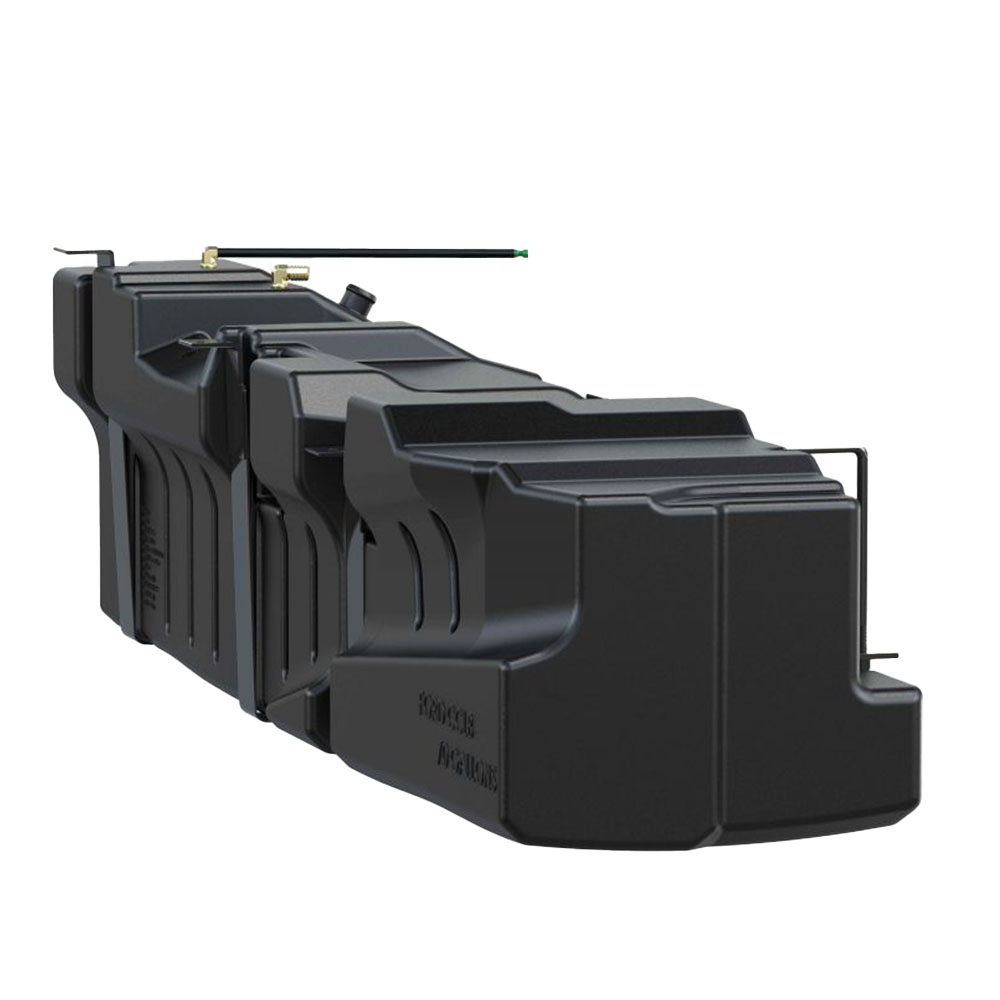

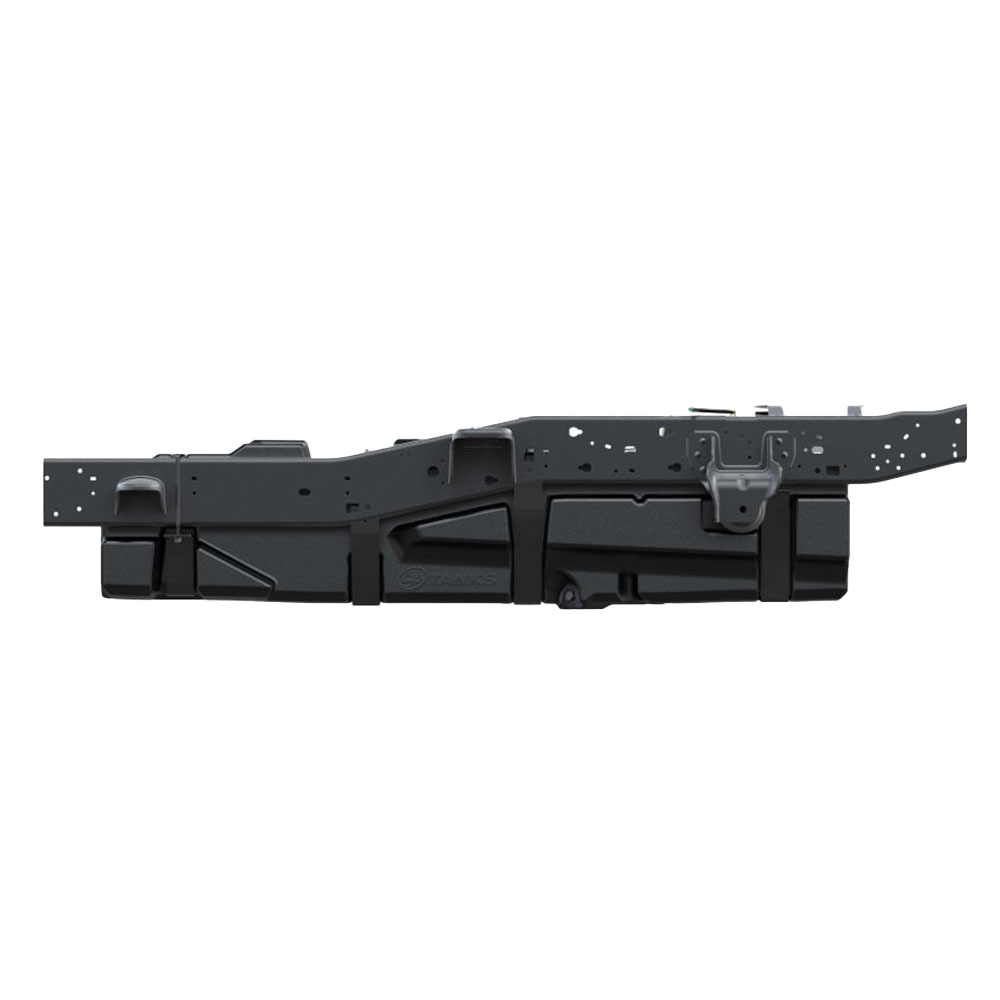

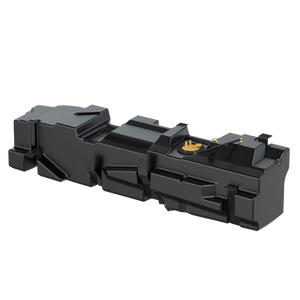

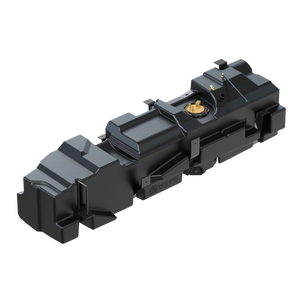

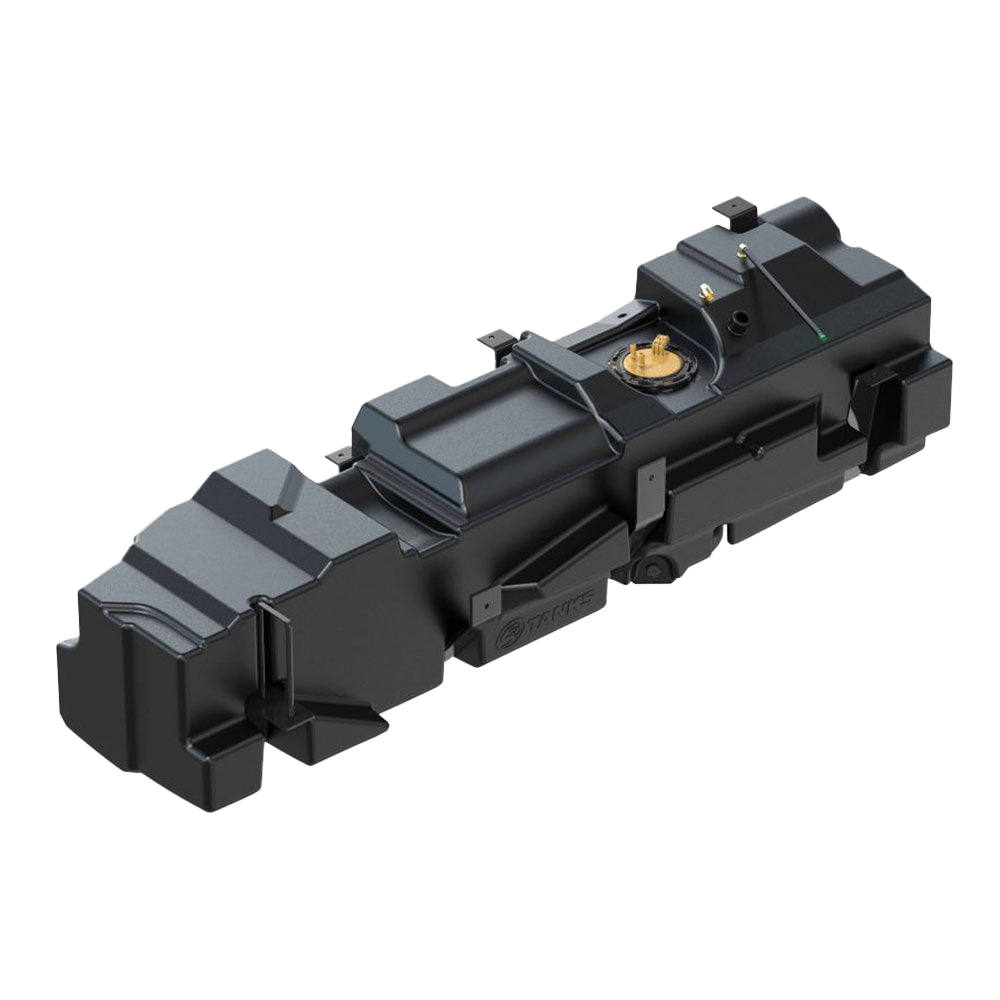

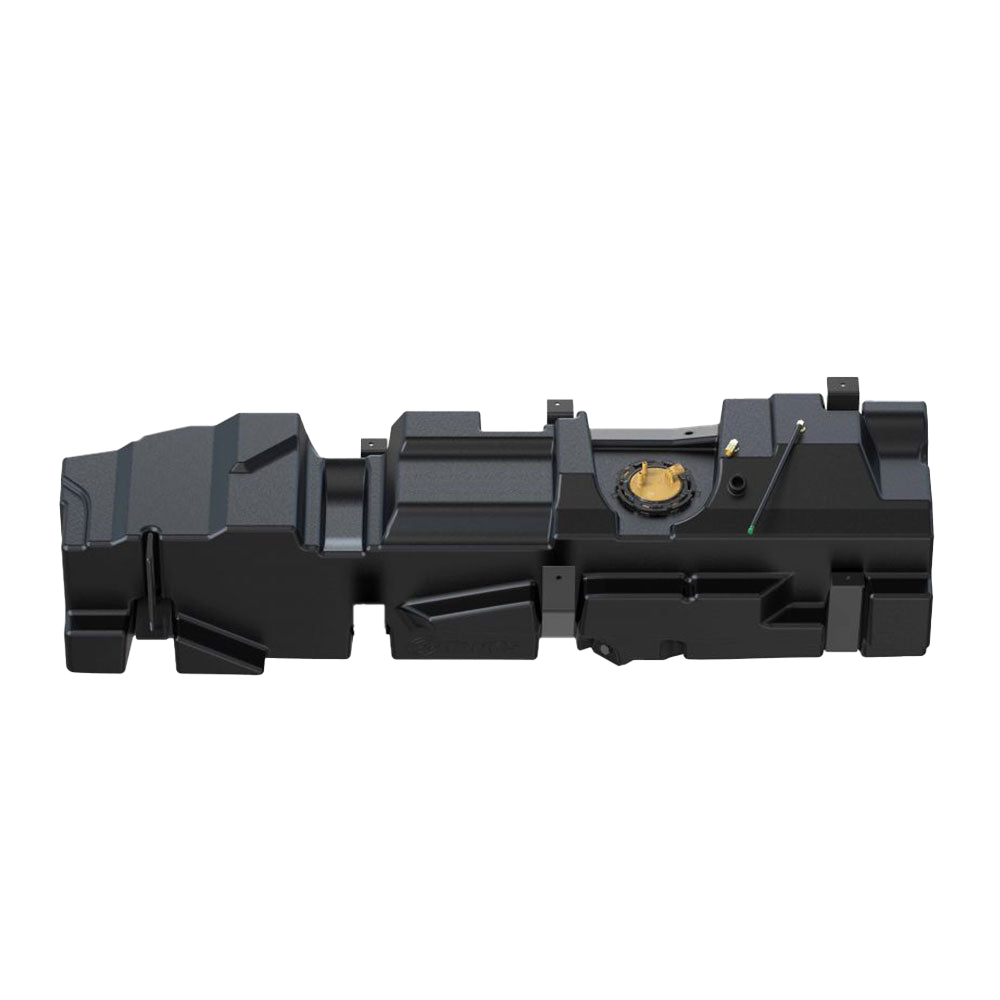

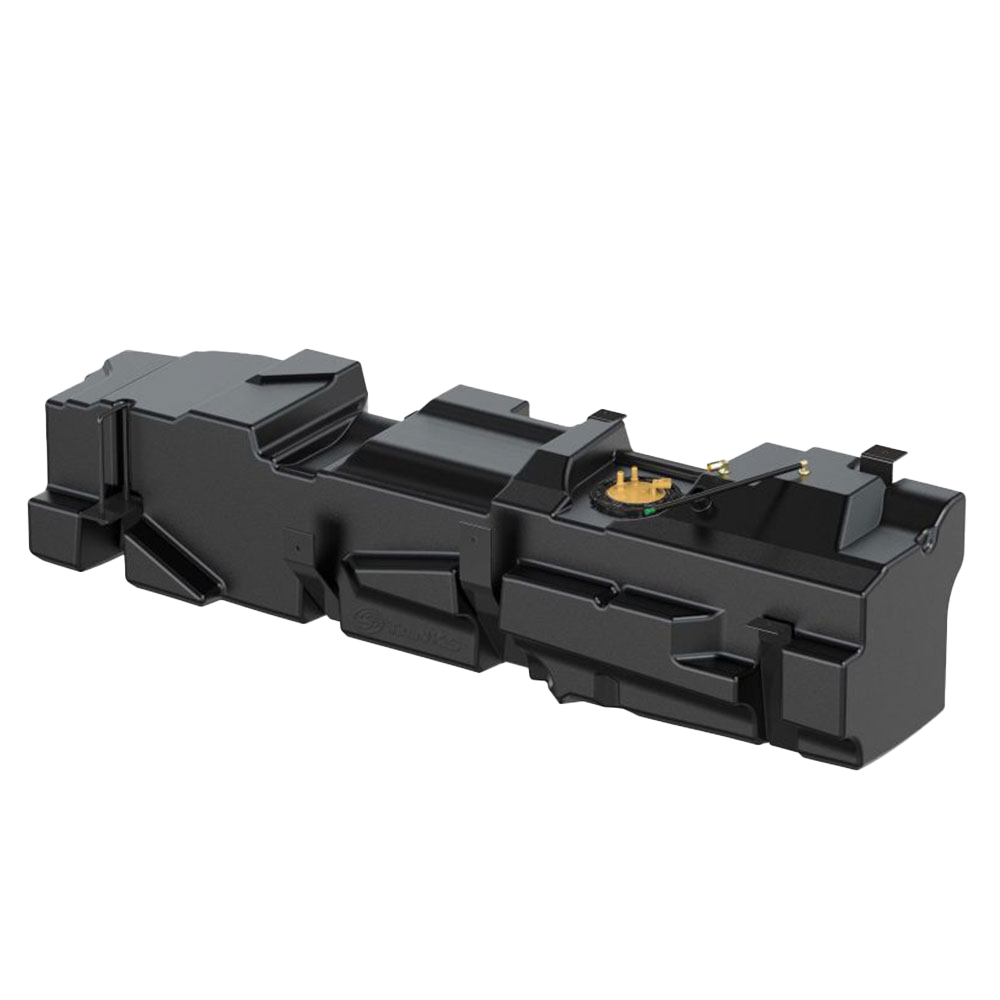

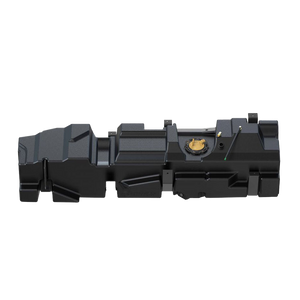

S&B's 70-gallon fuel tank replaces the OEM 35-gallon fuel tank. The replacement tank sits 3" below the OEM fuel tank shield and holds approximately 70 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 70-gallon tank with have a greater fuel reserve.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | No |
| Dimensions | 80.82" X 19.18" X 20.79" |
| Drain | No |
| Embedded fitting thread size | 1/2" NPT |

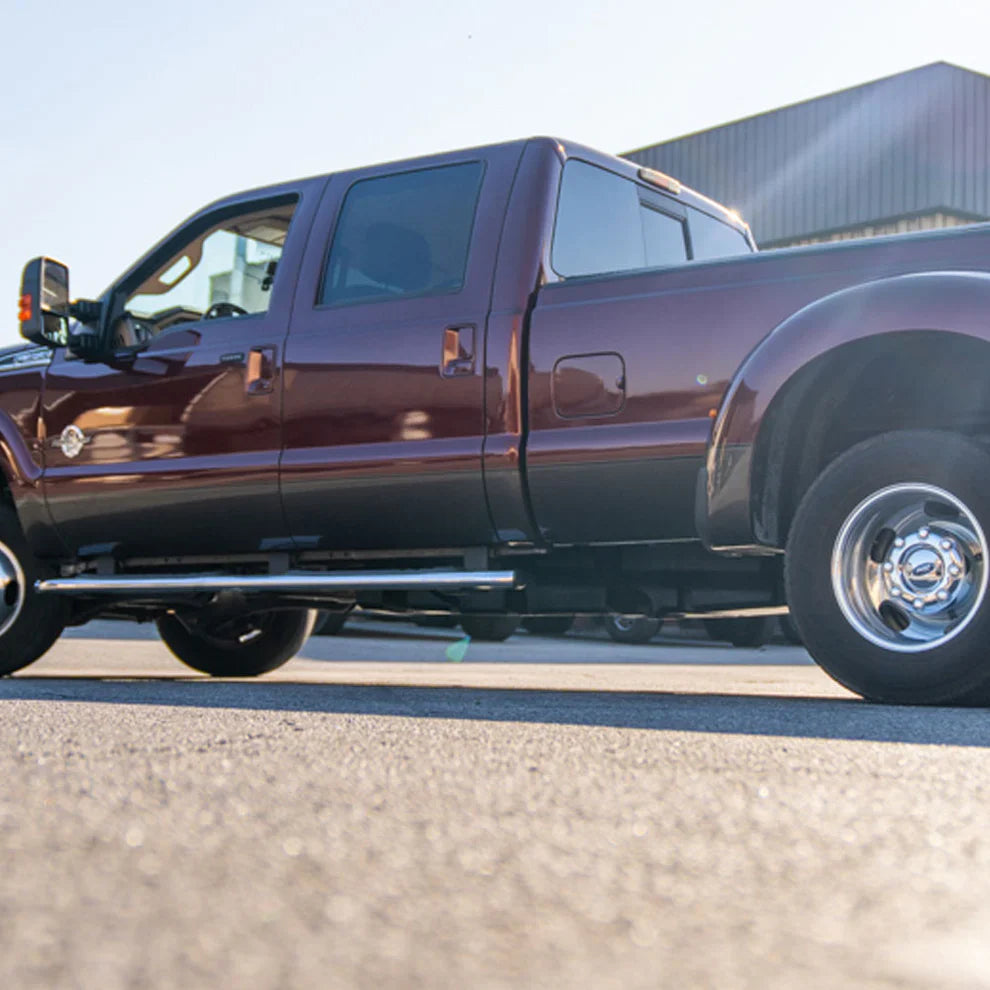

| Ground clearance compare to oe tank | 3" Lower |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 70 gallons |
| Tank type | Midship |
| Transfer pump ready | Yes |
| Weight dry | 53lbs |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2011-2016 | Ford | F-250 | 6.7L, Diesel |
| 2011-2016 | Ford | F-350 | 6.7L, Diesel |
| 2011-2016 | Ford | F-450 | 6.7L, Diesel |
