SKU: SKU: S&B10-1004
Important Notes: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.

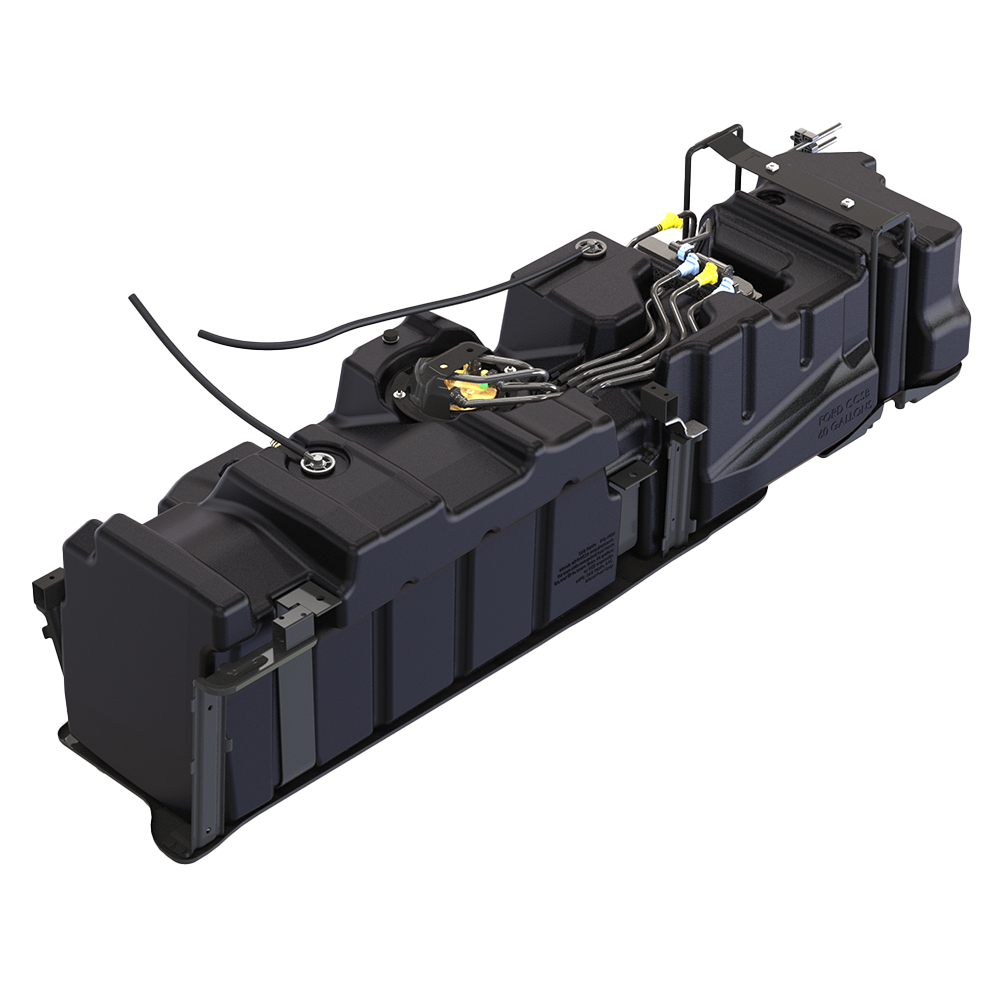

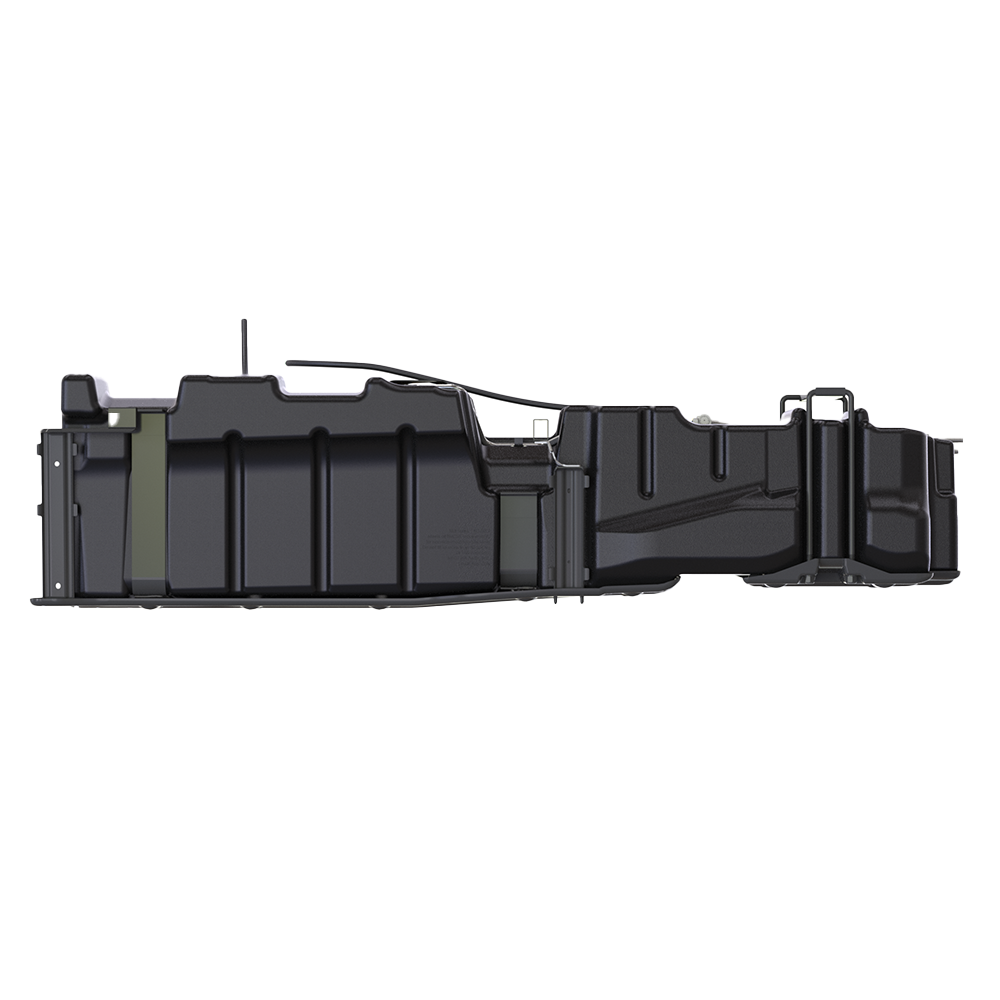

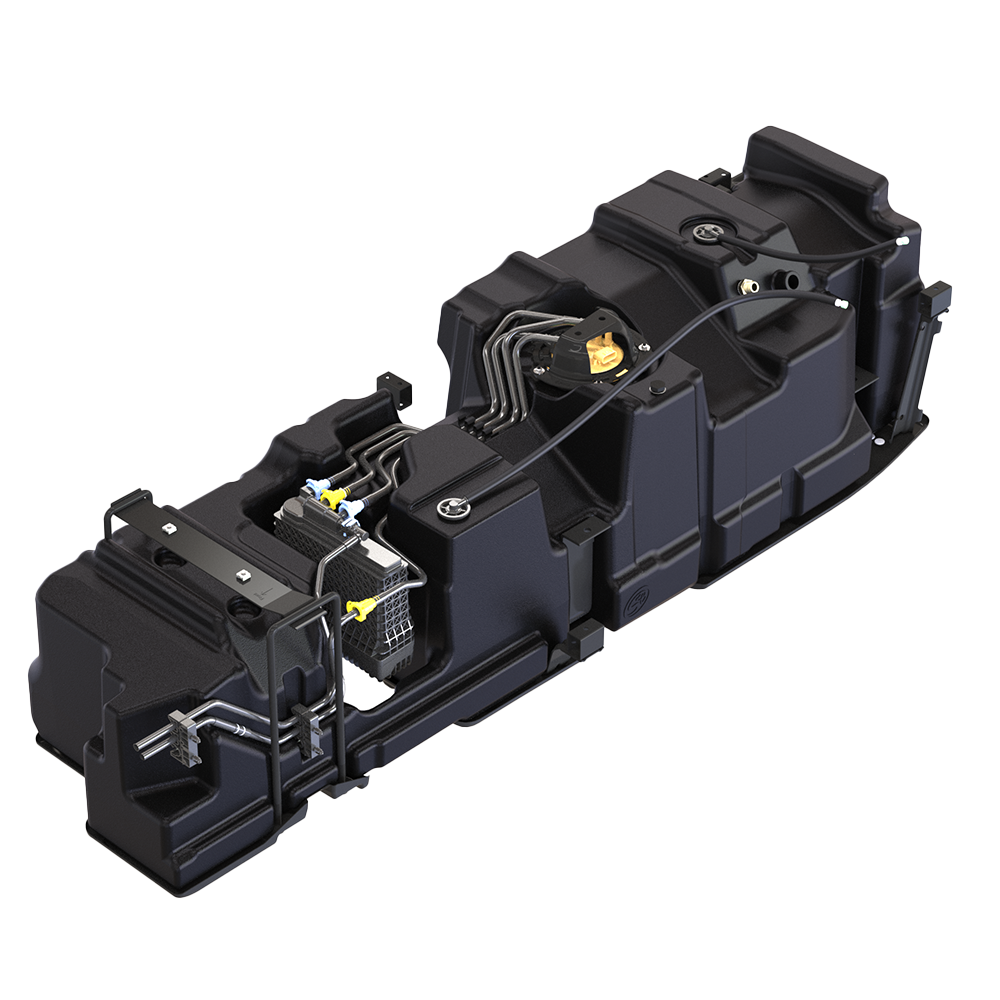

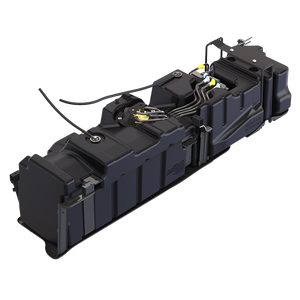

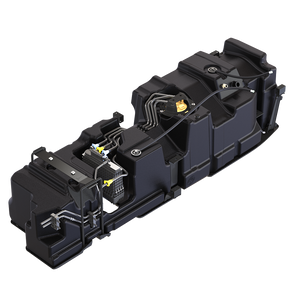

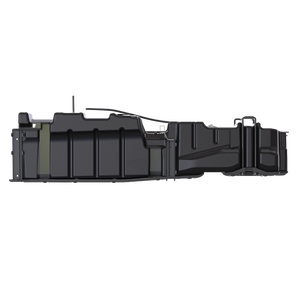

This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60-gallon tank with have a greater fuel reserve.
According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

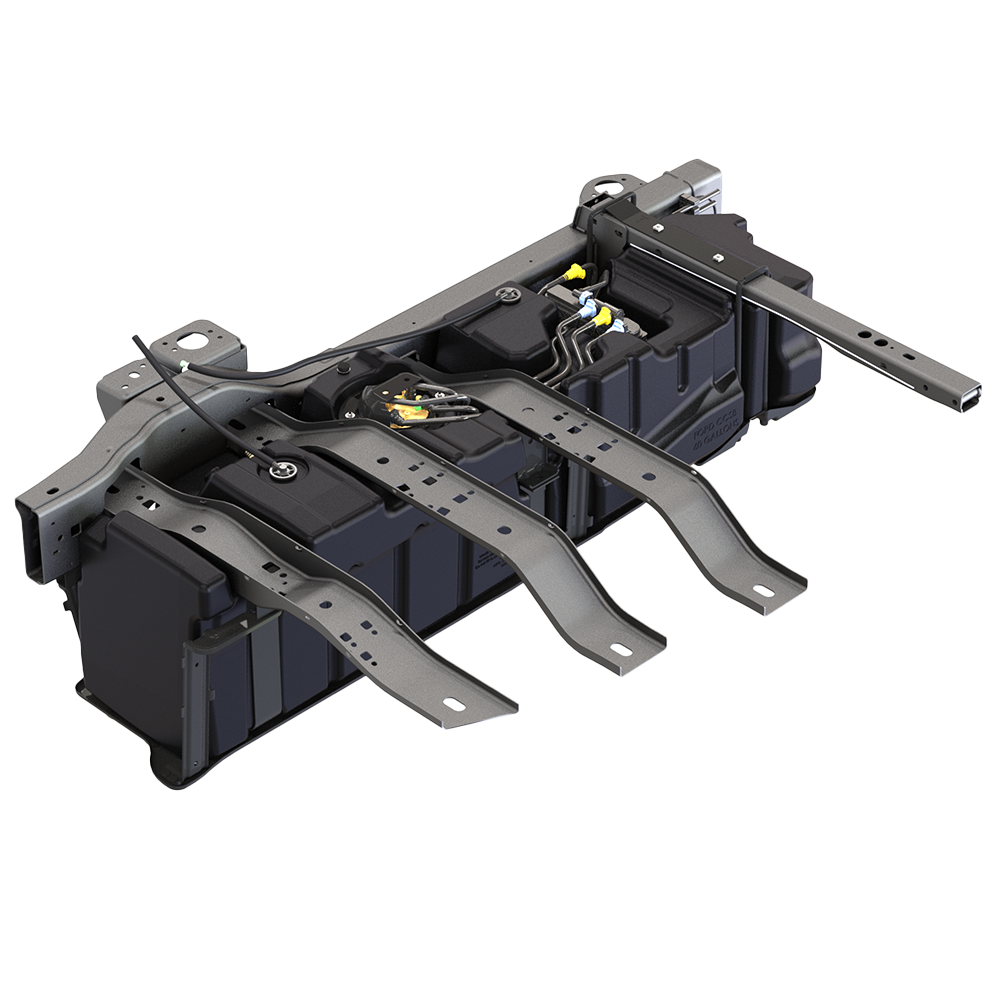

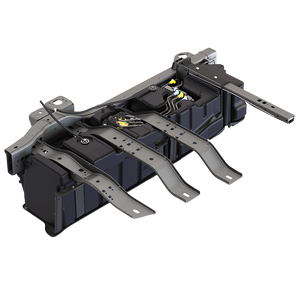

| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | Yes |
| Dimensions | 76.02" X 20.69" X 19.08" |
| Drain | No |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | 1.75" Lower |
| Sending unit | OEM |
| Straps included | Yes |
| Street legal in all us states | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 60 gallons |
| Tank type | Midship |
| Transfer pump ready | Yes |
| Weight dry | 50lbs |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2017-2026 | Ford | F-250 | 6.7L, Diesel |
| 2017-2026 | Ford | F-350 | 6.7L, Diesel |
