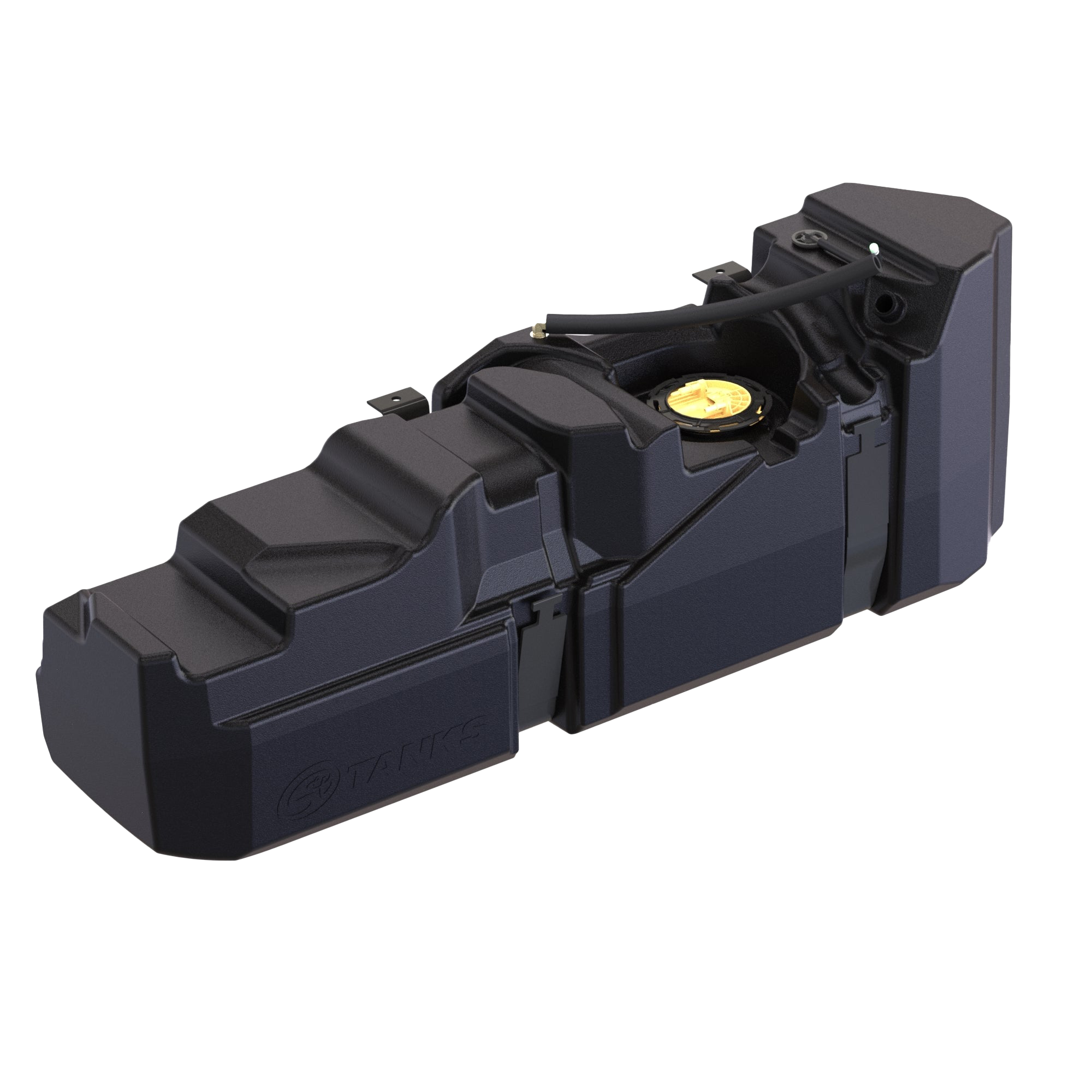

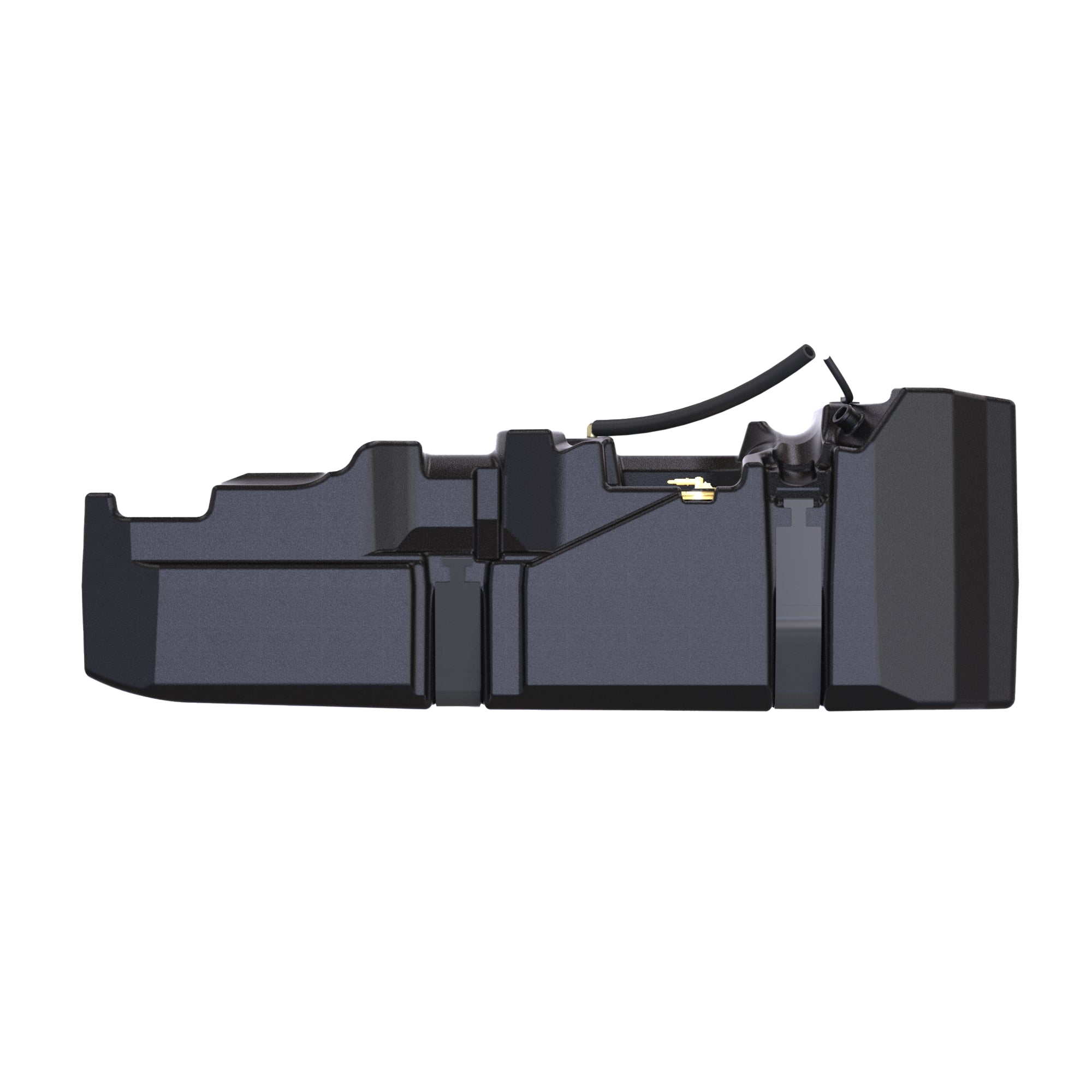

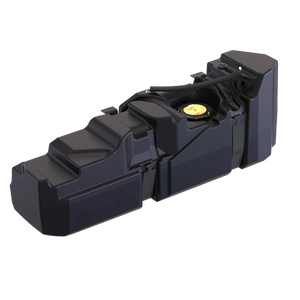

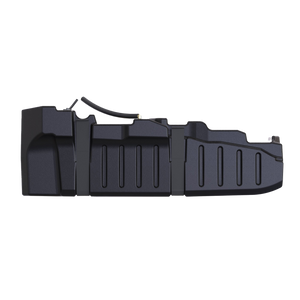

S&B 52 Gallon Replacement Fuel Tank for 2005-2024 Dodge Ram Cummins Crew and Quad Cab Short Bed - 10-1021-1 by S&B - front vi

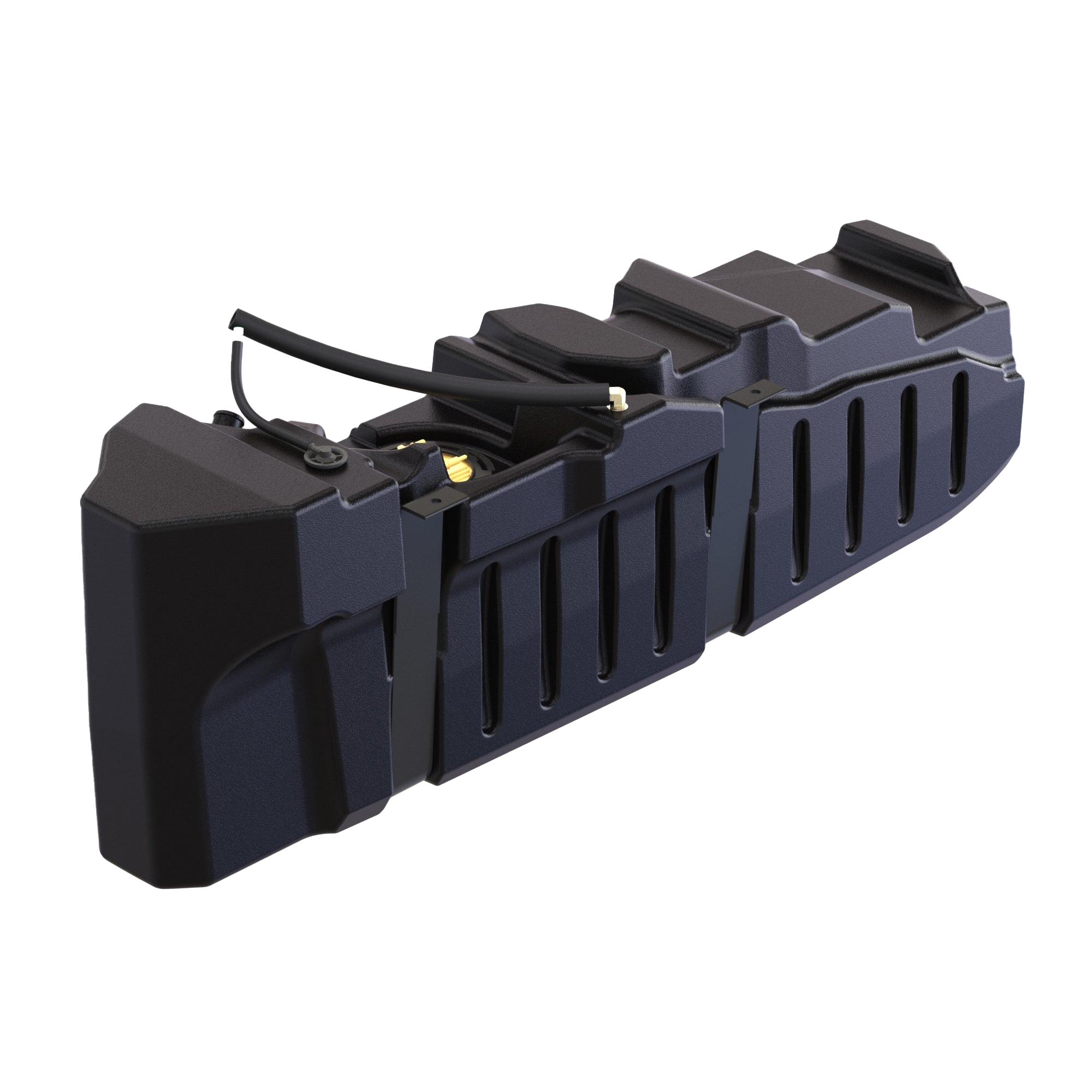

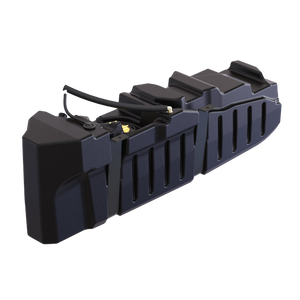

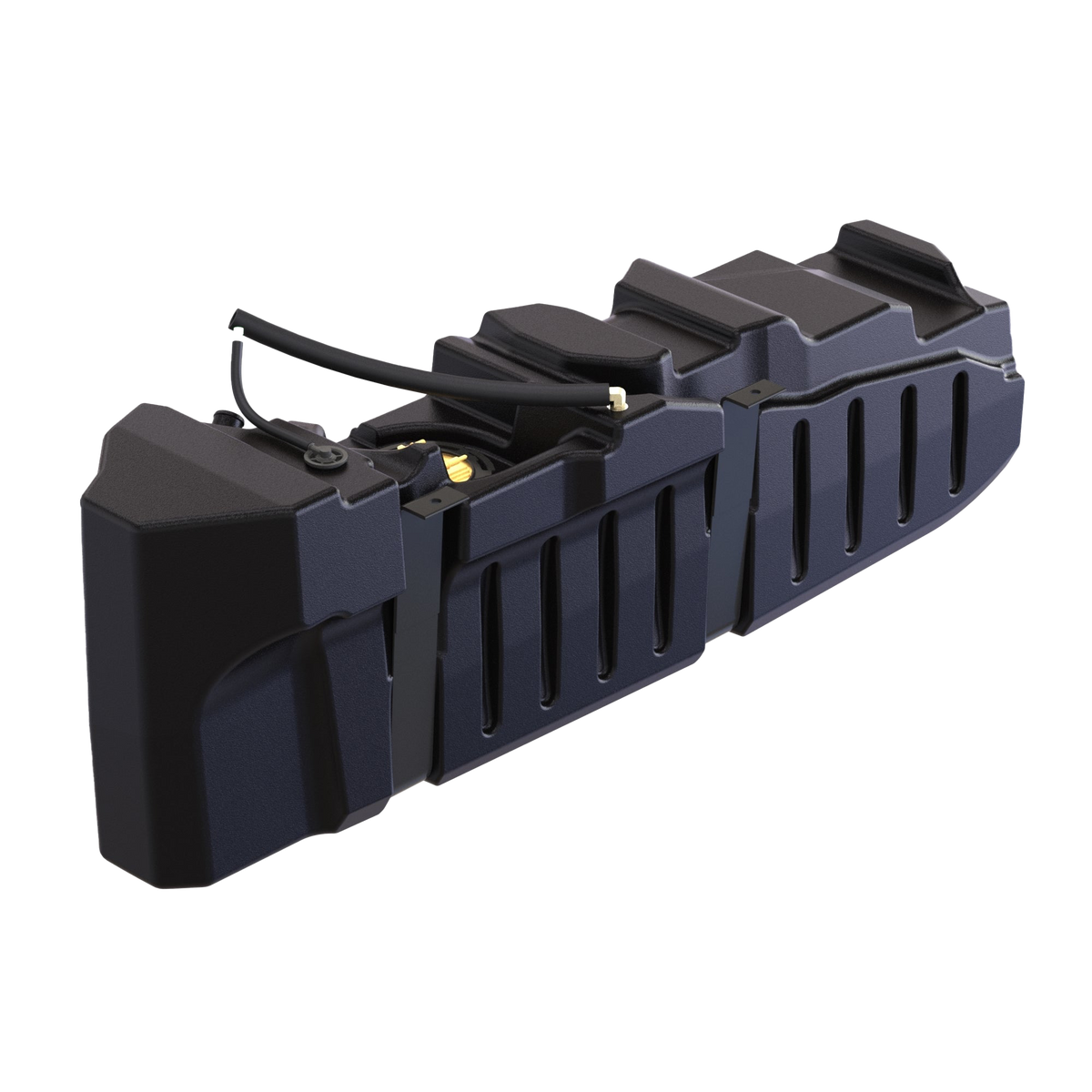

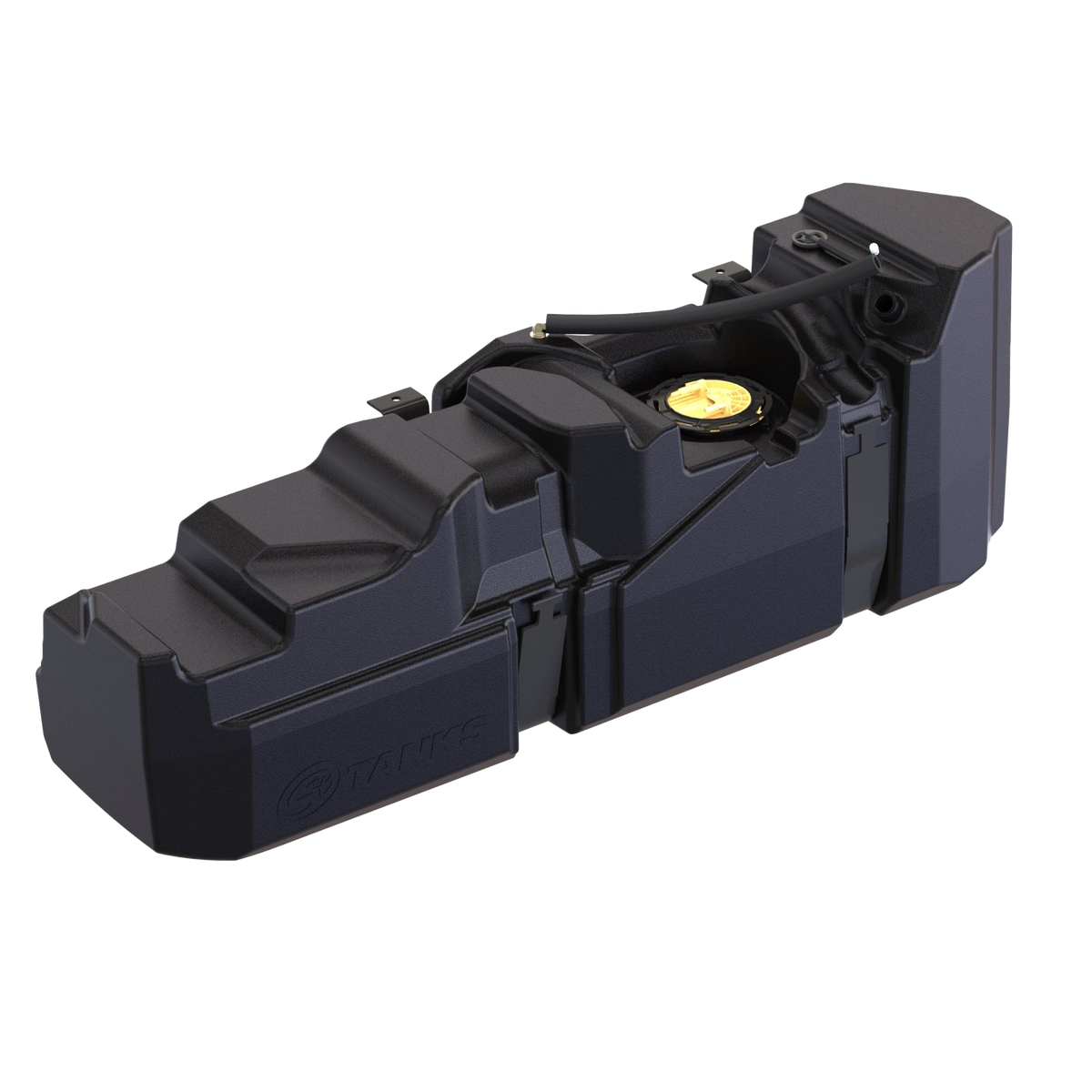

S&B 52 Gallon Replacement Fuel Tank for 2005-2024 Dodge Ram Cummins Crew and Quad Cab Short Bed - 10-1021-1 by S&B - angle vi
S&B 52 Gallon Replacement Fuel Tank for 2005-2024 Dodge Ram Cummins Crew and Quad Cab Short Bed - 10-1021-1 by S&B - detail v

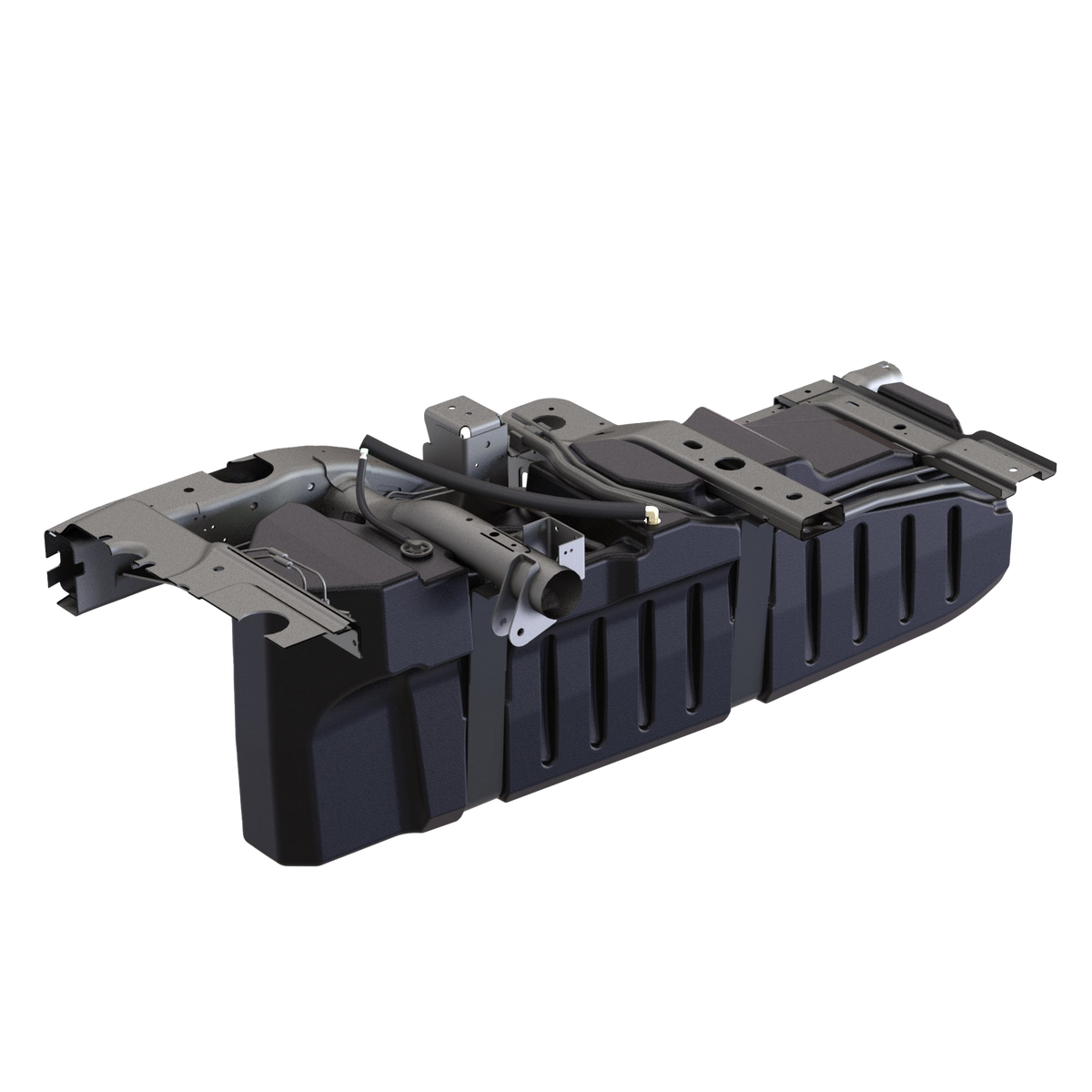

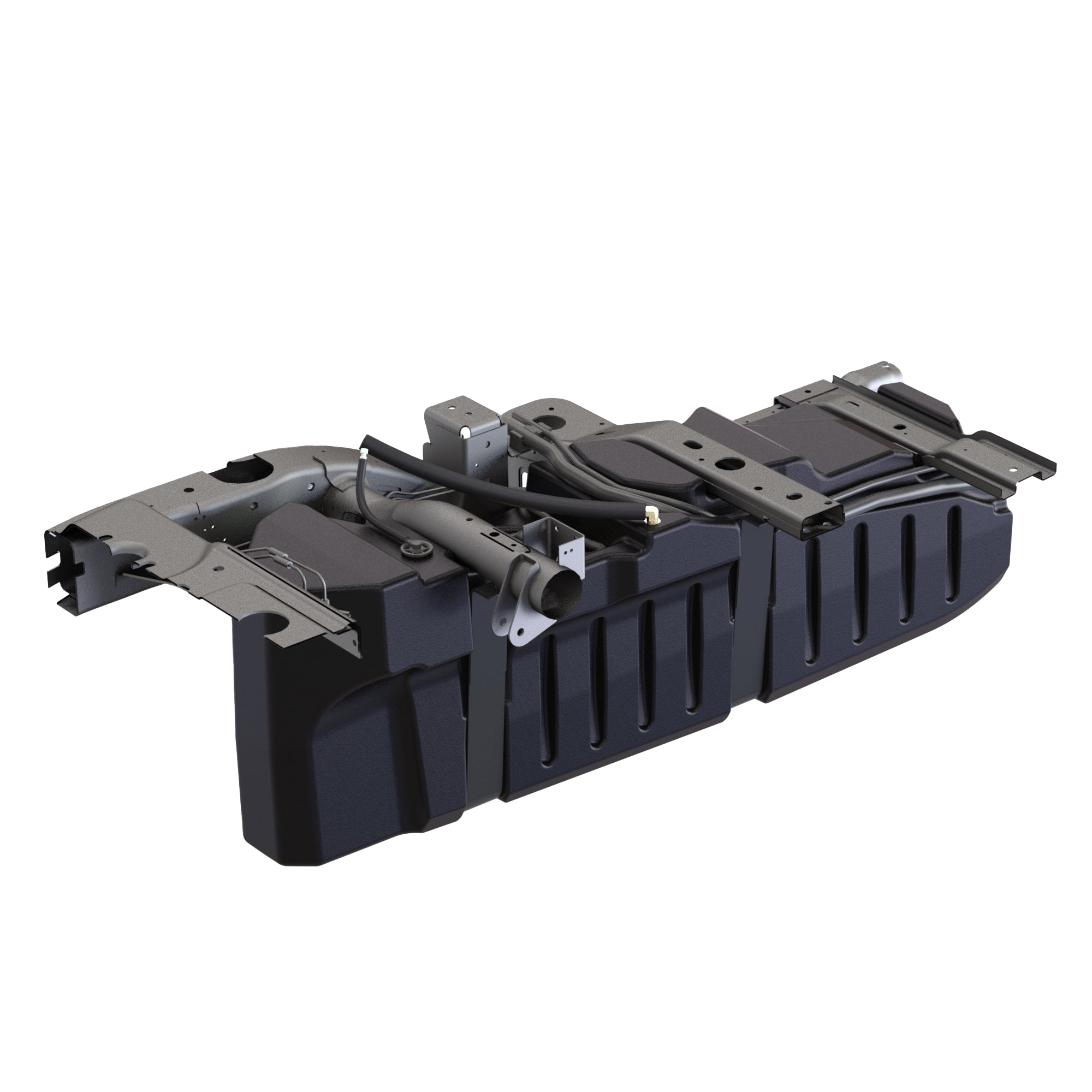

S&B 52 Gallon Replacement Fuel Tank for 2005-2024 Dodge Ram Cummins Crew and Quad Cab Short Bed - 10-1021-1 by S&B - installe
S&B 52 Gallon Replacement Fuel Tank for 2005-2024 Dodge Ram Cummins Crew and Quad Cab Short Bed - 10-1021-1 by S&B - close-up

S&B

S&B 52 Gallon Replacement Fuel Tank for 2005-2024 Dodge Ram Cummins Crew and Quad Cab Short Bed - 10-1021-1

SKU: SKU: S&B10-1021-1

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
This item is classified as Oversized and may incur an additional handling fee at checkout depending on your shipping location. No additional fees apply for pickup orders.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue
Important Notes:
  • The fuel gauge will continue to work however the distance to empty will not be accurate. There is no way to update the fuel tank size for the distance to empty to be accurate.
  •  OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons.
  • The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

Product Specifications

Compatible with gooseneck and 5th wheel Yes
Compatible with oe skid plate No
Dimensions 63.62" X 17.84" X 22.07"
Drain No
Embedded fitting thread size 1/2" NPT
Ground clearance compare to oe tank 2.4 " Lower
Sending unit OE
Straps included Yes
Sump No
S&B Capacity (Approximate) 52 gallons
Tank type Midship
Transfer pump ready Yes
Weight dry 40lbs

Vehicle Fitment

Year Make Model Engine
2005-2007 Dodge / Ram Ram 2500 5.9L, Diesel
2005-2007 Dodge / Ram Ram 3500 5.9L, Diesel
2007-2024 Dodge / Ram Ram 2500 6.7L, Diesel
2007-2024 Dodge / Ram Ram 3500 6.7L, Diesel
