SKU: SKU: S&B10-1001
Important Note: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically. Skid plates and straps are NOT included. These parts are reused.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

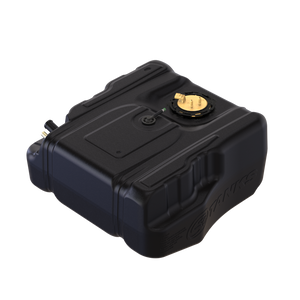

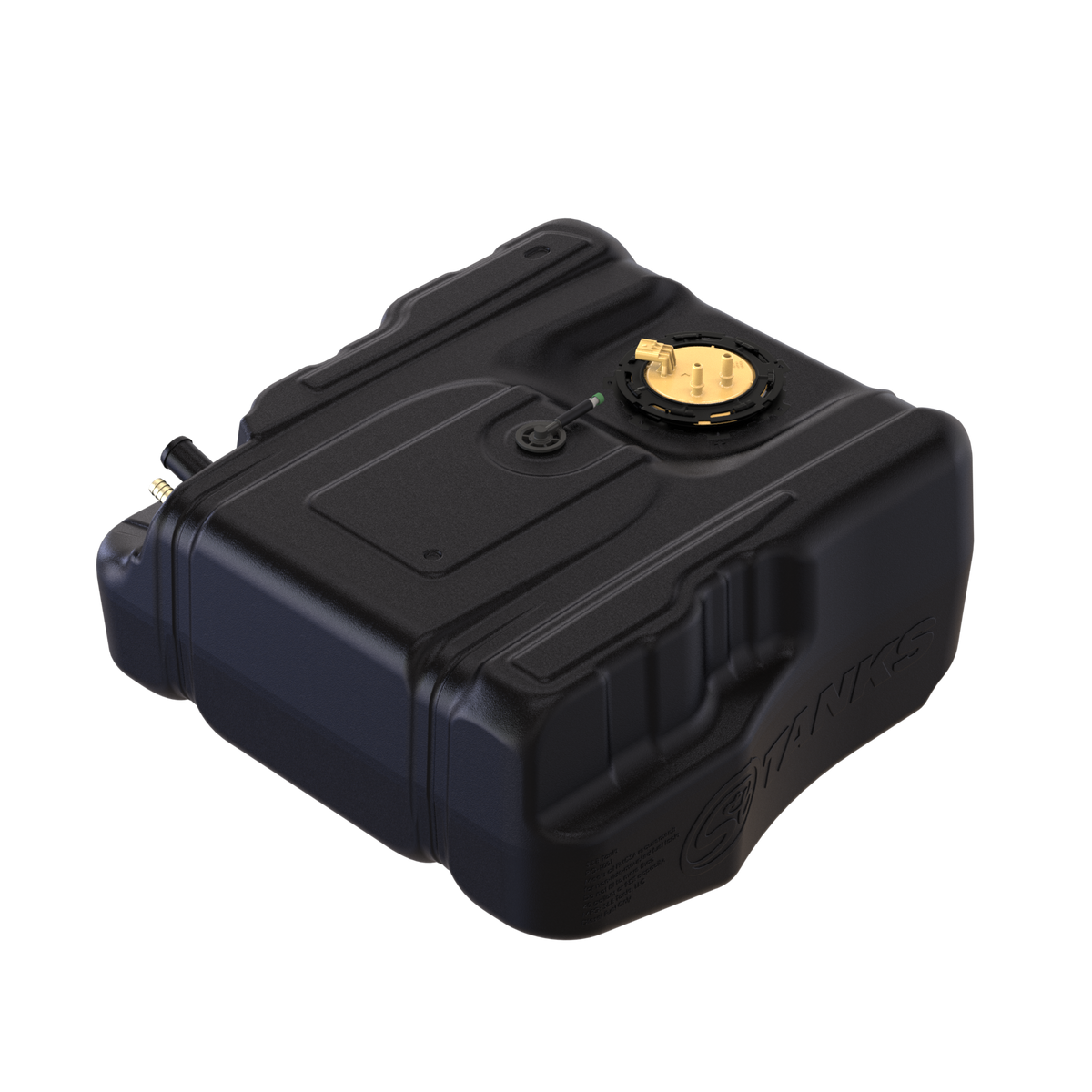

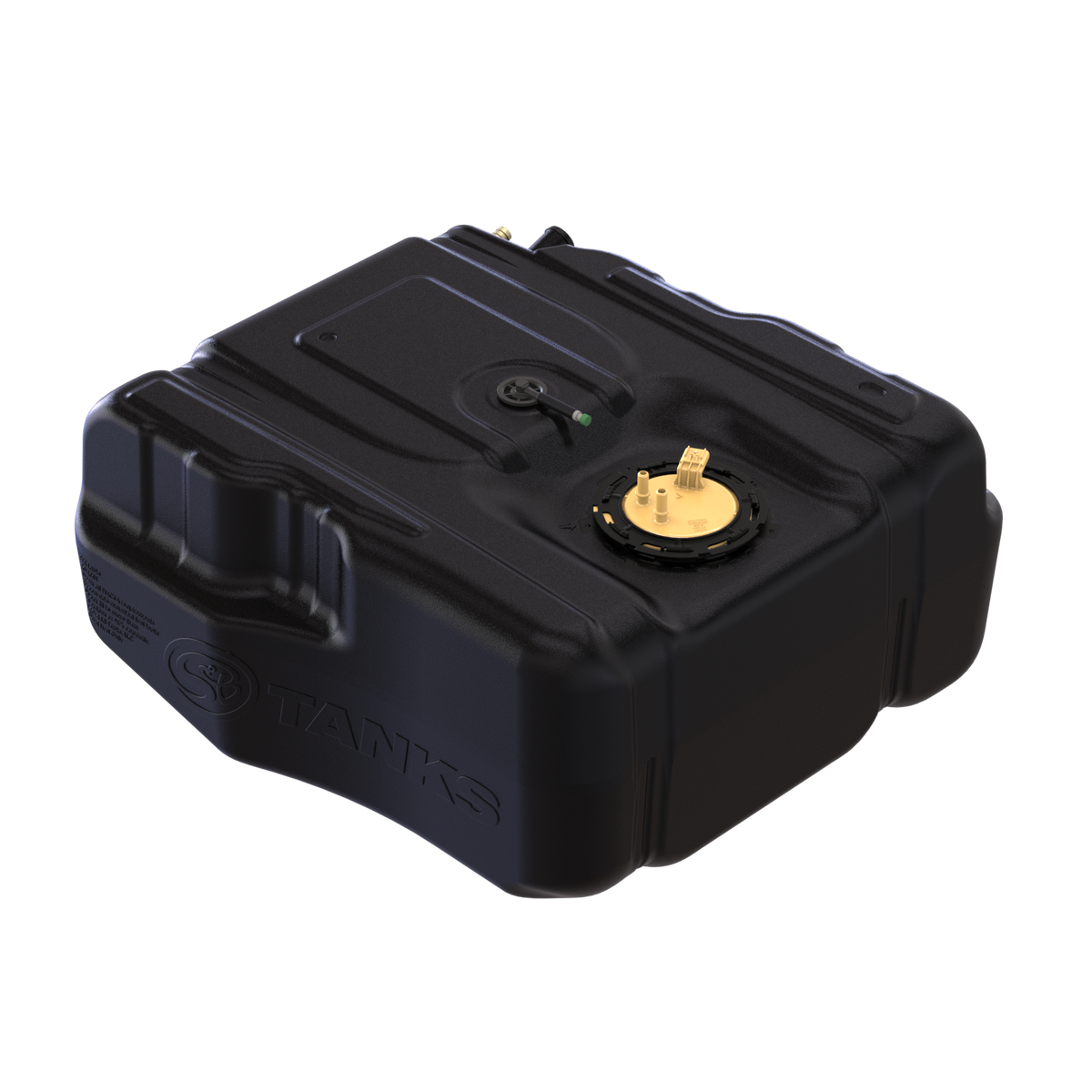

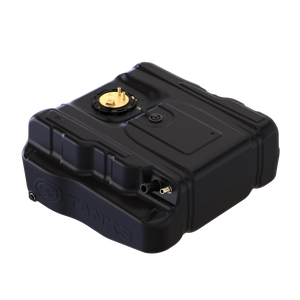

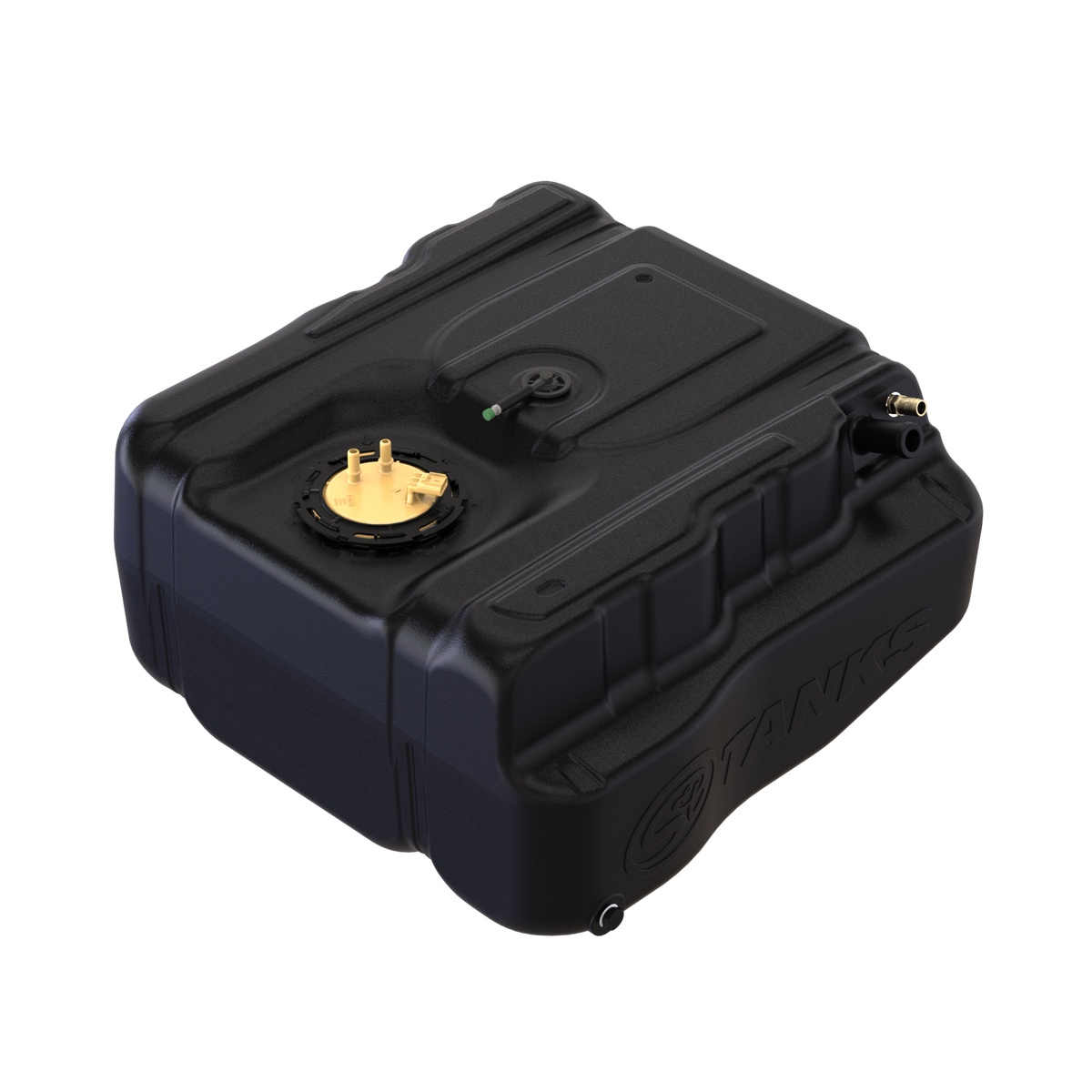

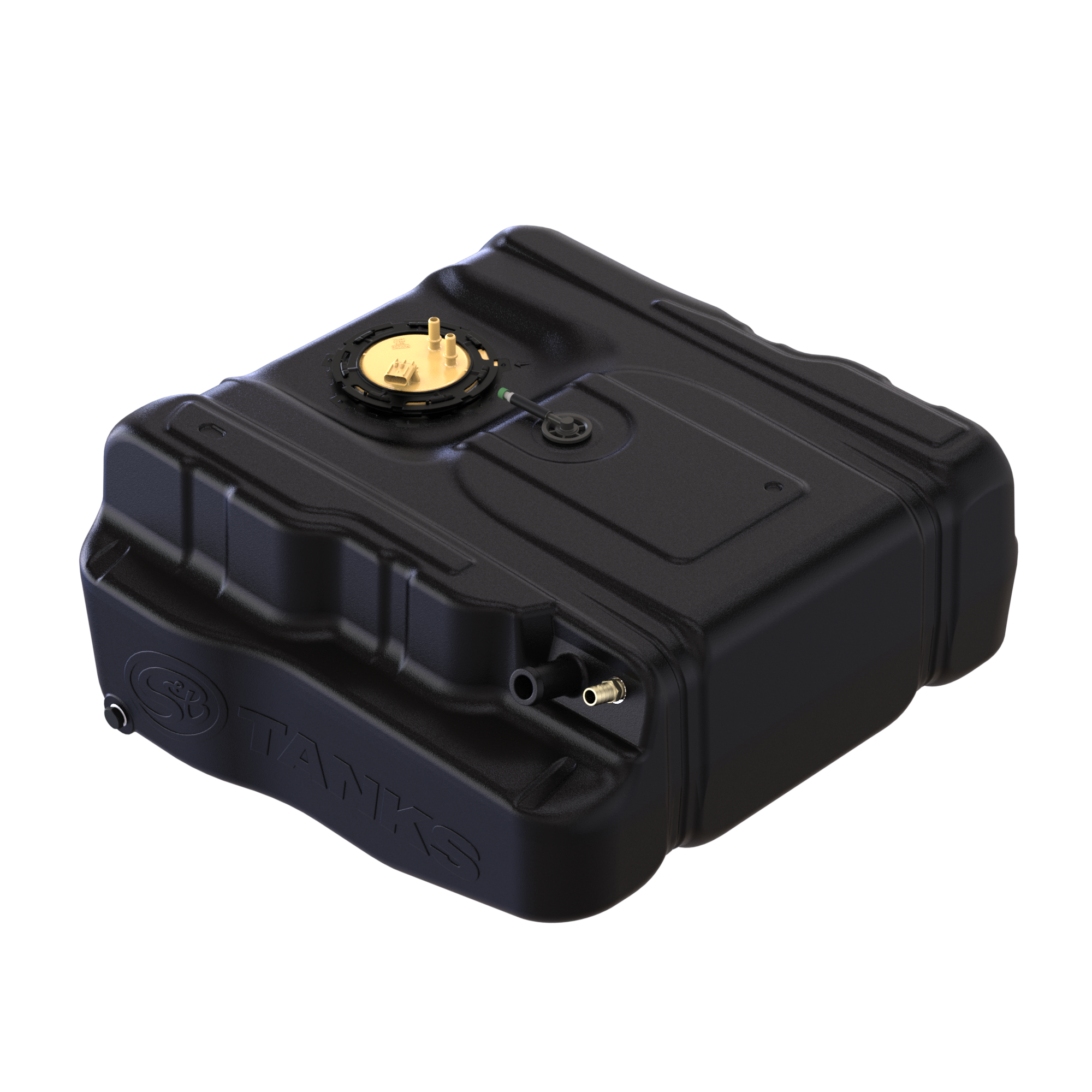

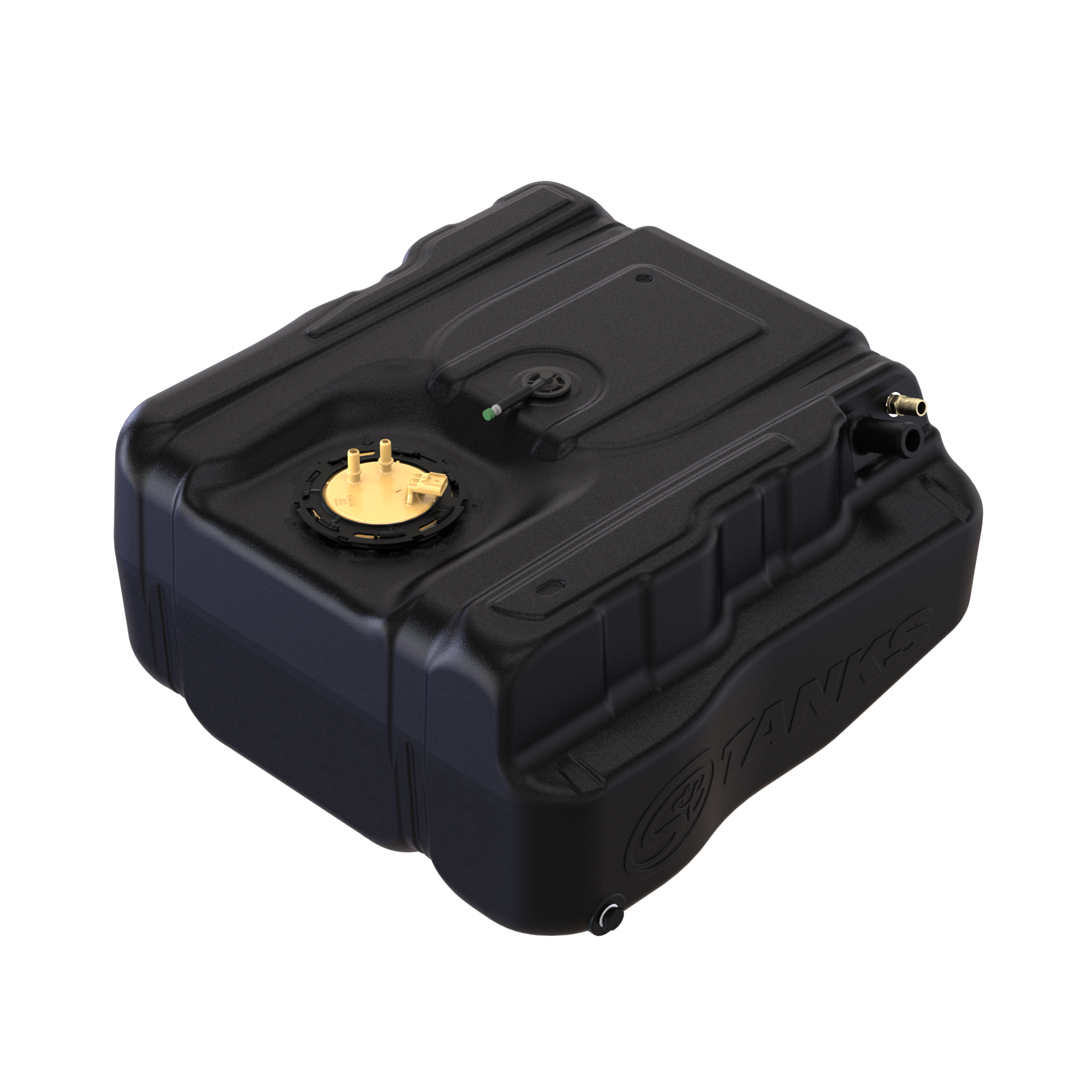

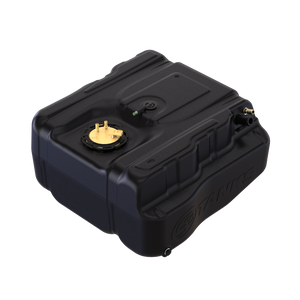

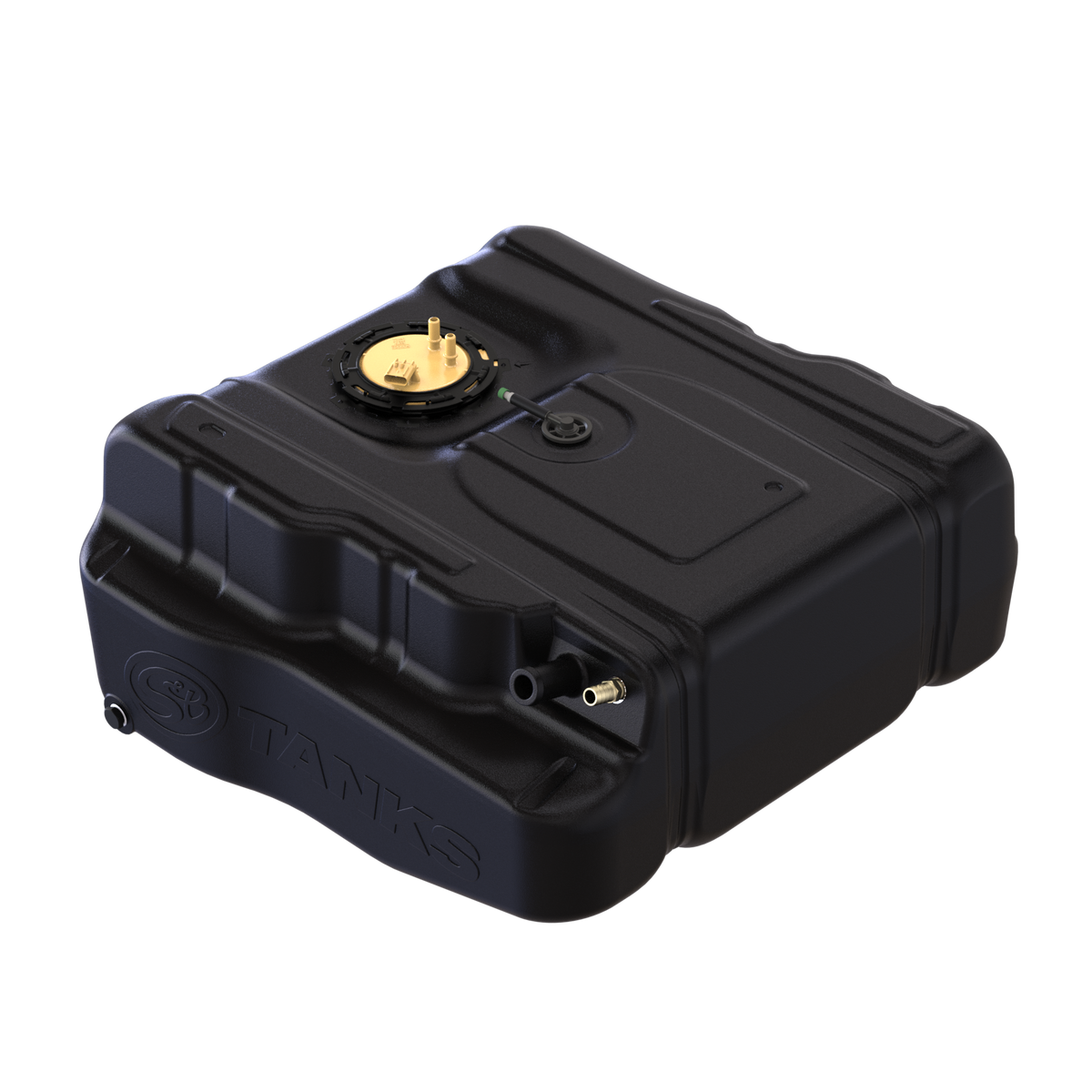

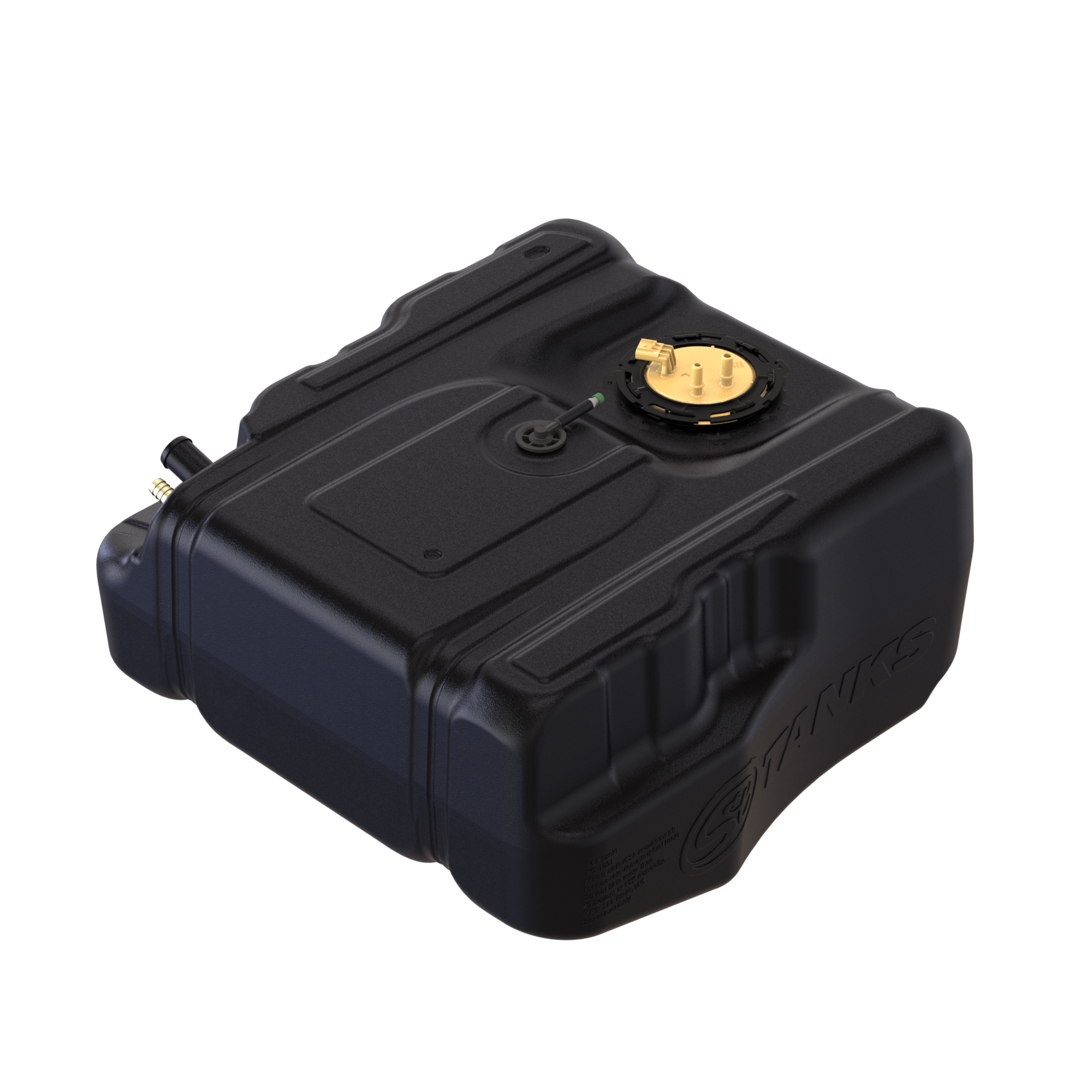

This is a direct replacement to the OEM 40 gallon tank. This and your current OEM tank are the same size and shape. This poly tank resolves the problem of the OEM steel tank delaminating.
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | Yes |
| Dimensions | 30.21" X 31.22" X 14.95" |
| Drain | No |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | Same |
| Sending unit | OE |
| Straps included | No |
| Sump | No |
| S&B Capacity (Approximate) | 40 Gallons |
| Tank type | AFT |
| Transfer pump ready | No |
| Weight dry | 25lbs |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2011-2016 | Ford | F-250 | 6.7L, Diesel |
| 2011-2016 | Ford | F-350 | 6.7L, Diesel |
| 2011-2016 | Ford | F-450 | 6.7L, Diesel |
| 2011-2016 | Ford | F-550 | 6.7L, Diesel |
