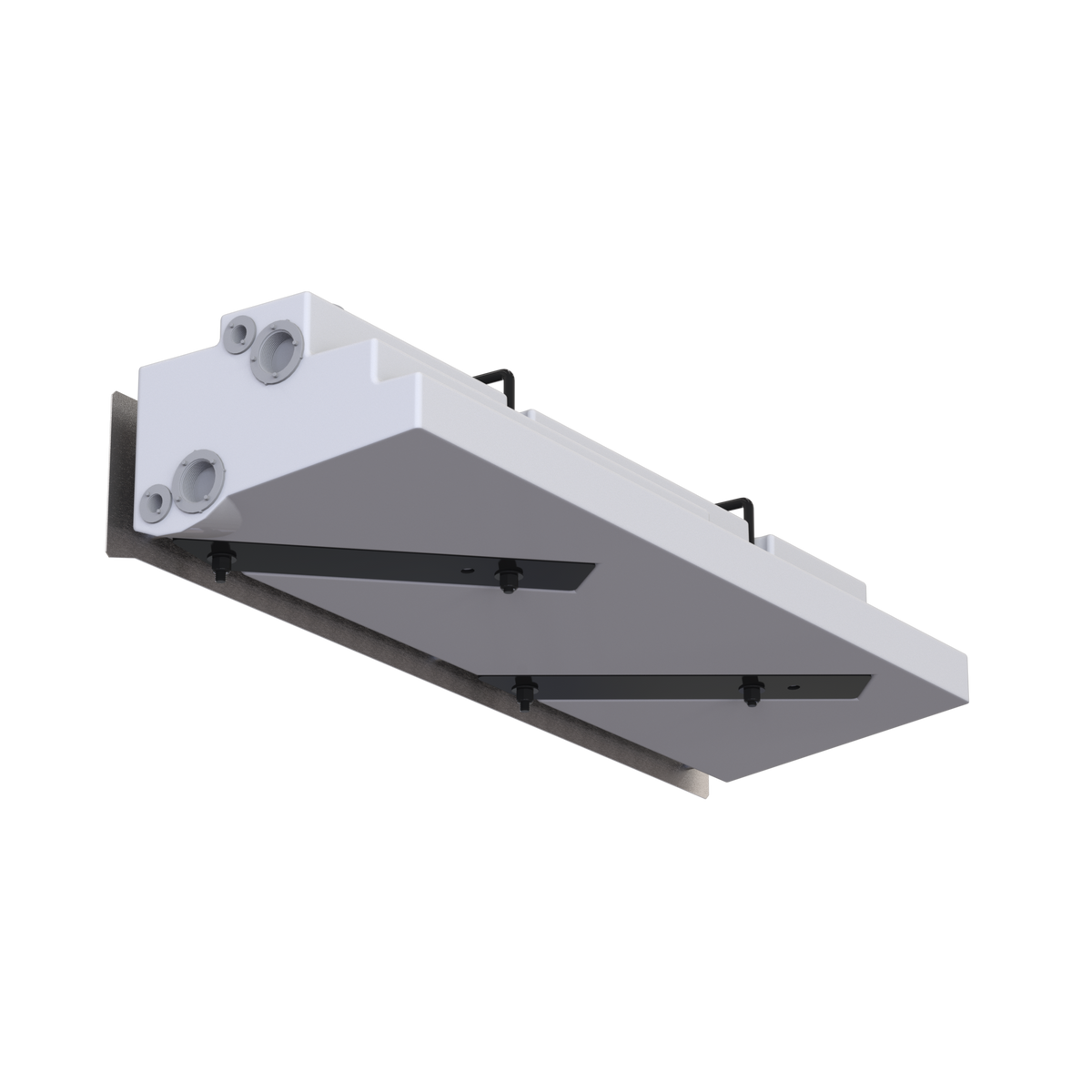

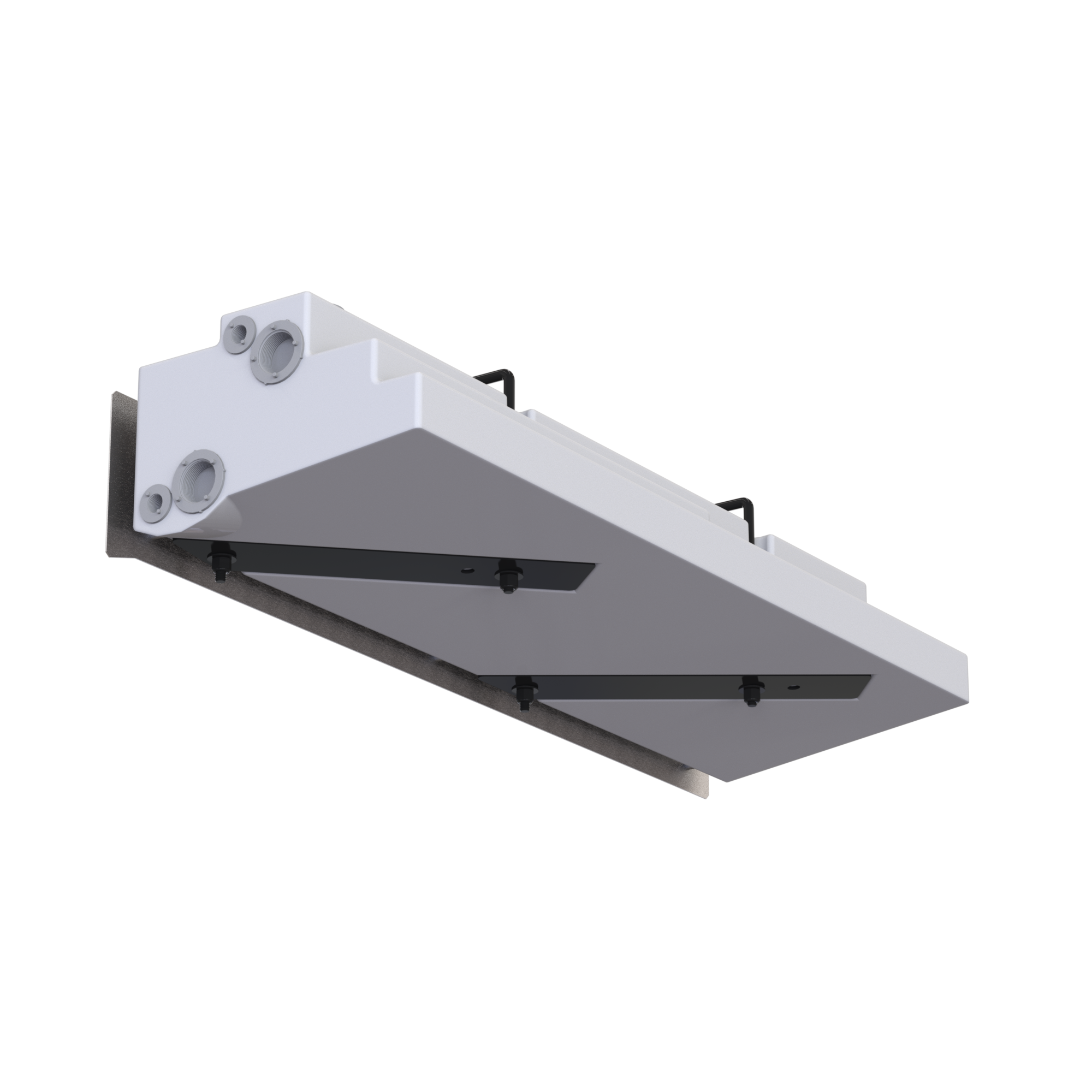

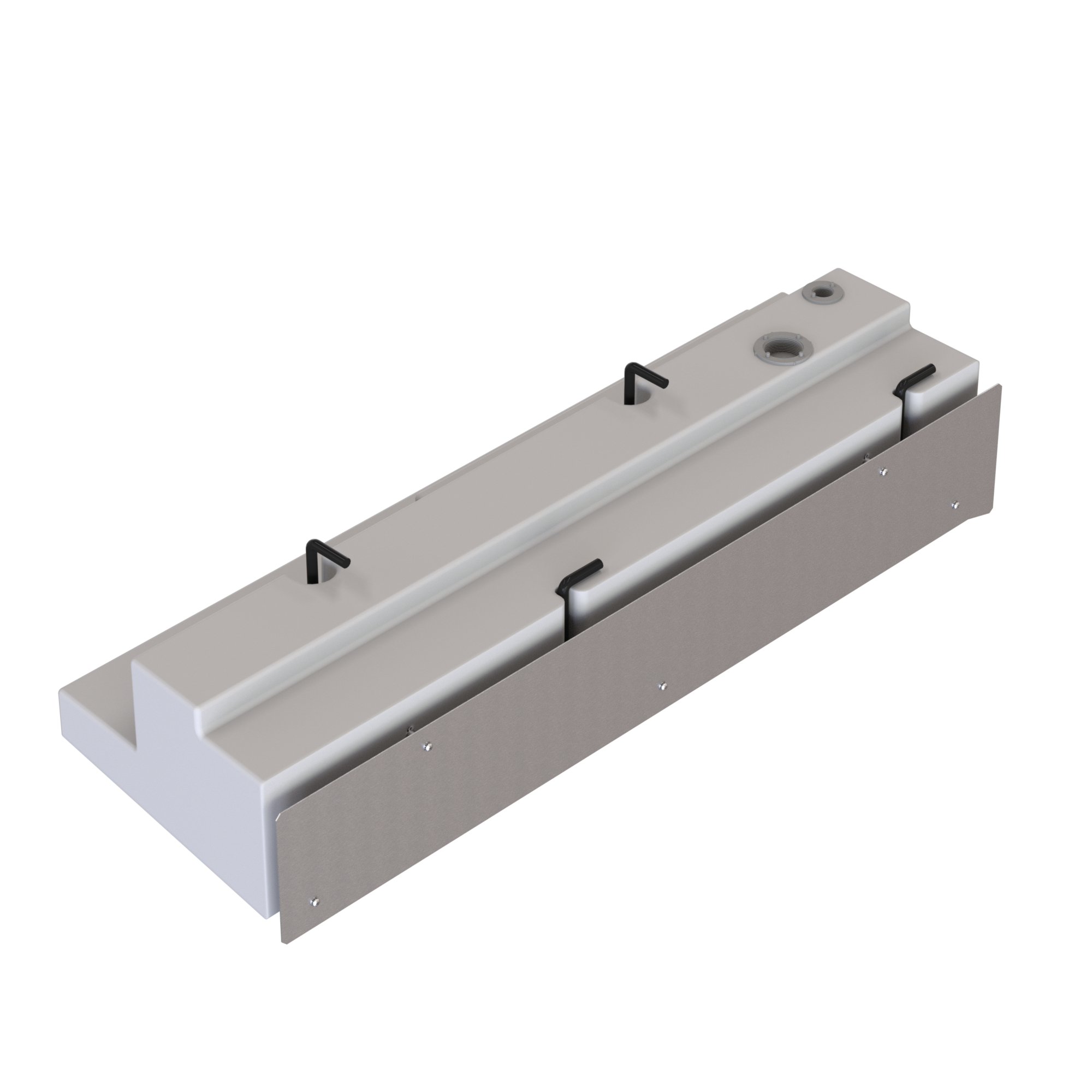

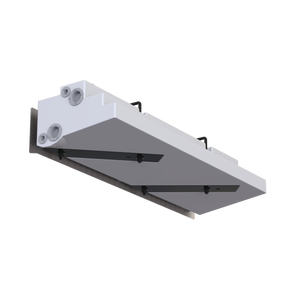

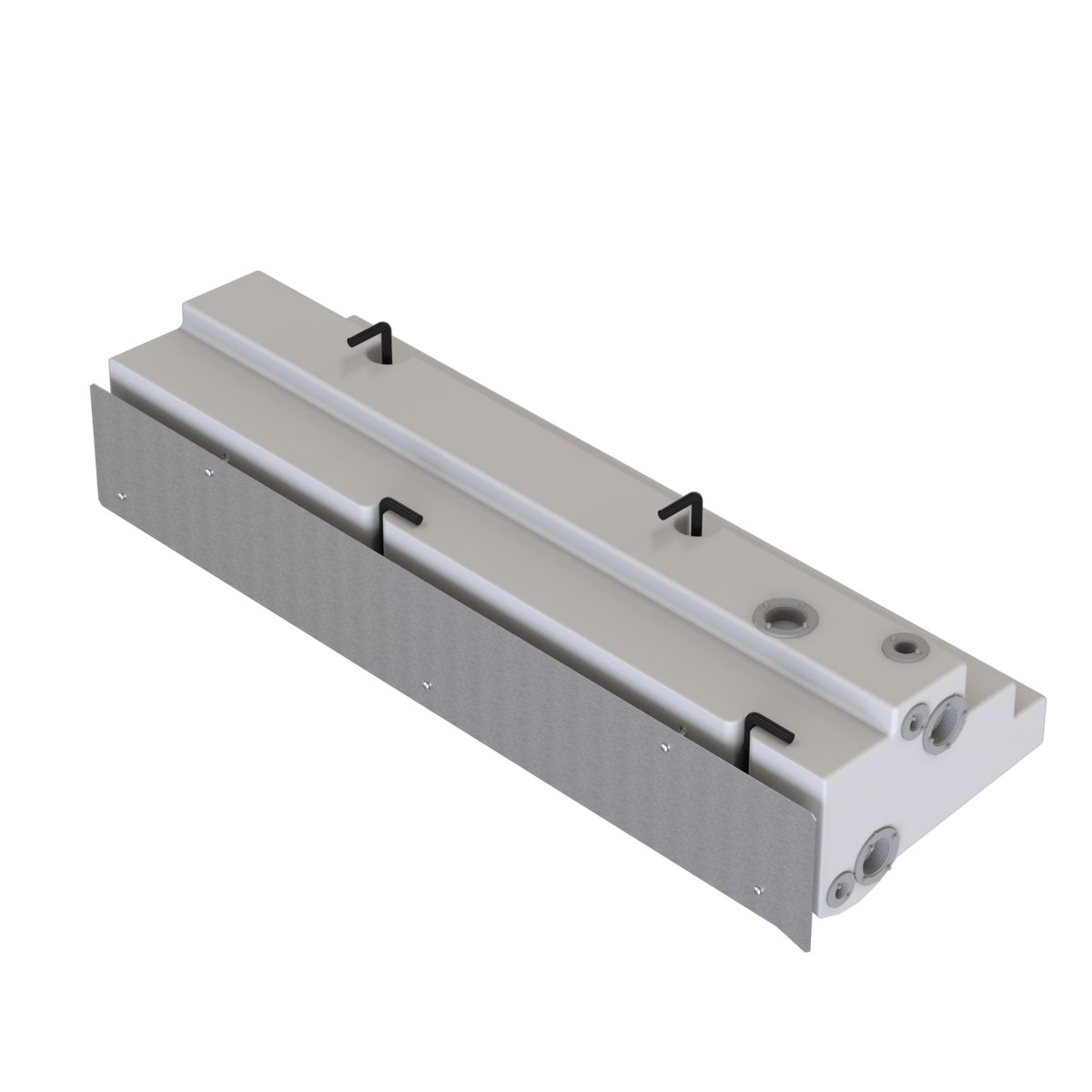

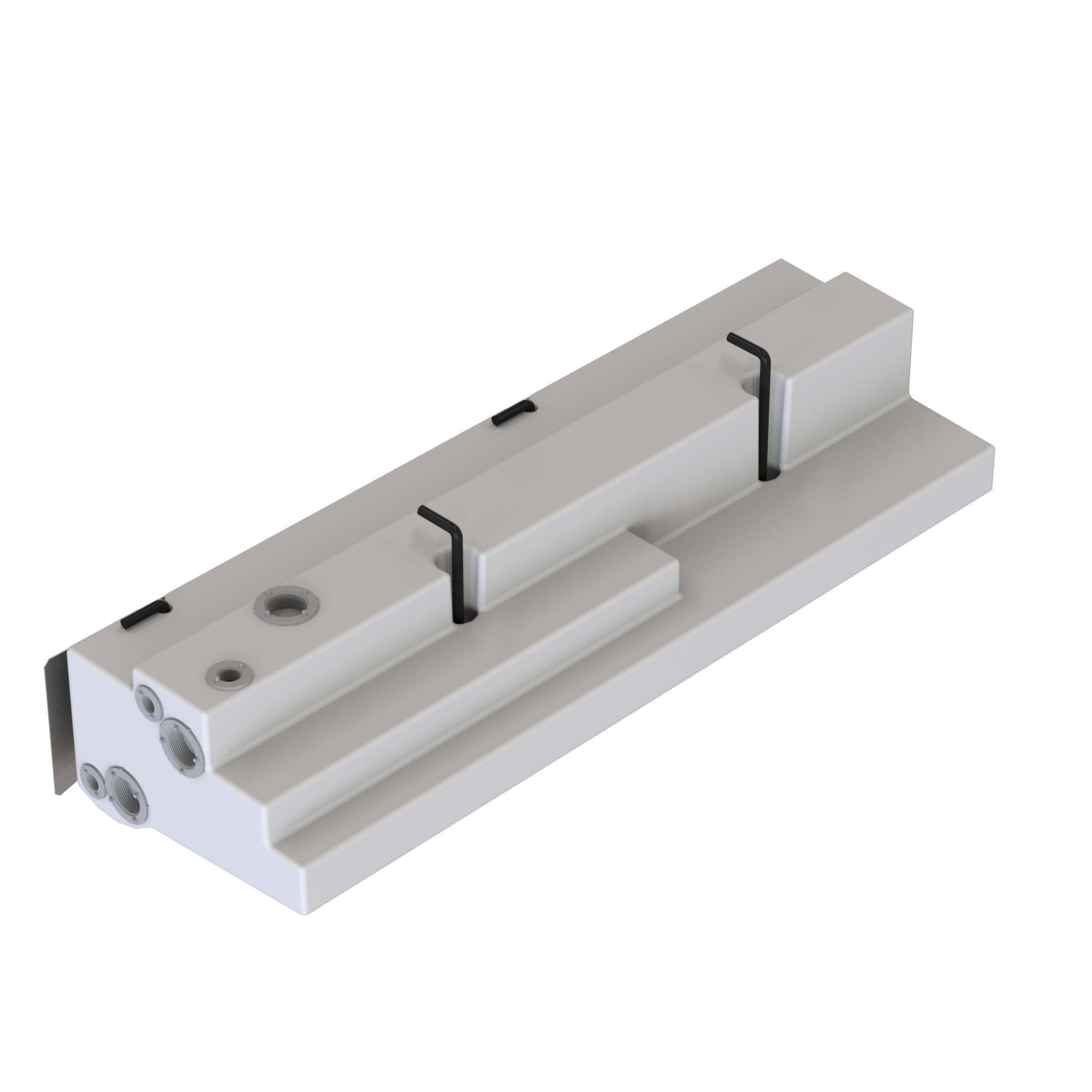

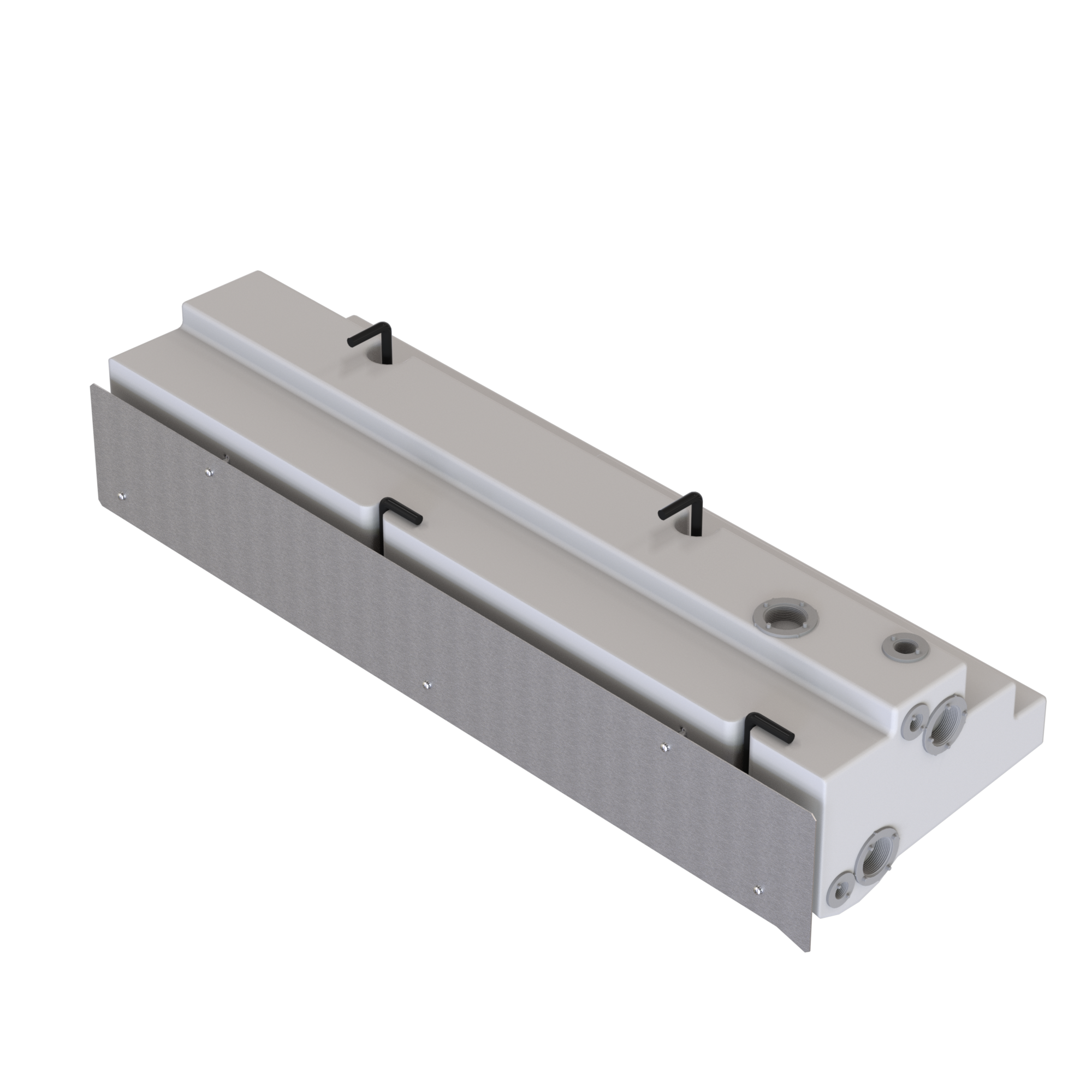

S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009 by S&B - angle view
S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009 by S&B - detail vie

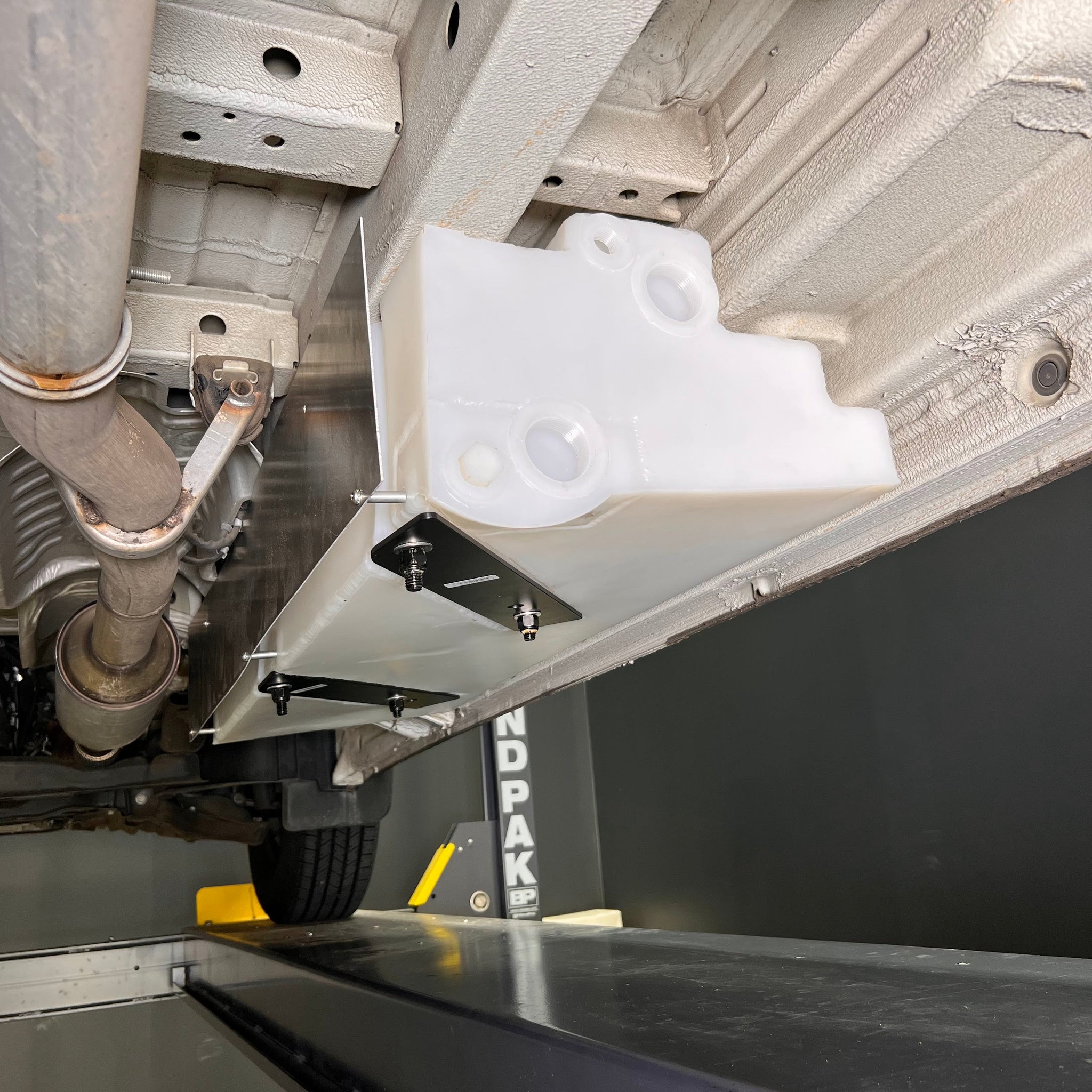

S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009 by S&B - installed
S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009 by S&B - close-up
S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009 by S&B - alternate
S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009 by S&B - side view
S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009 by S&B - rear view

S&B

S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 07-24 Mercedes Sprinter 144" & 170" - 10-3009

SKU: SKU: S&B10-3009

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
This item is classified as Oversized and may incur an additional handling fee at checkout depending on your shipping location. No additional fees apply for pickup orders.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue

Tank Dimensions:
45.33" Length x 15.5" Width x 8.31" Height

Tank is confirmed to fit with Owl Side Steps. Will not work with AMP steps. There is .8" between the tank and body. (where the side steps mount)

If you have a question on whether it will fit with your side steps, please text pictures to 909.675.1313.

Please confirm you have inboard holes for hangers before ordering. This tank will not fit gas vans or vans with a DEF tank mounted under the van or amp steps.

TEI Tested & Listed / RVIA Approved.



Product Specifications

Kus level sensor height 6"
Kus level sensor part number S5U-6 (Not Included)
Straps included YES
S&B Capacity (Approximate) 16
Tank type Passenger side undercarriage
Tei listed YES
Weight dry 20 LBS

Vehicle Fitment

Year Make Model Engine
2023-2026 Mercedes Sprinter 2.0L, Diesel
2007-2025 Mercedes Sprinter 3.0L, Diesel
