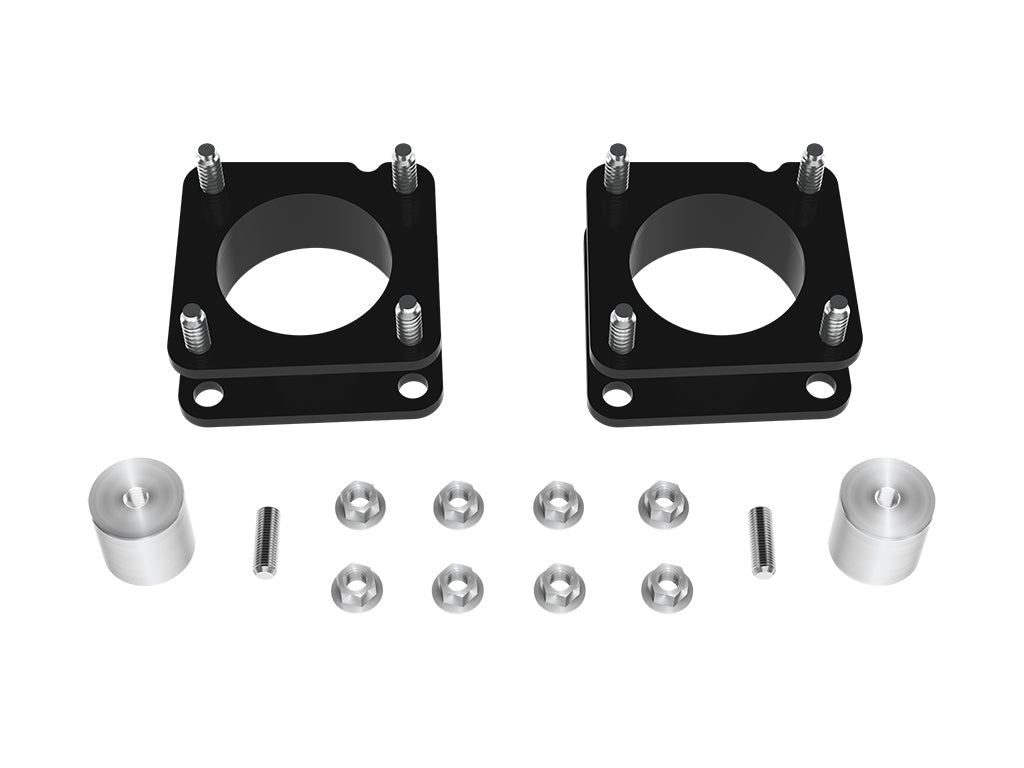

ICON 2022+ Toyota Tundra 2.25in Front Spacer Kit - IVD4111

This leveling kit for the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia is perfect for the budget-minded customer looking to raise the front of their truck to provide clearance for larger/more aggressive wheel and tire combinations without breaking the bank. ICON's 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia Leveling Kit utilizes a vehicle specific design formulated to work with existing factory components and does not require disassembly of the front coilover for installation. The included bump stop spacers ensure the suspension never over compresses and the overall design keep ball joints and tie rods from binding, preventing damage from off-road use possible with other top load leveling spacers. It is finished with black powder coat for added corrosion resistance and offers a clean, sleek look.

Features

• 2.25" increased ride front height
• Does not require disassembly of the shock for installation
• Vehicle specific design
• Black powder coat finish
• Bump stop spacer to keep shock from bottoming out
• Designed to keep ball joints and tie rods from binding

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset

Recommended Aftermarket Wheels: 18x9" w/ 6.00" Backspace / 25mm Offset

Recommended Aftermarket Wheels: 20x9" w/ 6.00" Backspace / 25mm Offset

Recommended Aftermarket Tires: 35" x 12.50" (Fender trimming and modifications will be required.)

APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension

APPLICATION NOTE #144: Not compatible with TRD Pro

APPLICATION NOTE #149: For 4WD models without TRD Off-Road Package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage.

APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Specifications

Documents

• IVD4111_REVA.pdf
