SKU: SKU: ICO58647-700

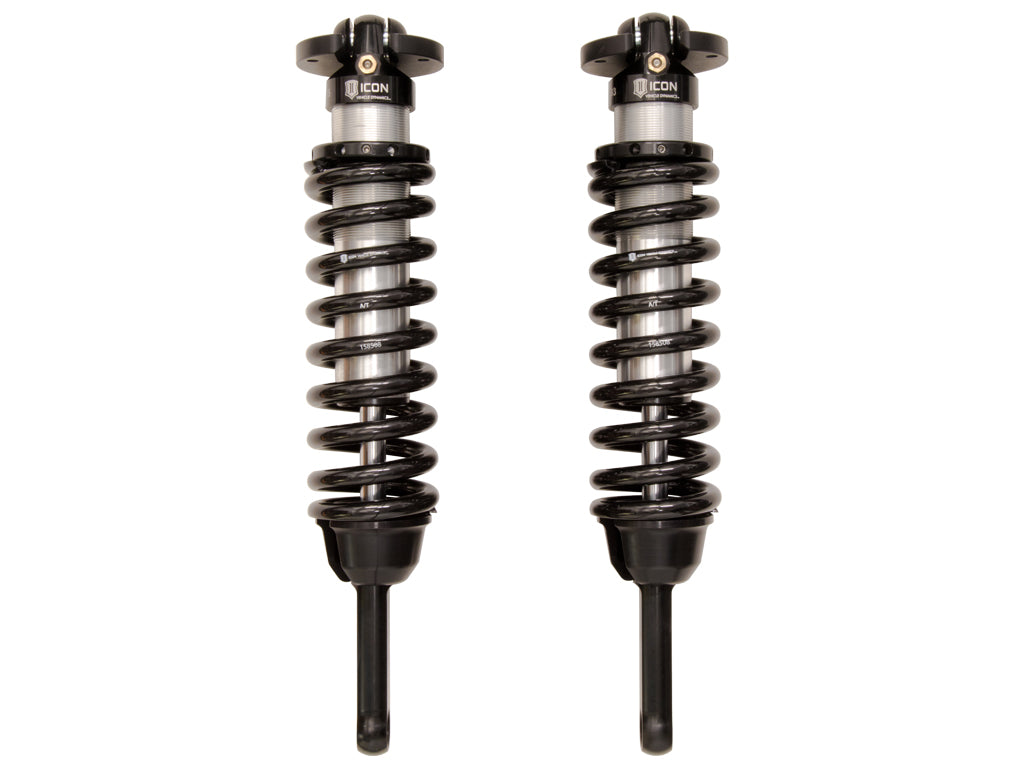

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel shock length yields the maximum travel possible with aftermarket front upper control arms and ICON’s Vehicle-specific valving along with the larger 2.5” shock body and increased piston area over stock components provide superior ride quality and suspension performance both on- and off-road. Coil springs with increased spring rate are included to help support added weight of accessories such as bumpers, winches, etc., and help ensure proper lift heights for heavier equipped vehicles. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT |
| Adjustable Damping | NO |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.42 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Extended Length | 22.57 IN |
| Gas Charged | yes |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3.5 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Rate Type | Linear |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
