SKU: SKU: ICOK53131

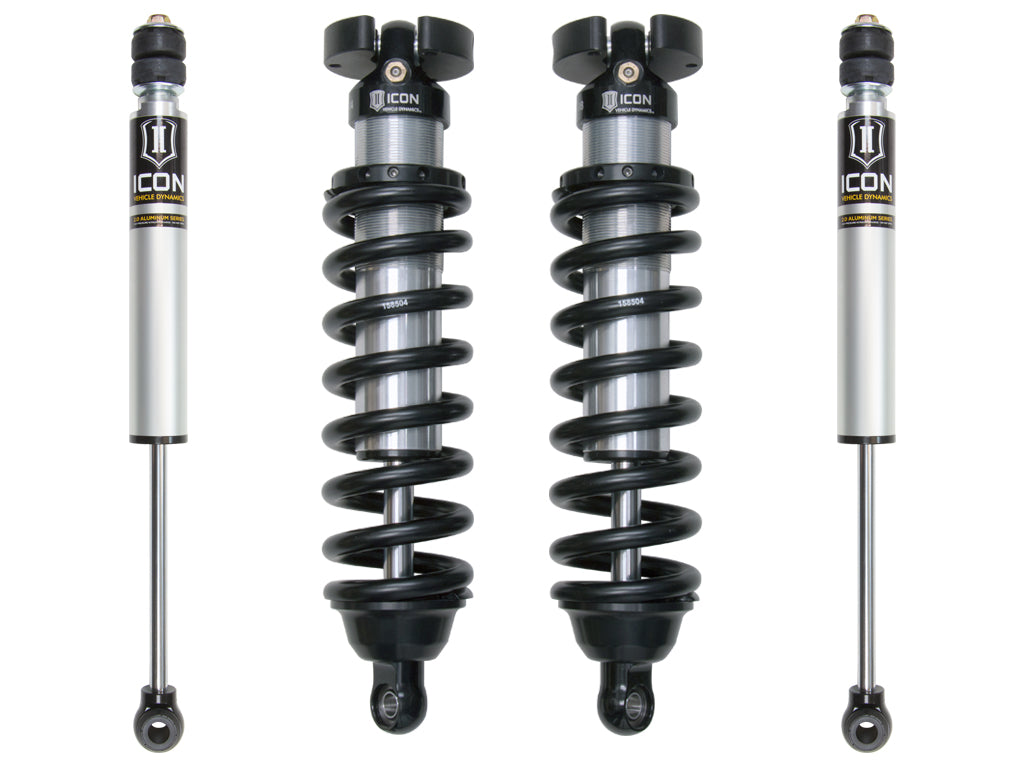

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor decades ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 1 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks. These components feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the handling characteristics of their 3rd Gen on the road while increasing overall performance in the dirt.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
| Add-On Part | 53015 - 96-02 4RUNNER 1" REAR COIL SPRING KIT |
| Add-On Part | 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 158508 - COIL SPRING 1400.0300.0700 BLACK |
| Add-On Part | 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Coil Quantity Front | 2 |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Front | 3 IN |
| Minimum Lift Front | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Emulsion |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Active or Passive Suspension | Passive |
