Zone Offroad 2017 Ford F-250/350 6in - Diesel - 2 Leaf Main - ZONF51N

SKU: SKU: ZORZONF51N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

I confirm I have reviewed the estimated date for shipping or in-store pickup and understand it is an approximation that may change.

You must acknowledge before adding to cart.

Please confirm by checking the box to proceed.

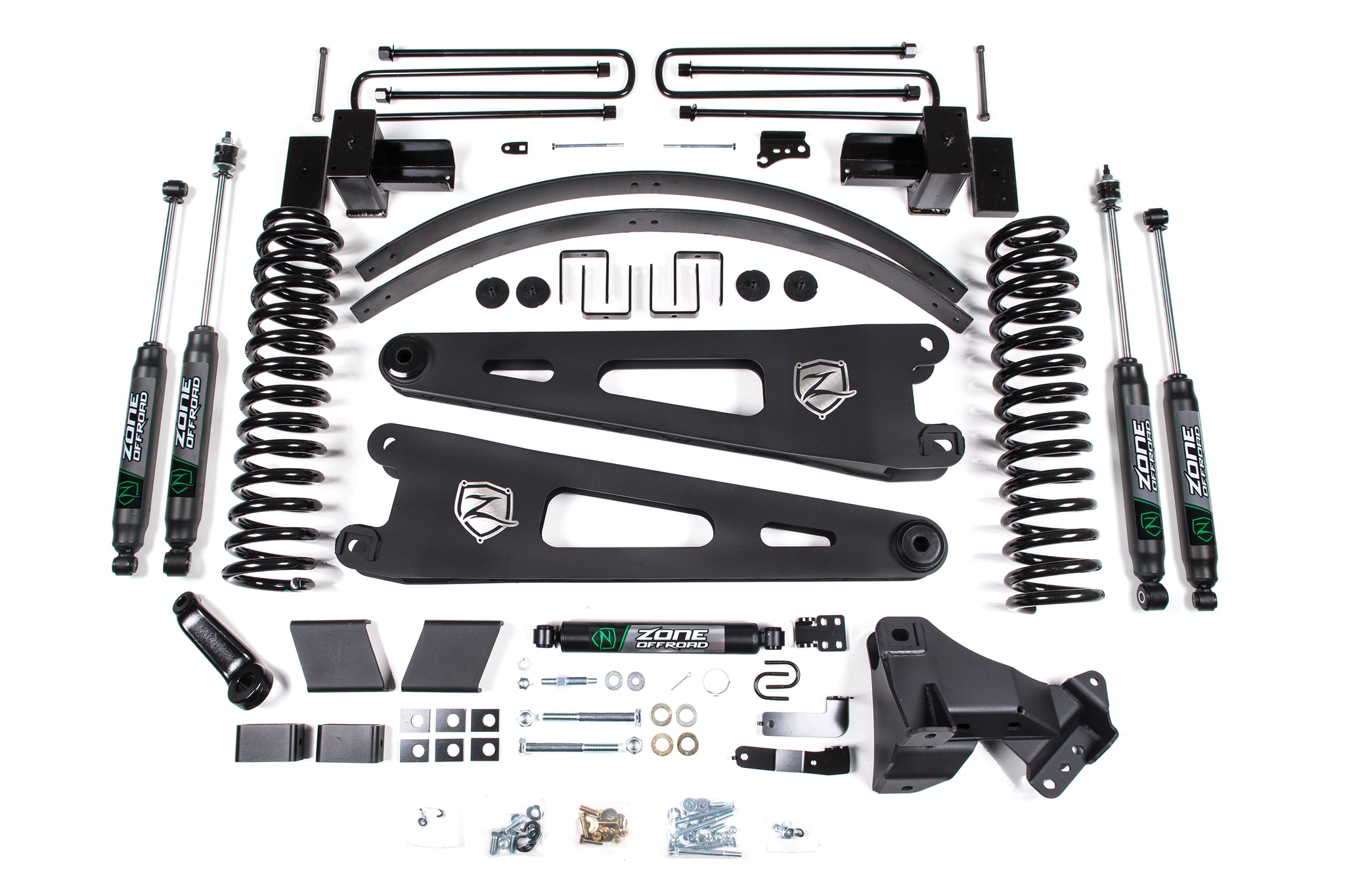

Take your Super Duty to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 38" tires.

Features

High strength front coil springs improve ride quality
HD radius arm to correct caster while maximizing ground clearance
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance

Specifications

Rear Lift Method	Add-A-Leaf & Cast Block
Requires Metal Cutting	No
Requires Welding	No
Type	Single Stabilizer
Wheel Size	17 x 10
Wheel Size 2	18 x 10
Wheel Size 3	20 x 10
Adjustable	No
Back Spacing	5"
Back Spacing 2	5"
Back Spacing 3	5"
Front Lift Height	6"
Front Lift Method	Coil Springs & Replacement Radius Arms
Installation Difficulty	3 out of 5
Installation Time	7 hrs
Lift Type	Lift Kit
Max Tire Size	38 x 13.5
Max Tire Size 2	38 x 13.5
Max Tire Size 3	38 x 13.5
Rear Lift Height	5"

Warranty: Limited

Documents

Installation Instructions (PDF)
