Zone Offroad 2016 Tacoma 4/3 Lift System - ZONT8N

SKU: SKU: ZORZONT8N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

I confirm I have reviewed the estimated date for shipping or in-store pickup and understand it is an approximation that may change.

You must acknowledge before adding to cart.

Please confirm by checking the box to proceed.

This item is classified as Oversized and may incur an additional handling fee at checkout depending on your shipping location. No additional fees apply for pickup orders.

I acknowledge that this item is oversized and agree to any applicable handling fees that may be applied at checkout.

You must acknowledge before adding to cart.

Please check the box to proceed.

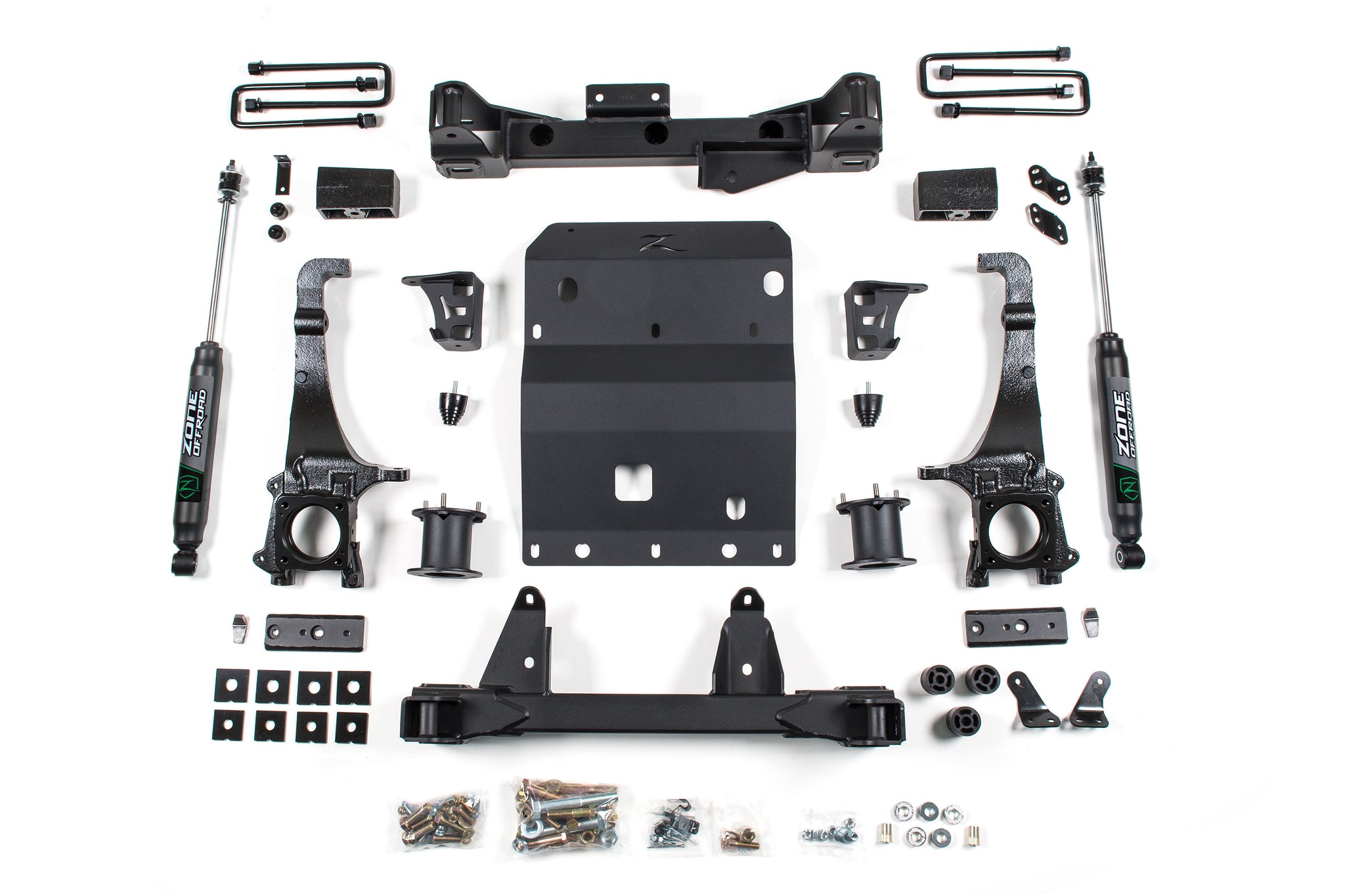

Take your Tacoma to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 33" tires.

Features

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Full width belly skid plate offers improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Bump stop, sway bar and brake line relocation brackets to correct operating angles

Specifications

Rear Lift Height	3"
Rear Lift Method	Cast Blocks
Requires Metal Cutting	No
Requires Welding	Yes
Wheel Size	18 x 9
Wheel Size 2	20 x 9
Wheel Size 3	22 x 9
Accommodates Factory Wheels	No
Adjustable	No
Back Spacing	4.5"
Back Spacing 2	4.5"
Back Spacing 3	4.5"
Finish	Powdercoat
Front Lift Height	4"
Front Lift Method	Strut Spacer & Cross-Member
Installation Difficulty	4 out of 5
Installation Time	7 hrs
Lift Type	Lift Kit
Max Tire Size	33 x 12.5
Max Tire Size 2	33 x 12.5
Max Tire Size 3	33 x 12.5

Warranty: Limited

Documents

Installation Instructions (PDF)
