Zone Offroad 15-19 Ford F-150 6in Lift System - ZONF53N

SKU: SKU: ZORZONF53N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

I confirm I have reviewed the estimated date for shipping or in-store pickup and understand it is an approximation that may change.

You must acknowledge before adding to cart.

Please confirm by checking the box to proceed.

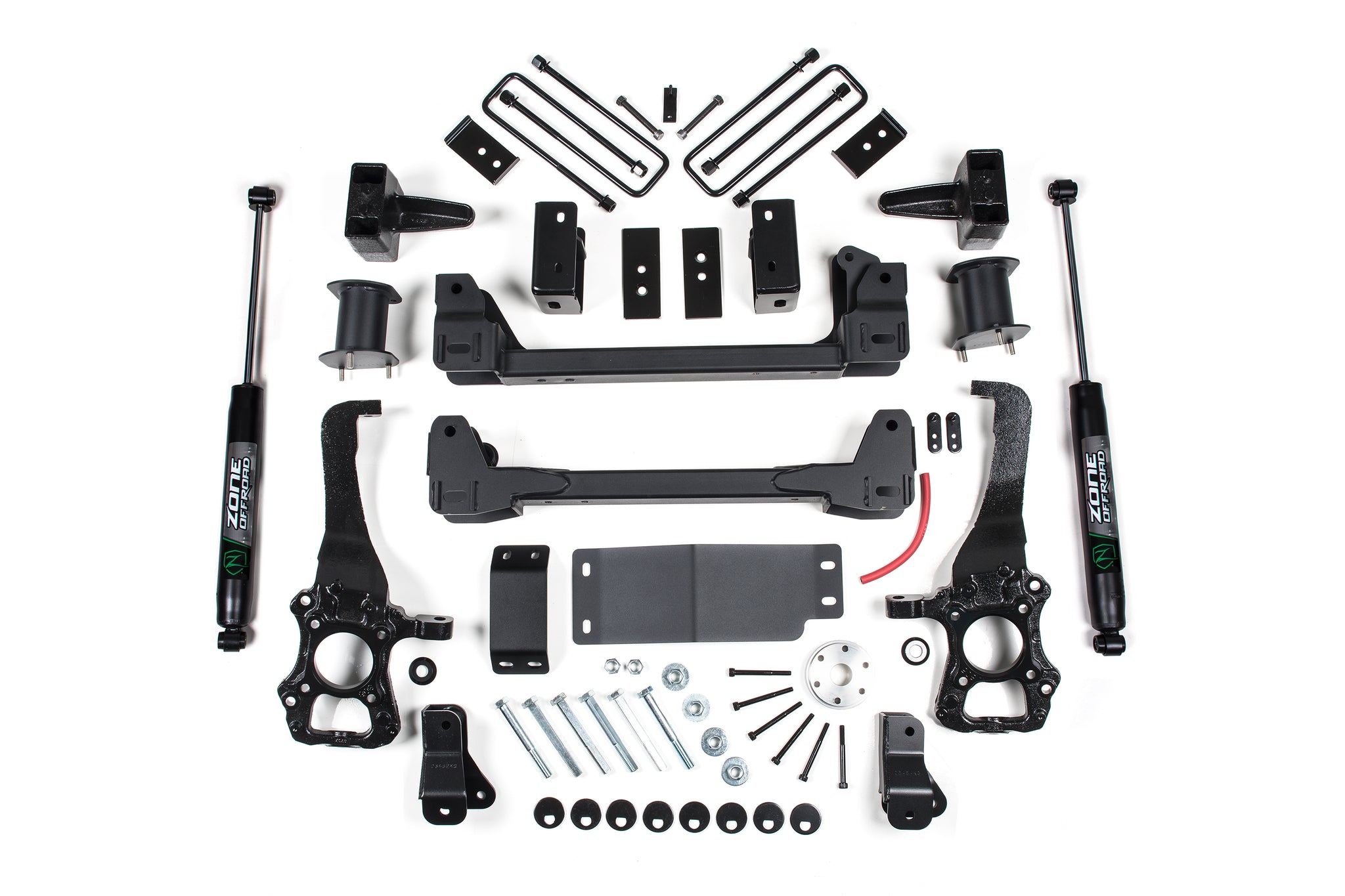

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line and bump stop relocation brackets to correct operating angles

Specifications

Rear Lift Method	Cast Blocks
Requires Metal Cutting	No
Requires Welding	No
Wheel Size	18 x 9
Wheel Size 2	20 x 9
Wheel Size 3	22 x 9
Accommodates Factory Wheels	See Notes
Adjustable	No
Back Spacing	5.5"
Back Spacing 2	5.5"
Back Spacing 3	5.5"
Front Lift Height	6"
Front Lift Method	Knuckle & Strut Spacer
Installation Difficulty	4 out of 5
Installation Time	9 hrs
Lift Type	Lift Kit
Max Tire Size	37 x 12.5
Max Tire Size 2	37 x 12.5
Max Tire Size 3	37 x 12.5
Rear Lift Height	5"

Warranty: Limited

Documents

Installation Instructions (PDF)
