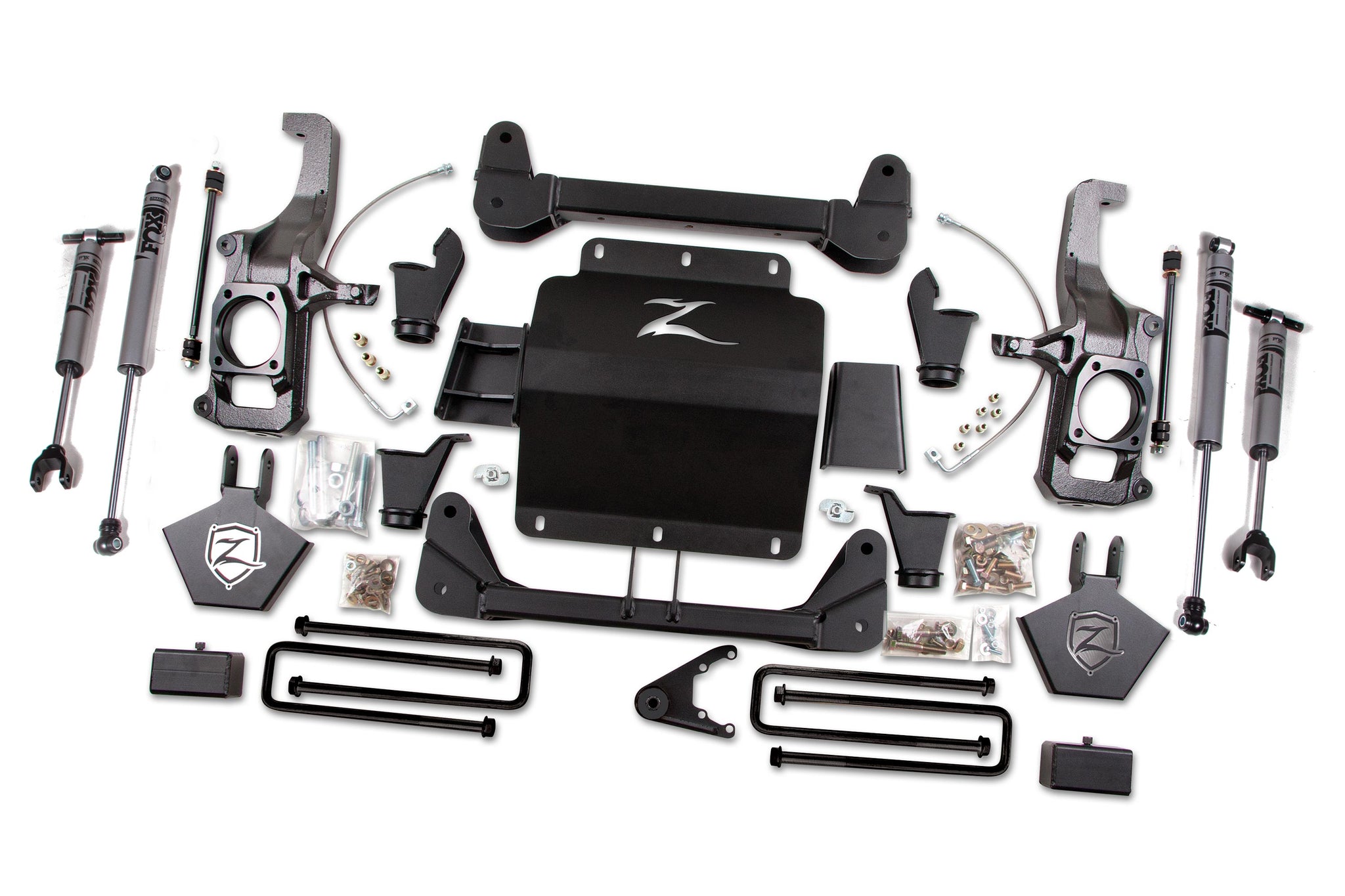

Zone Offroad 11-19 GM HD 5in System w/ Overload Fox - ZONC13F

SKU: SKU: ZORZONC13F

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

I confirm I have reviewed the estimated date for shipping or in-store pickup and understand it is an approximation that may change.

You must acknowledge before adding to cart.

Please confirm by checking the box to proceed.

Turn heads and drop jaws with this 5" lift kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 2011 - 2019 Chevy/GM 2500HD /3500HD truck. If you’re going to do it, do it right.

Features

Heavy-duty differential skid slate improves offroad protection
High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry
High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles
No differential trimming required
Rear lift block and longer U-bolts for easy installation and level stance

Specifications

Installation Difficulty	4 out of 5
Wheel Size 3	20 x 9
Wheel Size 2	20 x 9
Wheel Size	17 x 9
Requires Welding	No
Requires Metal Cutting	Yes
Max Tire Size 3	35 x 12.5
Max Tire Size 2	285 x 65
Max Tire Size	35 x 12.5
Material	Steel
Lift Type	Lift Kit
Rear Lift Method	Cast Blocks
Front Lift Method	Torsion Bar Drop
Rear Lift Height	3"
Front Lift Height	5"
Adjustable	No
Installation Time	7 hrs
Accommodates Factory Wheels	See Notes
Finish	Powdercoat
Back Spacing 3	6"
Back Spacing 2	6"
Back Spacing	4.75"

Warranty: Limited

Documents

Installation Instructions (PDF)
