Zone Offroad 11-14 Ford SuperDuty 6in Gas w/Overload - ZONF33N

SKU: SKU: ZORZONF33N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

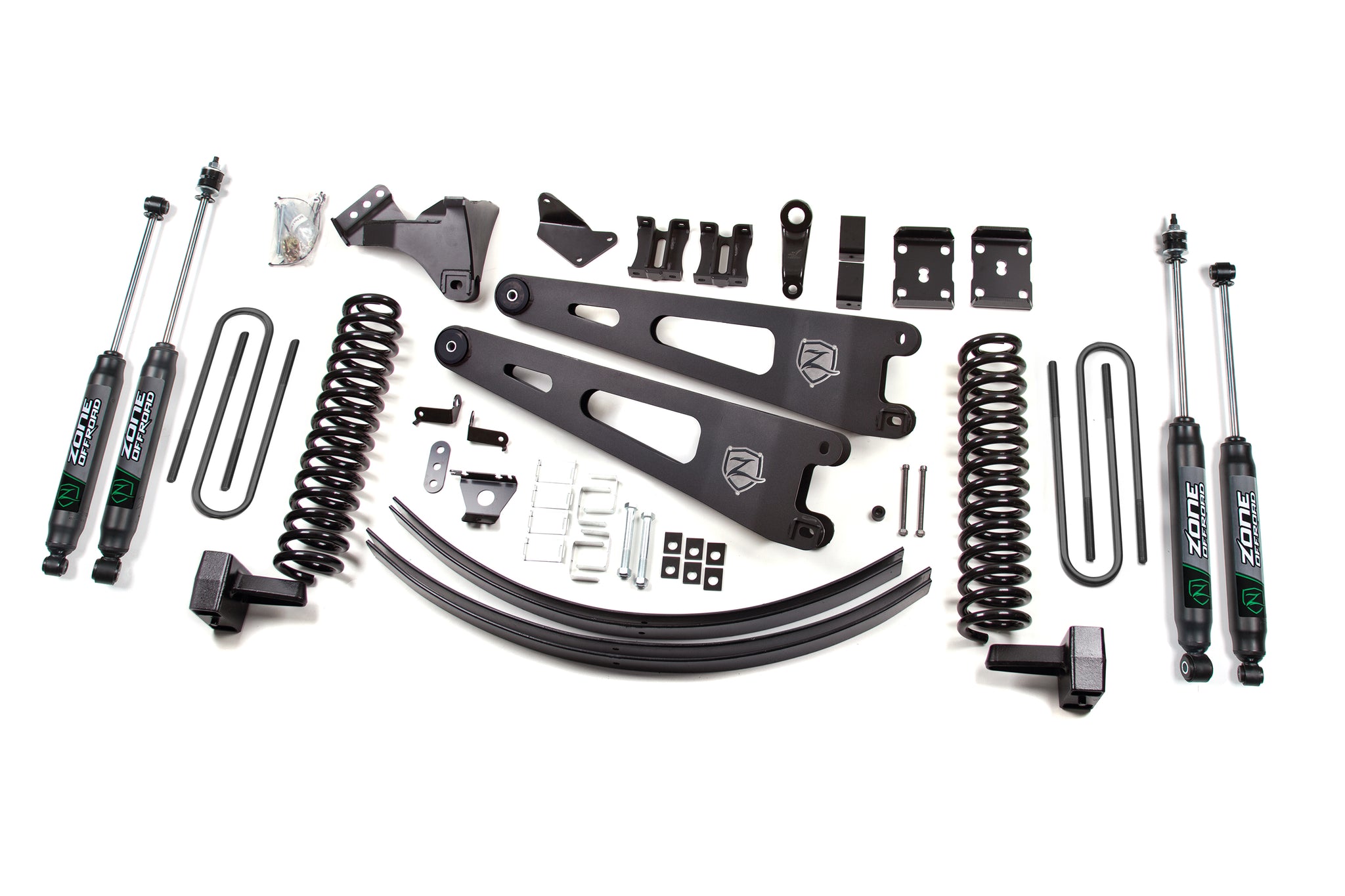

Lift your Super Duty into a class of it’s own with this 6" radius arm lift kit for an attention grabbing, smooth riding, complete, and affordable system. You’ll clear huge 37" tires for the look and performance you want from your 4WD 2011 - 2016 Ford F-250 / F-350.

Features

  • Brake line relocation brackets allow re-use of factory brake lines
  • Bump stop extensions properly limit up-travel, protecting your vehicle
  • Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity
  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits
  • High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance
  • Rear lift block and longer U-bolts for easy installation and level stance
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics
  • Sway bar relocation brackets maintain operating angle for reduced body roll

Specifications

Rear Lift Method Dual Add-A-Leafs & Block Kit
Requires Metal Cutting No
Requires Welding No
Wheel Size 17 x 9
Wheel Size 2 18 x 9
Wheel Size 3 20 x 9
Accommodates Factory Wheels See Notes
Adjustable No
Back Spacing 4.5"
Back Spacing 2 4.5"
Back Spacing 3 4.5"
Finish Powdercoat
Front Lift Height 6"
Front Lift Method Radius Arm Drop
Installation Difficulty 3 out of 5
Installation Time 6 hrs
Lift Type Lift Kit
Max Tire Size 37 x 12.5
Max Tire Size 2 37 x 12.5
Max Tire Size 3 37 x 12.5
Rear Lift Height 4"

Warranty: Limited
