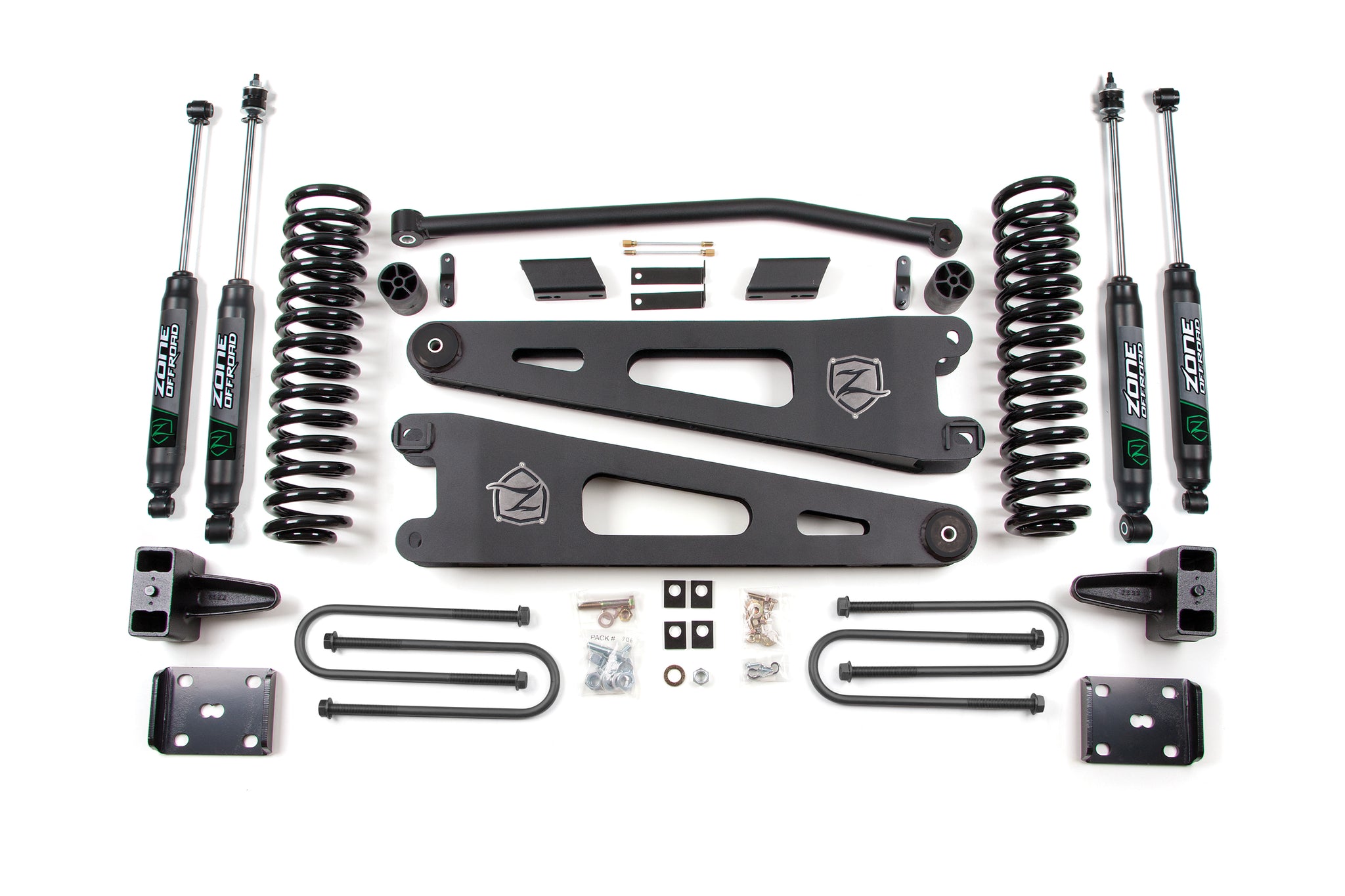

Zone Offroad 11-12 Ford SuperDuty 4in Radius Arm System - Gas - ZONF26N

SKU: SKU: ZORZONF26N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

I confirm I have reviewed the estimated date for shipping or in-store pickup and understand it is an approximation that may change.

You must acknowledge before adding to cart.

Please confirm by checking the box to proceed.

Turn heads and stand out from the crowd with this 4" Radius Arm Suspension Kit that lets you clear 35" tires. You'll definitely make a statement with this kit, complete with rear cast blocks for your 4WD 2011 - 2016 Ford F-250 / F-350.

Features

Full length replacement coil springs add additional ride height while maintaining ride quality
Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement
High-strength, 1/4" steel construction radius arms correct caster, improves tire clearance, and maximizes ground clearance
High-strength, black e-coated U-bolts
Rear lift block and longer U-bolts for easy installation and level stance

Specifications

Rear Lift Method	Cast Blocks
Requires Metal Cutting	No
Requires Welding	No
Wheel Size	17 x 9
Wheel Size 2	18 x 9
Wheel Size 3	20 x 9
Accommodates Factory Wheels	See Notes
Adjustable	No
Back Spacing	4.5"
Back Spacing 2	4.5"
Back Spacing 3	4.5"
Finish	Powdercoat
Front Lift Height	4"
Front Lift Method	Radius Arms
Installation Difficulty	2 out of 5
Installation Time	6 hrs
Lift Type	Lift Kit
Max Tire Size	35 x 12.5
Max Tire Size 2	35 x 12.5
Max Tire Size 3	35 x 12.5
Rear Lift Height	3"

Warranty: Limited

Documents

Installation Instructions (PDF)
