Photo - Primary

Zone Offroad 09-12 Ford F-150 6in Suspension System - ZONF10N

SKU: SKU: ZORZONF10N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

I confirm I have reviewed the estimated date for shipping or in-store pickup and understand it is an approximation that may change.

You must acknowledge before adding to cart.

Please confirm by checking the box to proceed.

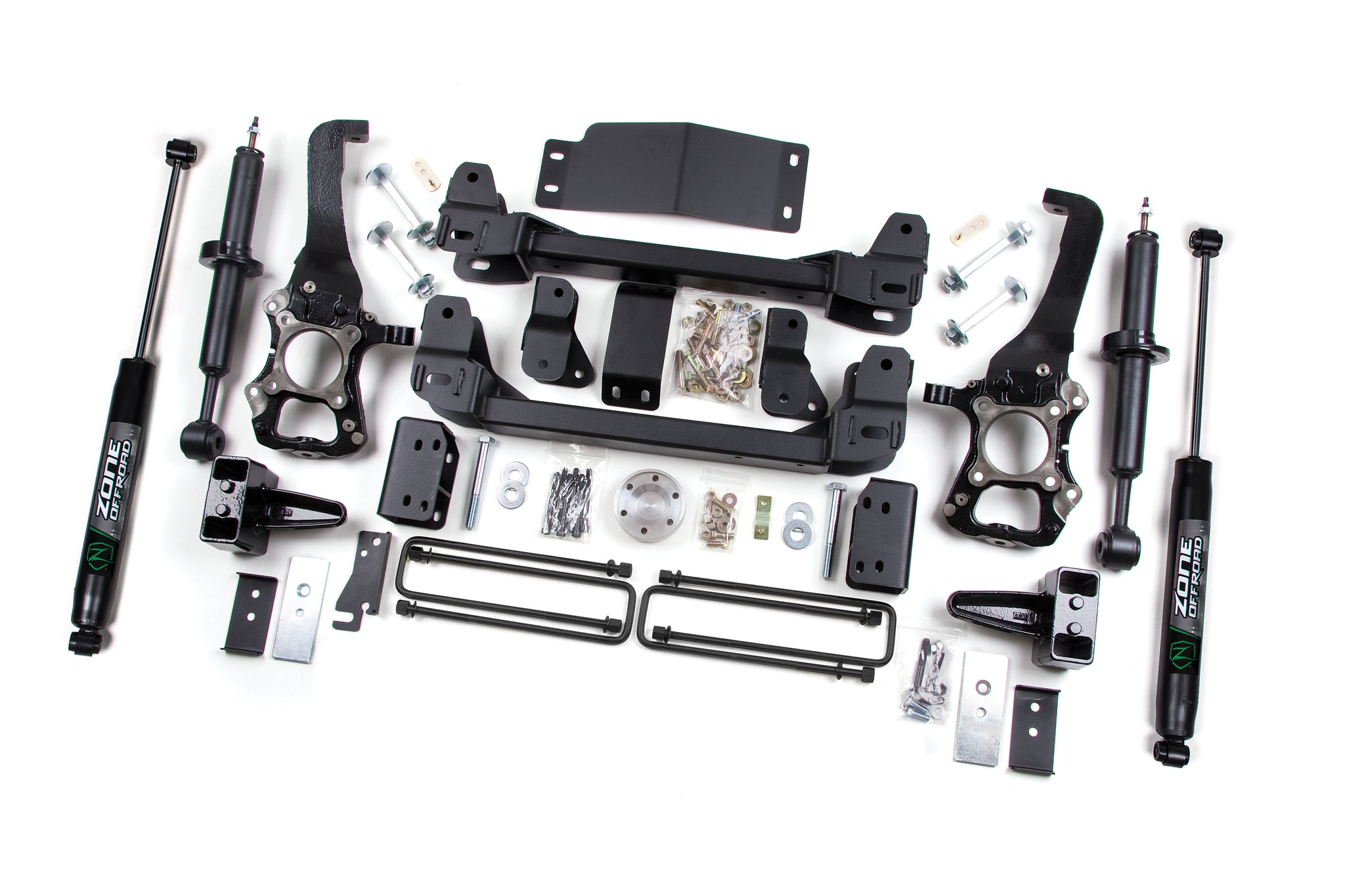

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear a block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features

Heavy-duty differential skid slate improves offroad protection
High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
High-pressure, extended length, replacement front struts improve performance on and offroad
High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles
Lift system does not change the front track width of the vehicle

Specifications

Rear Lift Method	Cast Blocks
Requires Metal Cutting	No
Requires Welding	No
Wheel Size	18 x 9
Wheel Size 2	18 x 9
Wheel Size 3	20 x 9
Accommodates Factory Wheels	No
Adjustable	No
Back Spacing	5"
Back Spacing 2	5"
Back Spacing 3	5"
Front Lift Height	6"
Front Lift Method	Knuckle & Strut Spacer
Installation Difficulty	3 out of 5
Installation Time	8 hrs
Lift Type	Lift Kit
Max Tire Size	37 x 12.5
Max Tire Size 2	37 x 12.5
Max Tire Size 3	37 x 12.5
Rear Lift Height	5"

Warranty: Limited

Documents

Installation Instructions (PDF)
