Zone Offroad 05-07 Ford SuperDuty 6in Gas - ZONF39N

SKU: SKU: ZORZONF39N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

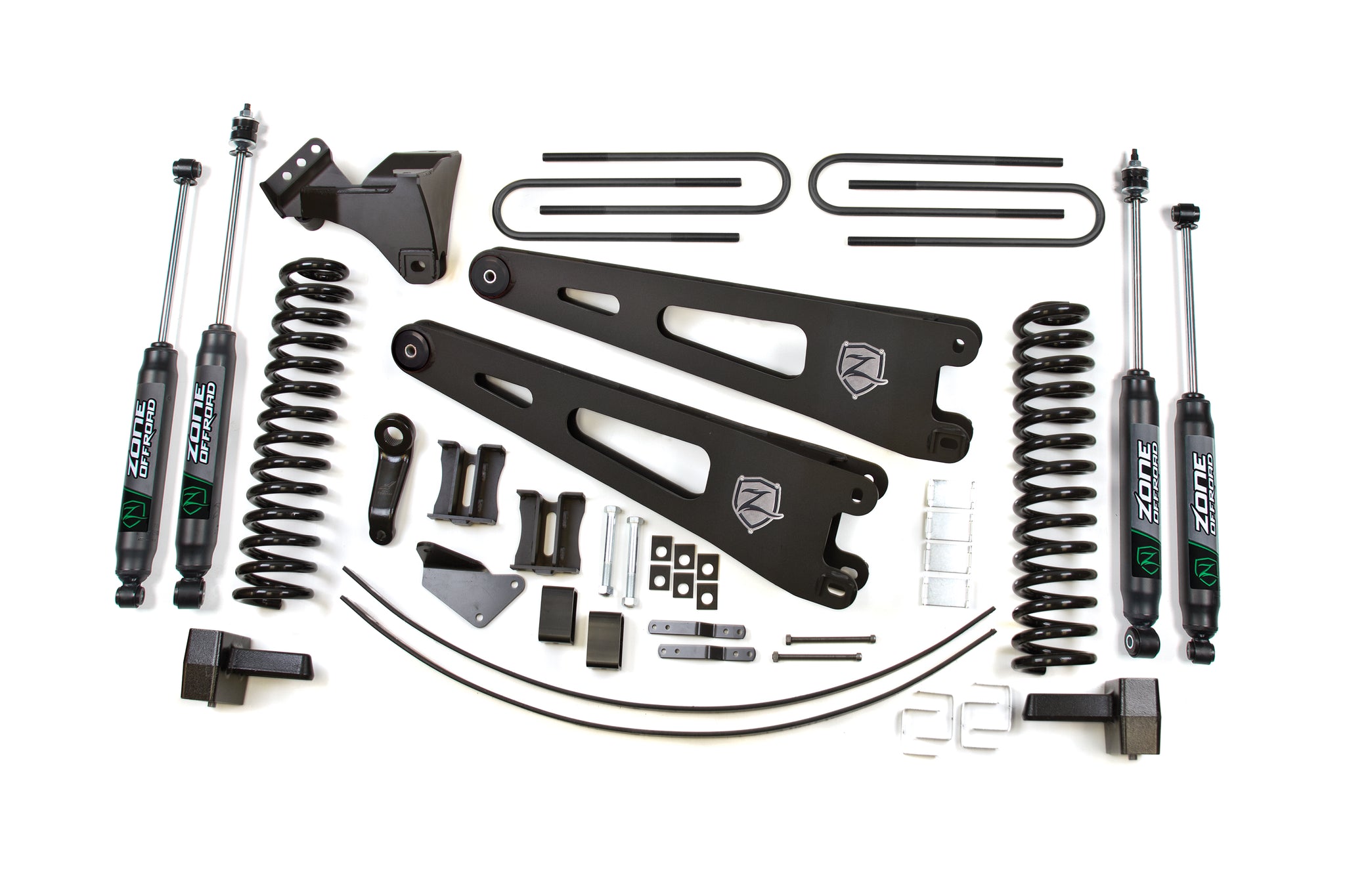

Prepare to have everyone looking up at you with this 6" Radius Arm Lift Kit that lets you clear huge 37" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your 4WD 2005 - 2007 Ford F-250 / F-350.

Features

  • Brake line relocation brackets allow re-use of factory brake lines
  • Bump stop extensions properly limit up-travel, protecting your vehicle
  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits
  • High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance
  • Rear Add-A-Leaf Kit provides additional lift and improves weight capacity
  • Rear lift block and longer U-bolts for easy installation and level stance
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics
  • Sway bar relocation brackets maintain operating angle for reduced body roll

Specifications

Rear Lift Method Add-A-Leaf & Cast Block
Requires Metal Cutting No
Requires Welding No
Wheel Size 17 x 9
Wheel Size 2 18 x 9
Wheel Size 3 20 x 9
Accommodates Factory Wheels See Notes
Adjustable No
Back Spacing 4.5"
Back Spacing 2 4.5"
Back Spacing 3 4.5"
Finish Powdercoat
Front Lift Height 6"
Front Lift Method Radius Arm Drop
Installation Difficulty 3 out of 5
Installation Time 6 hrs
Lift Type Lift Kit
Max Tire Size 37 x 12.5
Max Tire Size 2 37 x 12.5
Max Tire Size 3 37 x 12.5
Rear Lift Height 4"

Warranty: Limited
