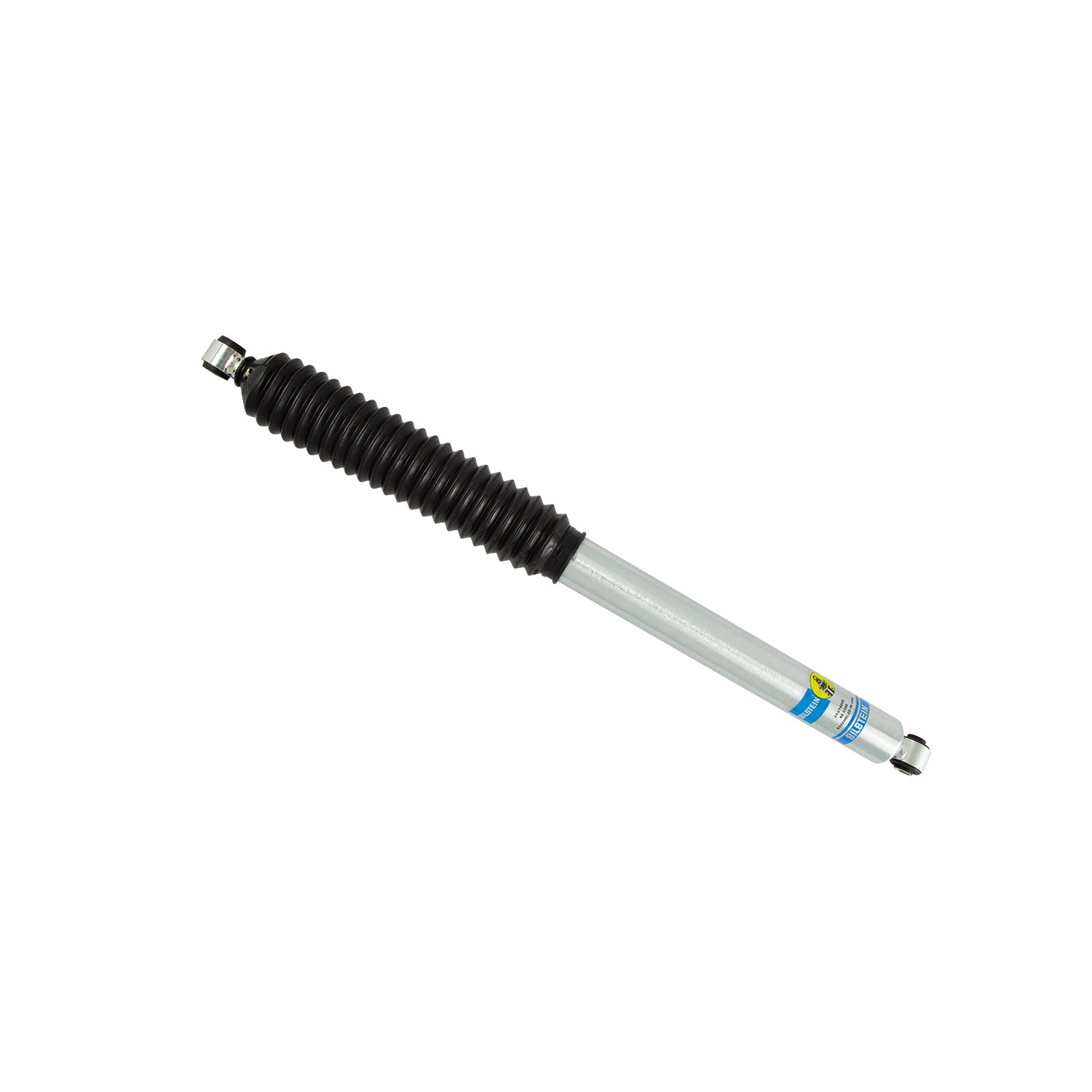

Bilstein 5100 Series 17-18 Ford F250/350 Super Duty Rear 46mm Monotube Shock Absorber - 24-274968

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Internal Design: Monotube
• Series: B8 5100
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Stroke/Travel Length (in): 12.36
• Shaft Diameter: 14mm
• Collapsed Length (in): 18.74
• Extended Length (in): 31.13
• Stroke/Travel Length (mm): 313.9
• Collapsed Length (mm): 476.0
• Extended Length (mm): 790.7
• Reservoir: No
• Body Design: 46mm ID Smooth Body (Non-Coilover)
• Boot Included: Black Bellows
• Upper Mount Type: Eye 16mm
• Finish: Zinc Plated
• Lower Mount Type: Eye 14mm

Application

• Ford F-250 Super Duty 2017-2026, F-350 Super Duty 2017-2026
