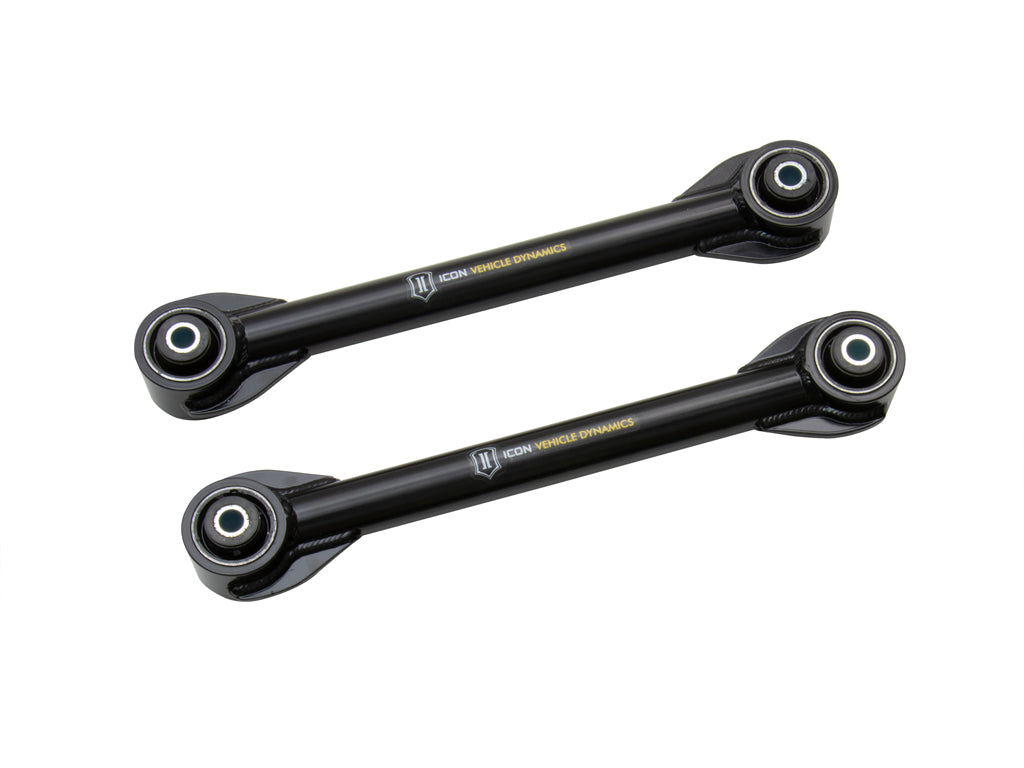

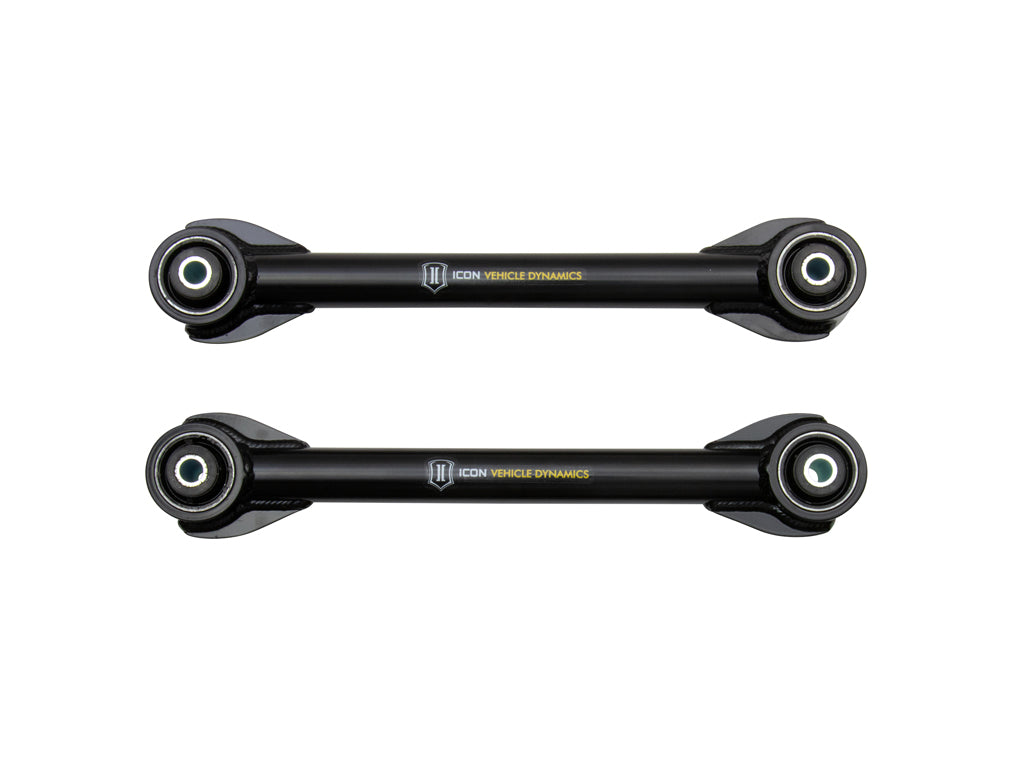

ICON 2020+ Jeep JT Tubular Rear Upper Fixed Link Kit - 22064T

ICON’s tubular steel rear upper link arms for the 2020-2023 Jeep Gladiator and 2019-2023 Ram 1500 are a significant upgrade over the factory units due to increases in strength and suspension performance. These components are made from CNC machined and notched 1026 DOM steel and welded in-house, providing a major improvement over the construction of the stock units. This rear upper link arm kit features multi durometer bushings that allow for noise free operation, reduced deflection, and maximum angularity without the need for periodic greasing and/or other maintenance.The quality bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

Features

• CNC machined & notched 1026 DOM steel construction
• Multi durometer bushing for noise free operation and maximum angularity
• No grease required for life of bushings
• ICON1K tested in extreme off-road conditions
• Fabricated components covered under ICON's lifetime warranty

APPLICATION NOTE #105: Not for vehicles with rear factory air ride

TECH NOTE: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels

TECH NOTE: Compatible with 0-3" of rear lift on most Ram 1500 submodels

TECH NOTE: Compatible with 0-2.5" of rear lift on 2019-2023 Ram 1500 Rebel

TECH NOTE: Will not fit 2021-2023 Ram 1500 TRX

TECH NOTE: Will not fit 2019-2023 Ram 1500 Classic models

Specifications

Documents

• I22064T_REVA.pdf
