4" front / 2" rear SST lift kit with Bilstein 5100 rear shocks for the 2009-2025 Ram 1500 Classic 4WD.
An upgraded version of the popular 69-1040 kit, the 69-1041 adds Gen 2 DOM tube-steel upper control arms with TCT maintenance-free pivot bushings and heavy-duty 1-ton ball joints, plus Bilstein 5100 series rear shocks tuned for 0-2" of rear lift. Bolt-on installation with minimal modifications.
Fits: 2009-2018 and 2019-2025 Classic-body Ram 1500 4WD. Not for trucks with factory air suspension.
Features
- 4" of front lift and 2" of rear lift
- Gen 2 tube-steel upper control arms with maintenance-free TCT bushings and 1-ton ball joints
- Includes Bilstein 5100 series rear shocks
- Bolt-on installation, minimal modifications required

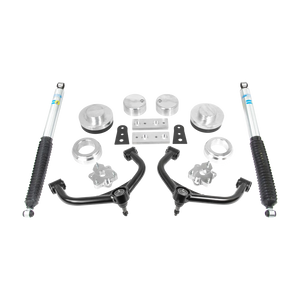

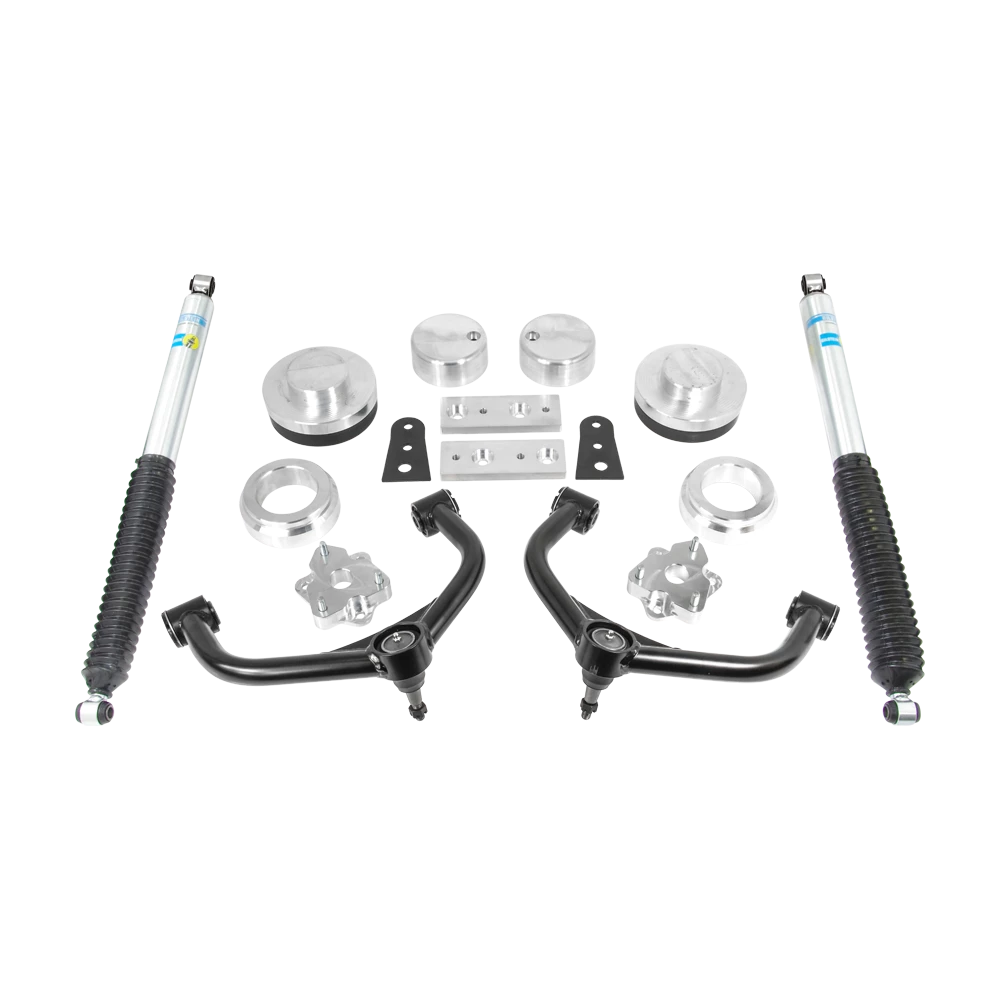

Kit Includes
- Two DOM tube-steel upper control arms with 1-ton ball joints
- Two CNC billet aluminum front strut extensions and front pre-load spacers
- Two rear coil spring spacers with polyurethane isolators
- Two bump stop extensions and sway bar drop spacers
- Two Bilstein 5100 series rear shocks
Tire Fitment
Fits tires up to 35" in diameter. A 35x12.50 requires a 9" wide wheel at 0 offset; a 295/65-20 requires no less than +18 offset.
Notes
Not compatible with factory air suspension. Single-cab configuration has not been validated by ReadyLIFT. Estimated install time is about 7.5 hours (excluding alignment).
