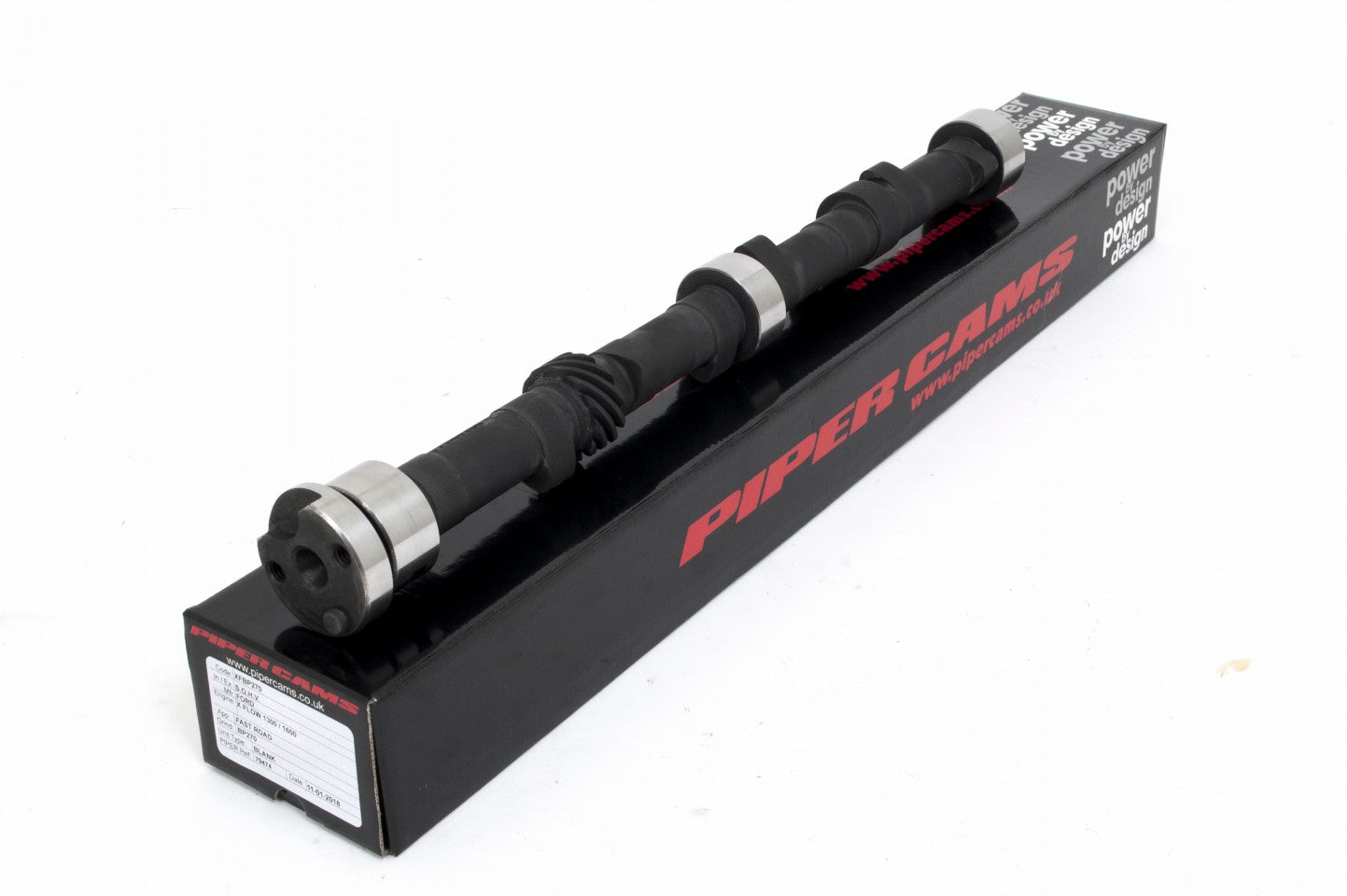

Piper Cams Camshaft - Mild Road (Ford)

SKU: SKU: XFBP255B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP255.

Application: Mild Road.

Unit Type: Blank.

Ideal for Autotest where low down torque is required. No other engine mods required.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Mild Road
Power Band 1000-6000
Power Increase 8BHP
Duration Inlet 260°
Duration Exhaust 260°
Valve Inlet Lift .384" 9.75mm
Valve Exhaust Lift .384" 9.75mm
Timing Inlet 21 - 59
Timing Exhaust 59 - 21
Full Inlet Lift 109°
TDC Inlet Lift .048" 1.22mm
TDC Exhaust Lift .048" 1.22mm
Valve Inlet Clearance .018" .45mm
Valve Exhaust Clearance .018" .45mm

Vehicle Application

  • FORD Xflow / KENT Engine 1.3 / 1.6
