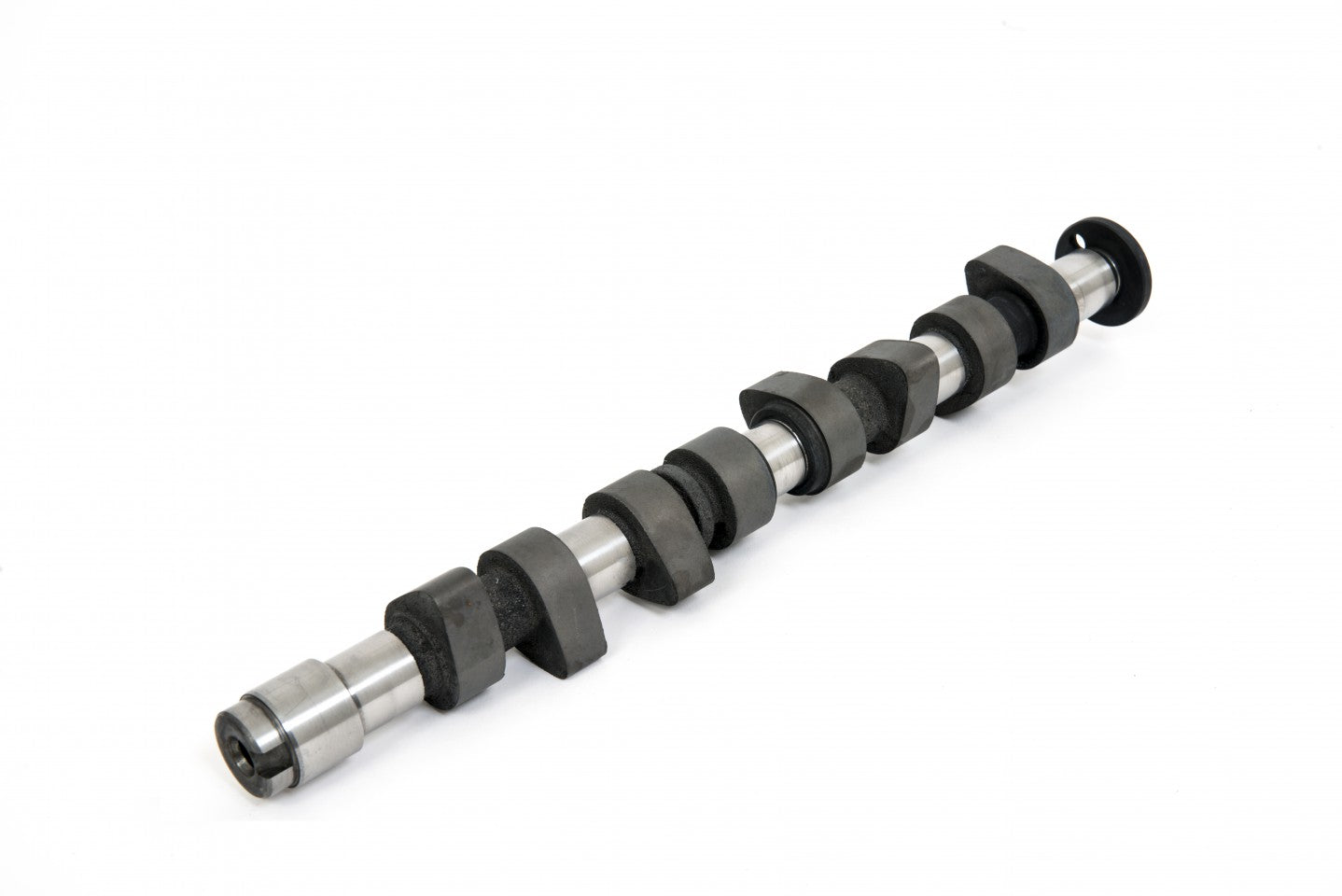

Piper Cams Camshaft - Ultimate Road (V.A.G.)

SKU: SKU: VPHBP285HB

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP285H.

Application: Ultimate Road.

Unit Type: Blank.

Designed to be used in engines utilising Hydraulic followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Ultimate Road
Power Band 2000-7200
Power Increase 12BHP
Duration Inlet 268°
Duration Exhaust 268°
Valve Inlet Lift .428" 10.87mm
Valve Exhaust Lift .428" 10.87mm
Timing Inlet 26 - 62
Timing Exhaust 62 - 26
Full Inlet Lift 108°
TDC Inlet Lift .069" 1.75mm
TDC Exhaust Lift .069" 1.75mm
Valve Inlet Clearance HYDRAULIC
Valve Exhaust Clearance HYDRAULIC

Vehicle Application

  • VAG POLO / GOLF 1.4 & G40 Hydraulic
