SKU: SKU: V628BP285BL
Profile: BP285.
Application: Ultimate Road.

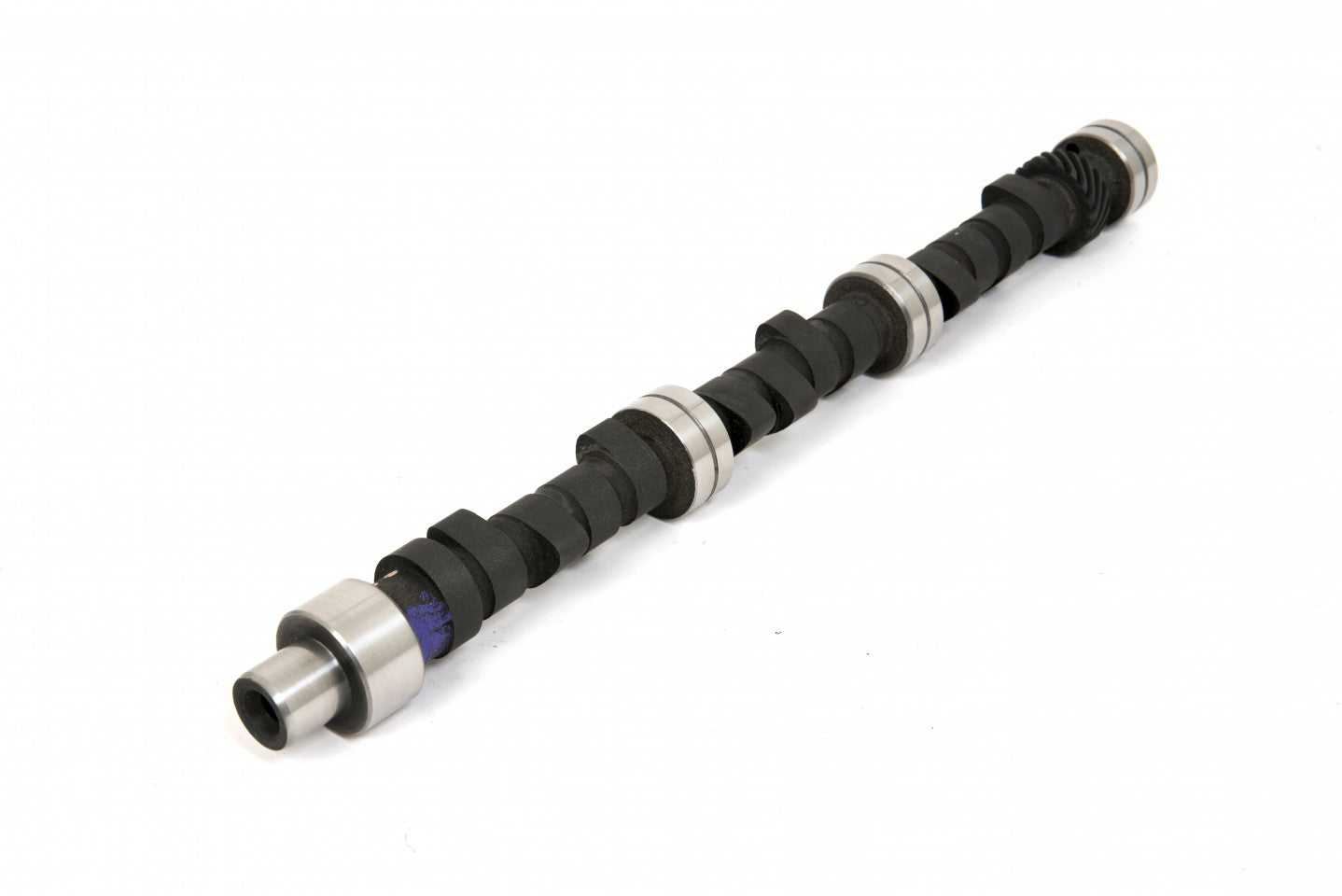

Unit Type: Large Bearing Blank.
Note: This is to suit post 1982 engines requiring 1.730" (43.90MM) 'Large Bearing' camshafts.
Download:-
Right click the link and select ‘Save link as’ to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-6500 |
| Power Increase | 20BHP |
| Duration Inlet | 276° |
| Duration Exhaust | 276° |
| Valve Inlet Lift | .422" 10.72mm |
| Valve Exhaust Lift | .422" 10.72mm |
| Timing Inlet | 26 - 70 |
| Timing Exhaust | 70 - 26 |
| Full Inlet Lift | 112° |
| TDC Inlet Lift | .052" 1.32mm |
| TDC Exhaust Lift | .050" 1.27mm |
| Valve Inlet Clearance | .012" .30mm |
| Valve Exhaust Clearance | .014" .35mm |
