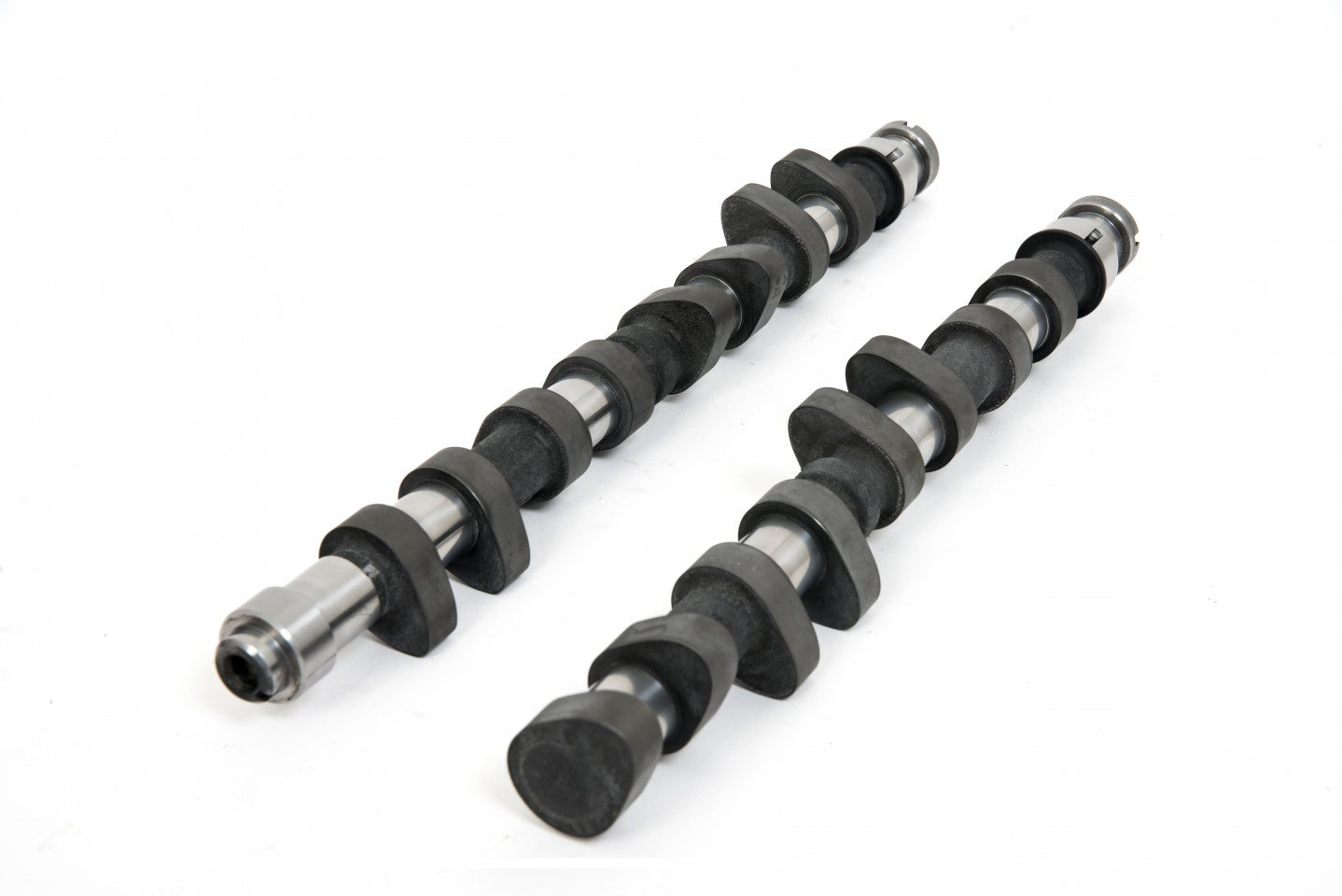

SKU: SKU: V16VBP320MB
Profile: BP320M.
Application: Race.
Unit Type: Blank.
Note:Piper FOLVW16M Mechanical followers required.
Note: Vernier sprockets are required, sold separately. PULSV16V.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Race |
| Power Band | 4000-8000 |
| Duration Inlet | 290° |
| Duration Exhaust | 290° |
| Valve Inlet Lift | .460" 11.68mm |
| Valve Exhaust Lift | .458" 11.63mm |
| Timing Inlet | 43 - 67 |
| Timing Exhaust | 69 - 41 |
| Full Inlet Lift | 102° |
| Full Exhaust Lift | 104° |
| TDC Inlet Lift | .175" 4.45mm |
| TDC Exhaust Lift | .163" 4.14mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
