SKU: SKU: SBJAG6BP330
Profile: BP330.
Application: Ultimate Race.
Unit Type: Steel Billet.
Note: This profile is available on EN40B Steel Billet only.

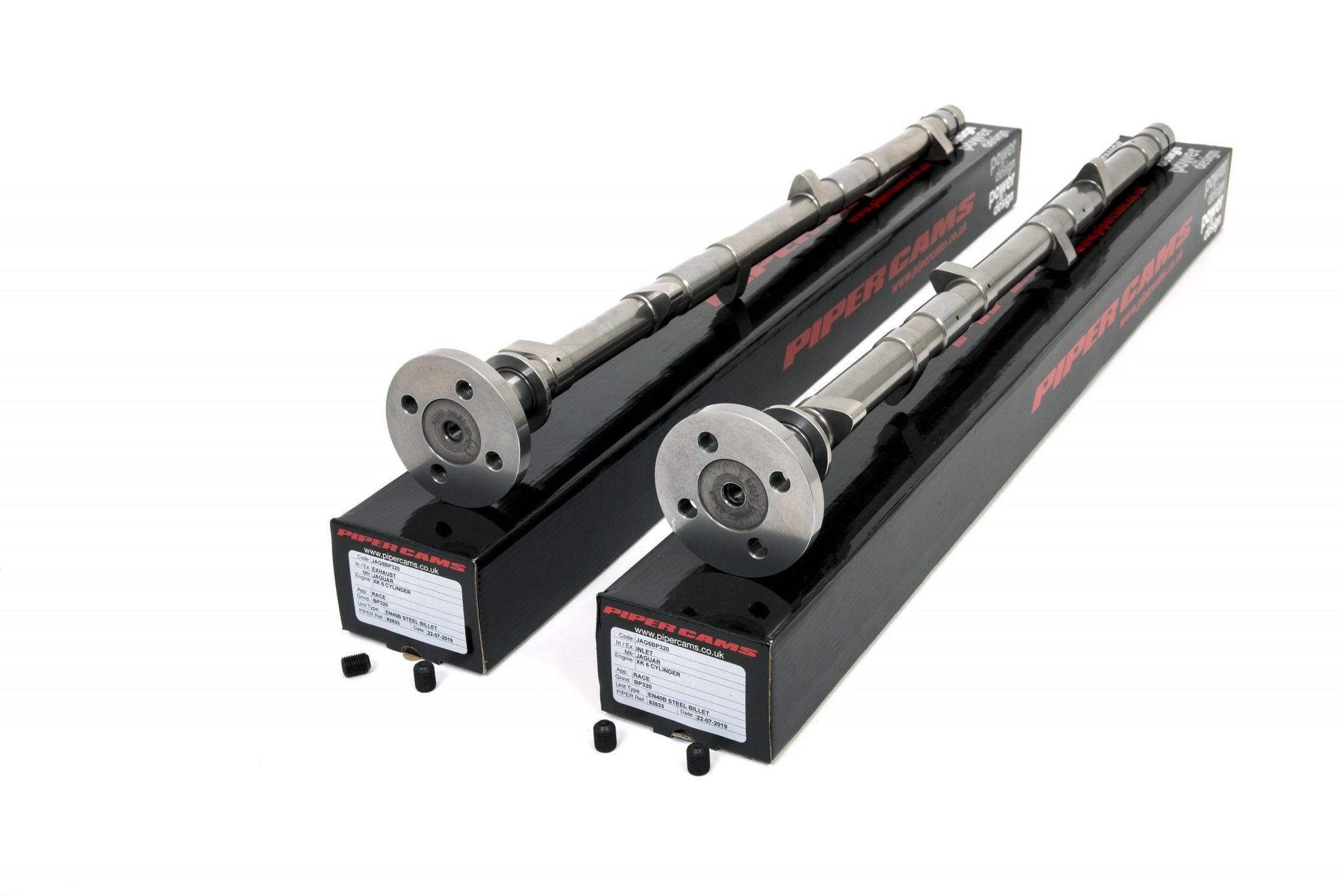

Note: Product image shows optional Tribo-Finishing AKA 'Super-Finishing' which is carried out In-House by request, and incurs an additional charge. Please Contact Us prior to ordering if this finish is required.
Download:-
Right click link and select 'Save link as' to download.
Click link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Race |
| Power Band | 3500-8000 |
| Duration Inlet | 296° |
| Duration Exhaust | 292° |
| Valve Inlet Lift | .520" 13.21mm |
| Valve Exhaust Lift | .480" 12.20mm |
| Timing Inlet | 42 - 74 |
| Timing Exhaust | 72 - 40 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .195" 4.96mm |
| TDC Exhaust Lift | .162" 4.12mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
