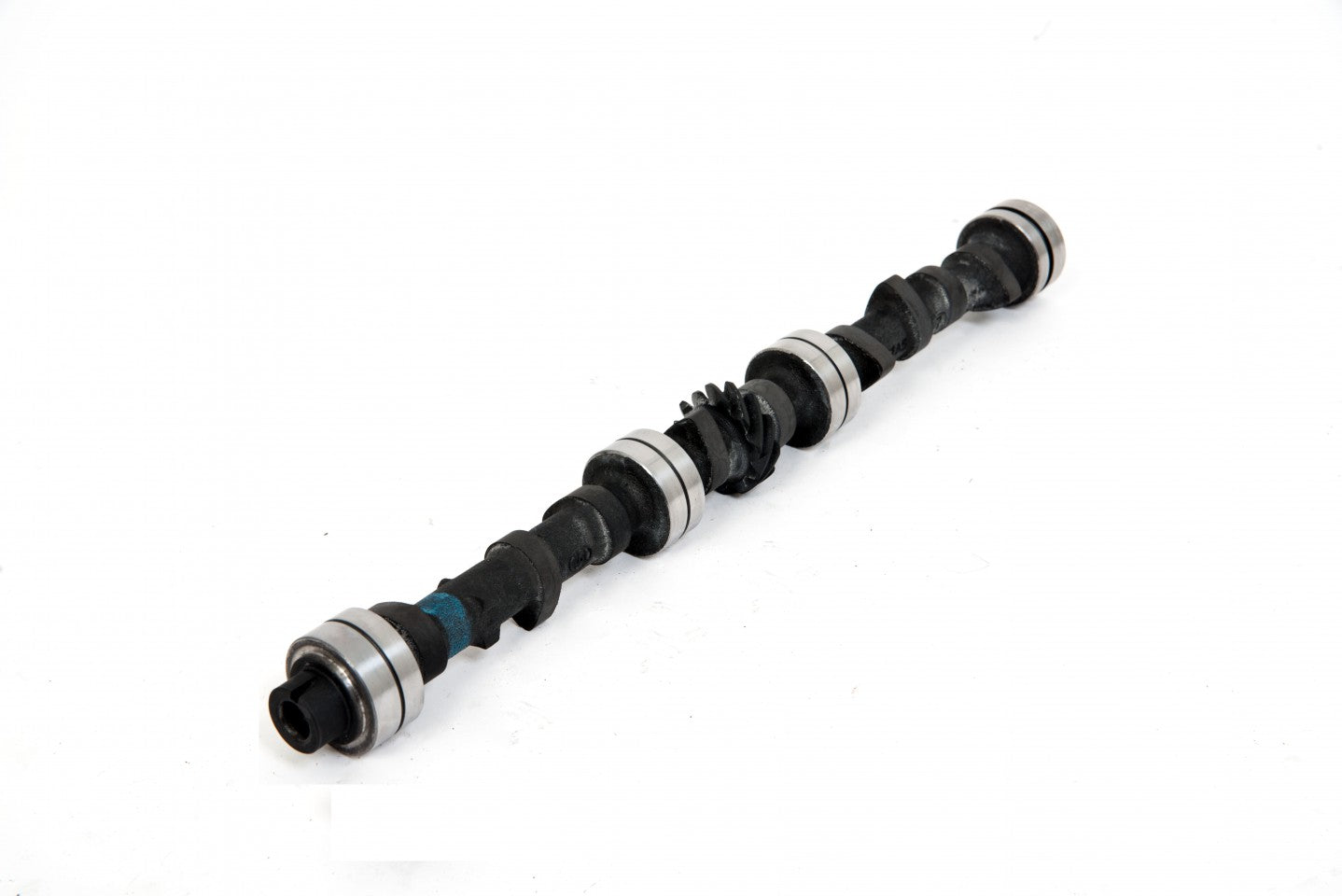

SKU: SKU: R5TBP285B
Profile: BP285.
Application: Ultimate Road.
Unit Type; Blank.
Note:Not suitable for use with standard O.E springs. Piper VSSR5 springs must be used.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new browser.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2500-6500 |
| Power Increase | 20BHP |
| Duration Inlet | 270° |
| Duration Exhaust | 270° |
| Valve Inlet Lift | .392" 9.95mm |
| Valve Exhaust Lift | .390" 9.90mm |
| Timing Inlet | 23 - 67 |
| Timing Exhaust | 67 - 23 |
| Full Inlet Lift | 112° |
| TDC Inlet Lift | .037" 0.94mm |
| TDC Exhaust Lift | .035" 0.89mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
