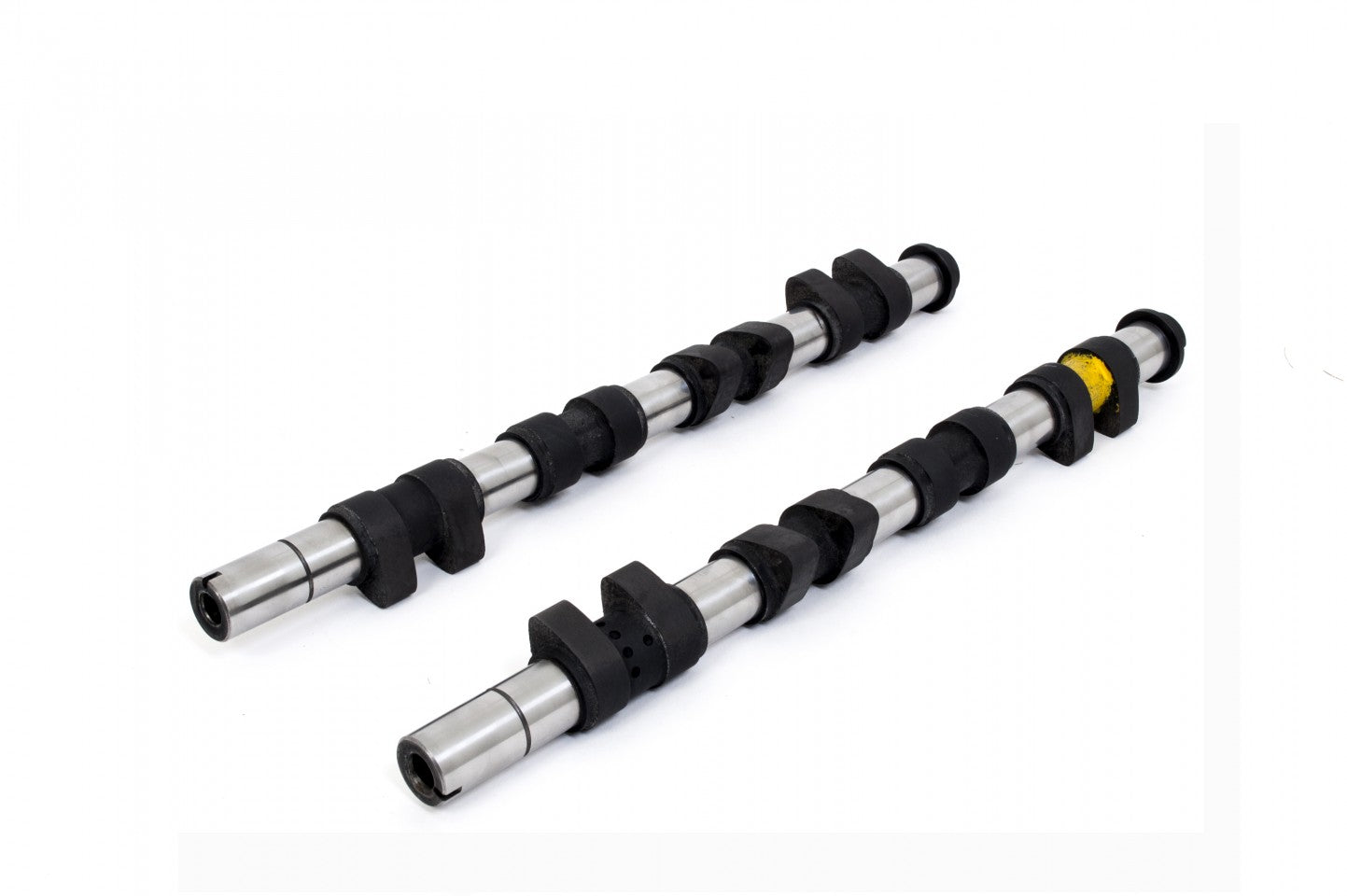

Piper Cams Camshaft - Race (Renault)

SKU: SKU: R16VBP320MB

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP320M.

Application: Race.

Unit Type: Blank.

Designed to be used in engines utilising Mechanical followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5 kg
Application Race
Power Band 4000-8300
Duration Inlet 300°
Duration Exhaust 300°
Valve Inlet Lift .480" 12.19mm
Valve Exhaust Lift .480" 12.19mm
Timing Inlet 46 - 74
Timing Exhaust 76 - 44
Full Inlet Lift 104°
Full Exhaust Lift 106°
TDC Inlet Lift .192" 4.88mm
TDC Exhaust Lift .180" 4.57mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • MK1 Renault CLIO 1.8 16v F7P / Williams 2.0 16v F7R
