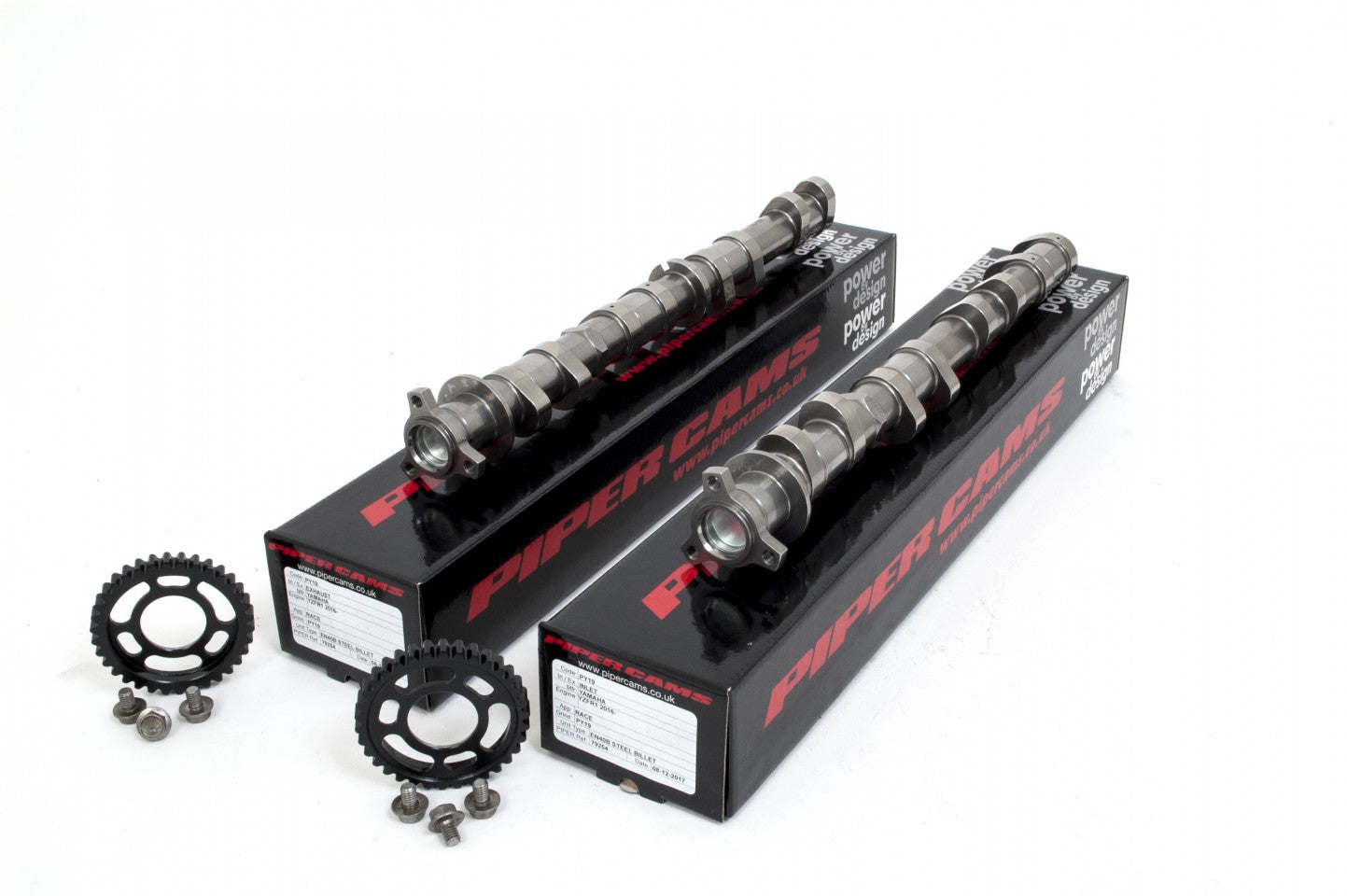

Piper Cams R1 Camshafts - Race (Yamaha Motorcycles)

SKU: SKU: PY19

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Yamaha YZF R1 2016.

Profile: PY19

Application: Race.

Note: Steel Billet Camshafts & sprockets.

Note: These Camshafts are not compatible with OEM Sprockets.

Note: These Camshafts are 'Tribo' Finished as standard.

Specifications

Weight 6 kg
Application Street
Duration Inlet 254
Duration Exhaust 252
Valve Inlet Lift 0.410 / 10.41MM
Valve Exhaust Lift 0.372 / 9.45MM
Timing Inlet OPEN 22 BTDC / CLOSE 52 ABDC
Timing Exhaust OPEN 54 BBDC / CLOSE 18 ATDC
Full Inlet Lift 105
Full Exhaust Lift 108
TDC Inlet Lift 0.126 / 3.21MM
TDC Exhaust Lift 0.106 / 2.70MM
Valve Inlet Clearance 0.005 / 0.130MM
Valve Exhaust Clearance 0.008 / 0.205MM

Vehicle Application

  • Yamaha YZF R1
