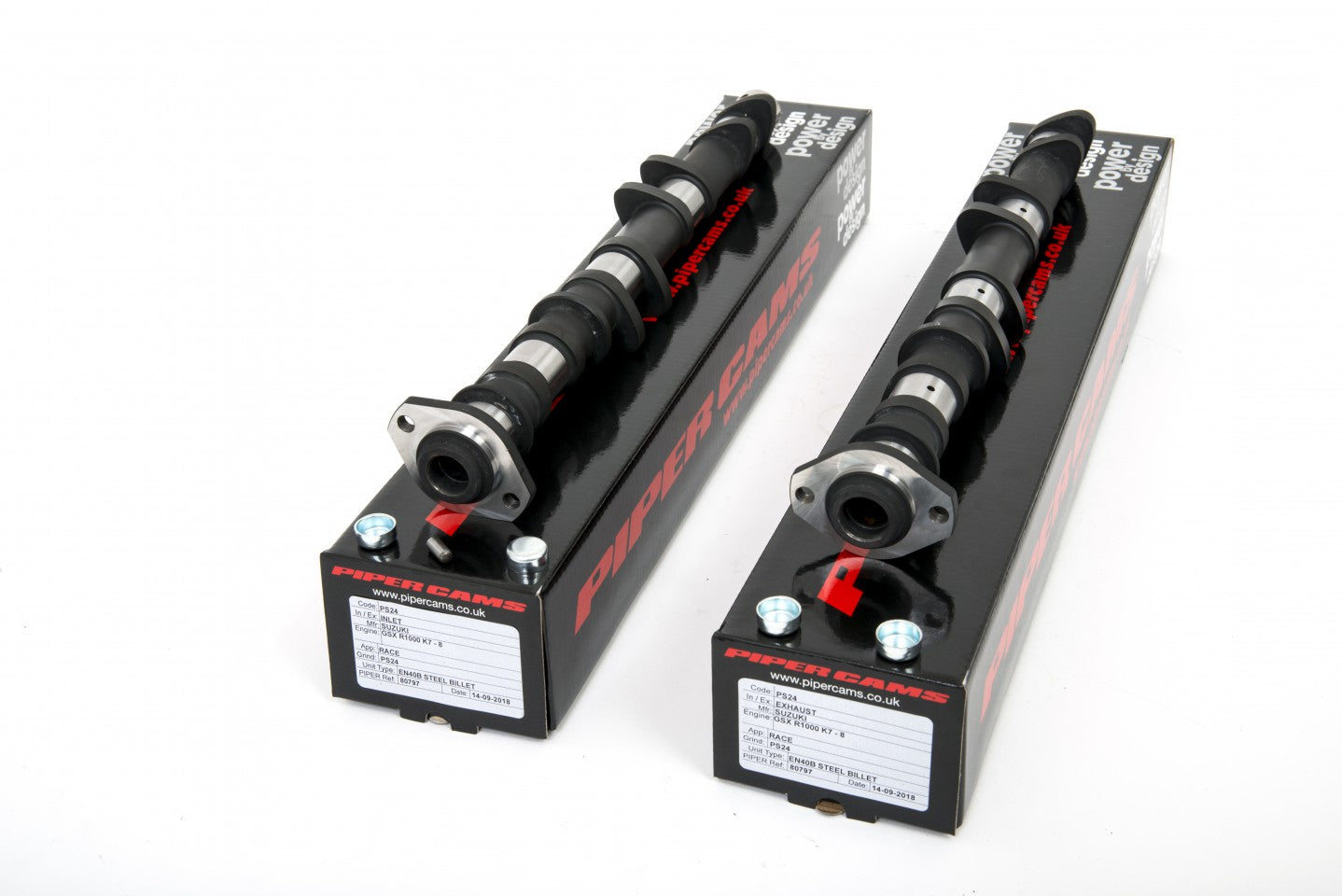

Piper Cams Suzuki GSX R1000 Camshaft - Race (K5 - K8)

SKU: SKU: PS17B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Suzuki GSX R1000 K5 - K8.

Profile: PS17

Application: Race.

Note:These are Steel Billet Camshafts. Sprockets included.

Specifications

Weight 6 kg
Application Race
Duration Inlet 256 deg
Duration Exhaust 246 deg
Valve Inlet Lift .394"
Valve Exhaust Lift .342"
Timing Inlet 23-53
Timing Exhaust 49-19
Full Inlet Lift 105 deg
Full Exhaust Lift 105 deg
TDC Inlet Lift .136"
TDC Exhaust Lift .110"
Valve Inlet Clearance .006" / .15mm
Valve Exhaust Clearance .008" / .20mm

Vehicle Application

  • Suzuki GSX R1000
