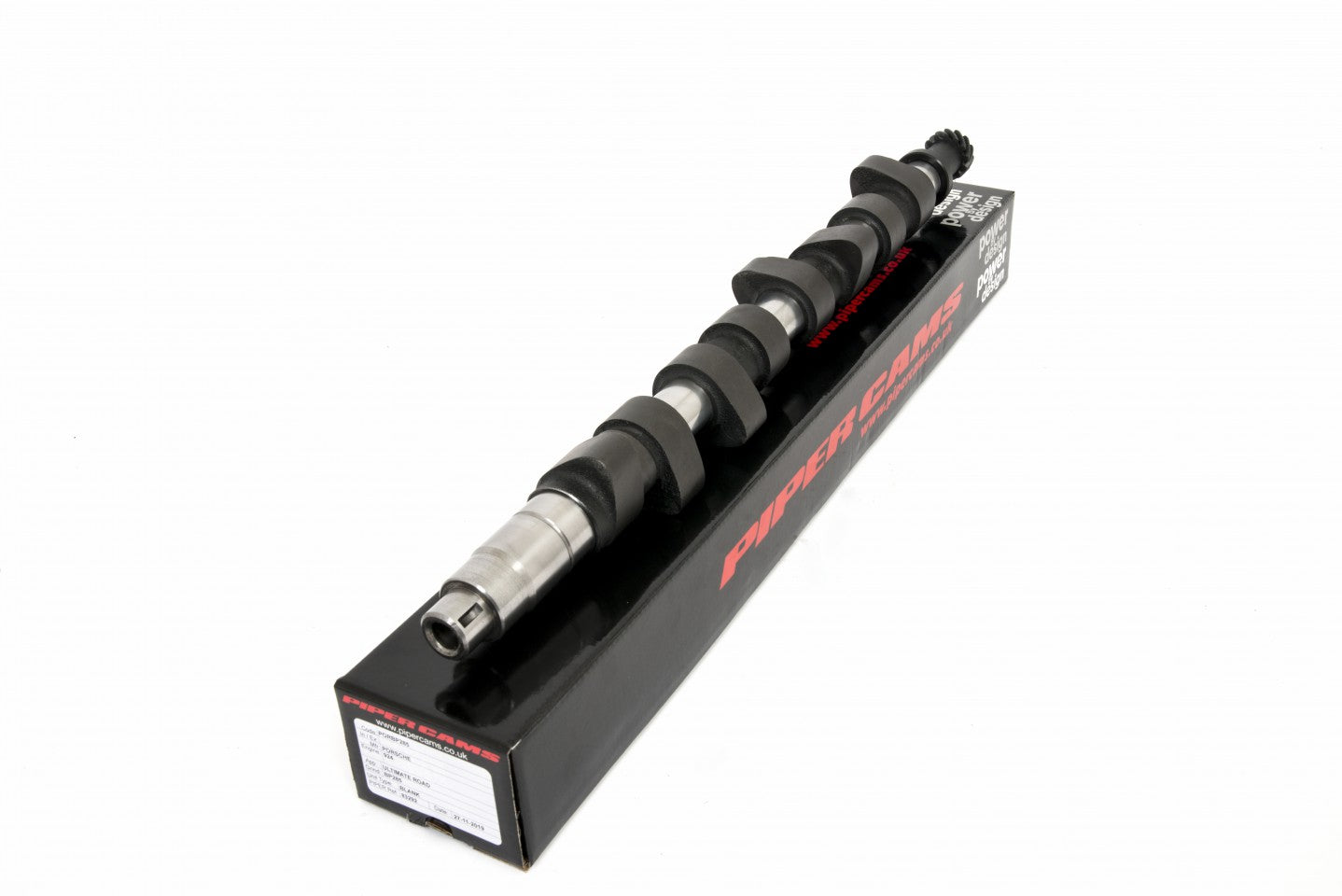

SKU: SKU: PORBP285B
Profile: BP285.
Application: Ultimate Road.
Unit Type: Blank.
Note: Vernier Pulleys are recommended for use with this profile, PULDPOR.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new browser.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-7000 |
| Power Increase | 12BHP |
| Duration Inlet | 284° |
| Duration Exhaust | 284° |
| Valve Inlet Lift | .462" 11.72mm |
| Valve Exhaust Lift | .460" 11.67mm |
| Timing Inlet | 34 - 70 |
| Timing Exhaust | 70 - 34 |
| Full Inlet Lift | 108° |
| TDC Inlet Lift | .100" 2.54mm |
| TDC Exhaust Lift | .098" 2.49mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
