SKU: SKU: PHDIBP285R
Profile: BP285.
Application: Ultimate Road.

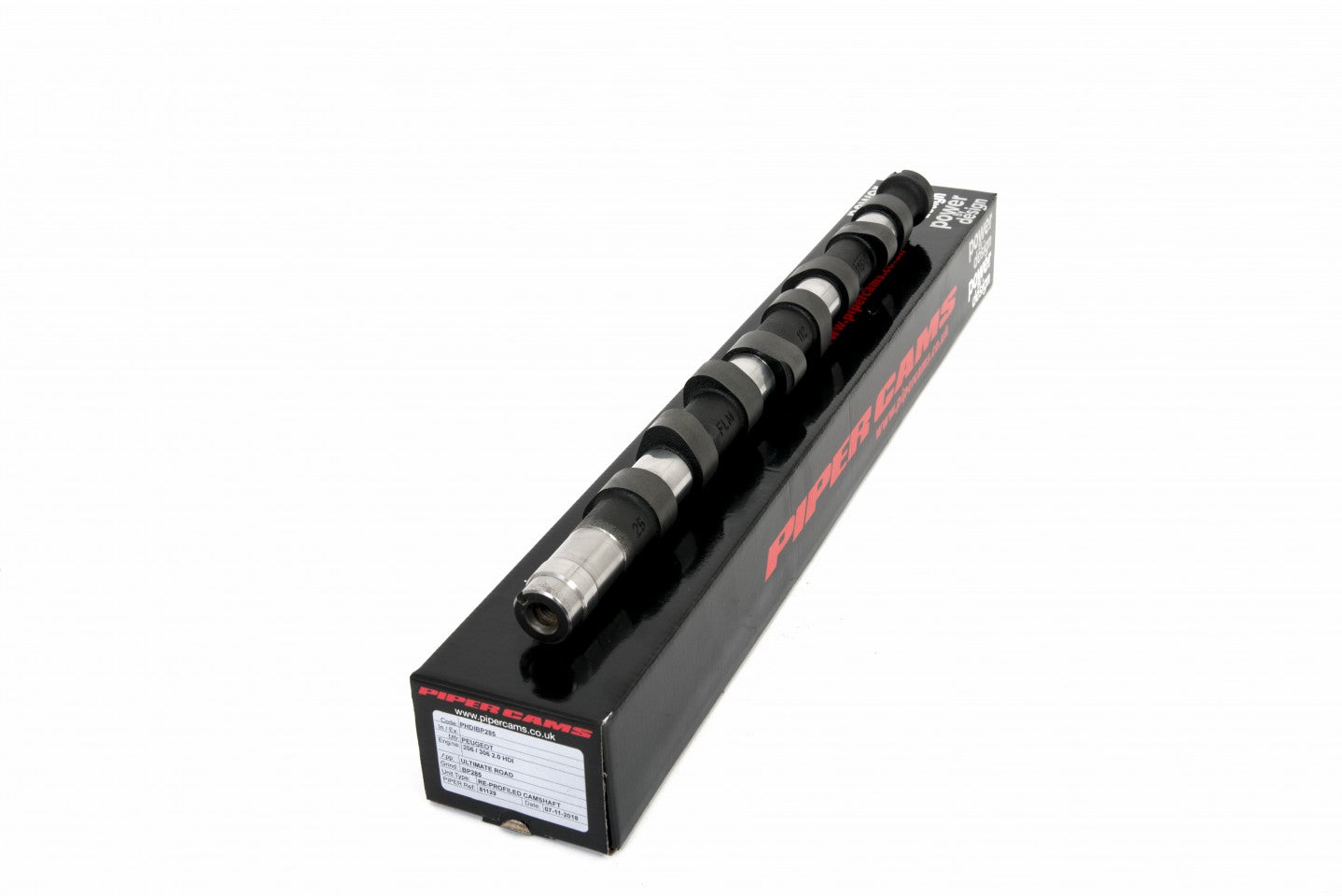

Unit Type: Re-Profiled Camshaft.
Note: This is a re-profile camshaft only. You will need to complete our Send Parts form and send us your existing camshaft. For more information, please take a look at our Reprofiling page.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new browser.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 1500-6500 |
| Power Increase | 12BHP |
| Duration Inlet | 258° |
| Duration Exhaust | 256° |
| Valve Inlet Lift | .365" 9.26mm |
| Valve Exhaust Lift | .383" 9.73mm |
| Timing Inlet | 19 - 59 |
| Timing Exhaust | 58 - 18 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
