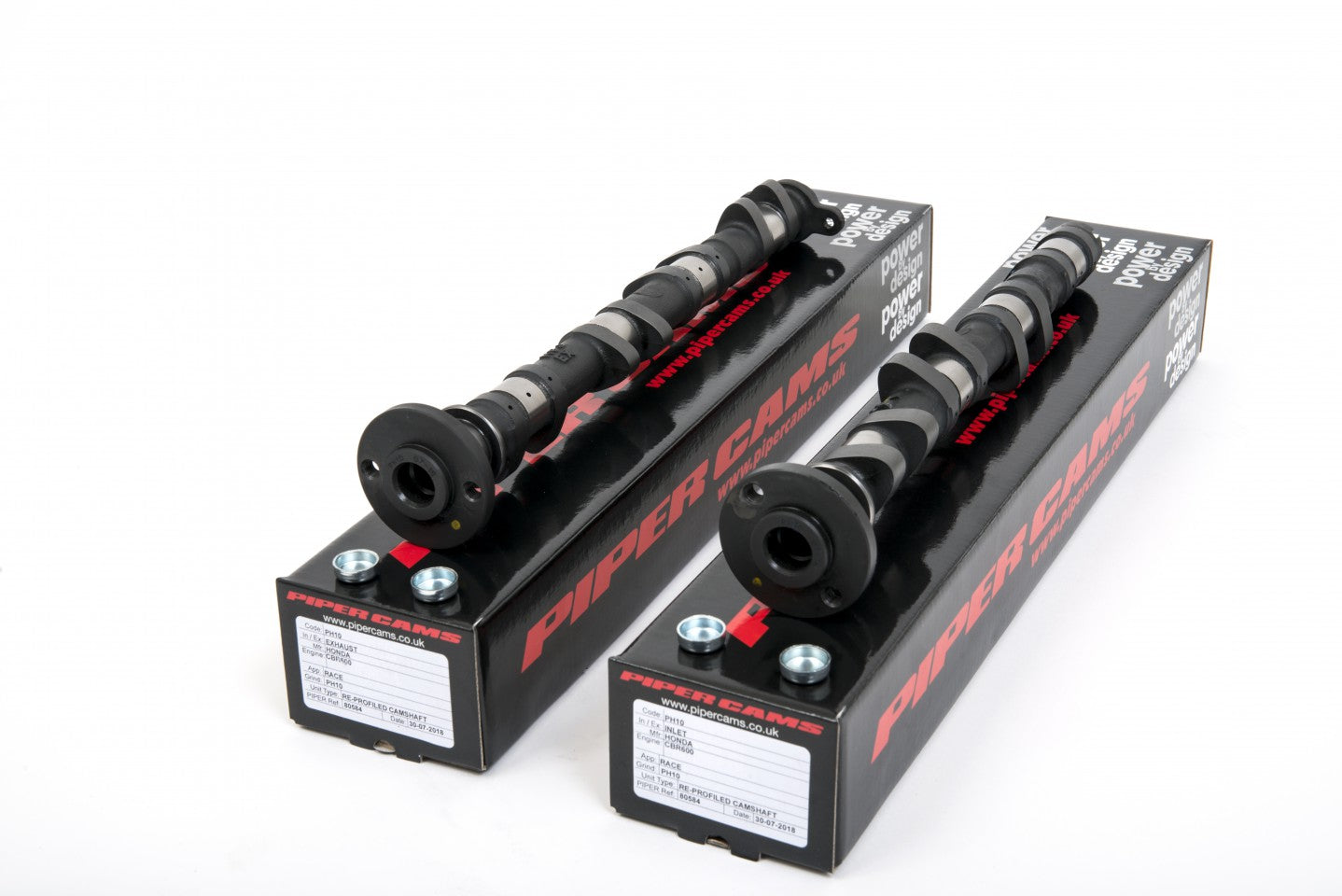

Piper Cams Camshaft - Supersport (Honda Motorcycles)

Piper Cams

Piper Cams Camshaft - Supersport (Honda Motorcycles)

SKU: SKU: PH14

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Honda 600 RR 2003 -

Profile: PH14

Application: Supersport.

Note:These are re-profile camshafts only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.

Specifications

Weight 6 kg
Application Supersport
Duration Inlet 253 deg
Duration Exhaust 235 deg
Valve Inlet Lift .327"
Valve Exhaust Lift .281"
Timing Inlet 21-51
Timing Exhaust 43-13
Full Inlet Lift 105 deg
Full Exhaust Lift 105 deg
TDC Inlet Lift .112"
TDC Exhaust Lift .078"
Valve Inlet Clearance .008" / 0.20mm
Valve Exhaust Clearance .010" / .25mm

Vehicle Application

  • Honda CBR600 03-06
