SKU: SKU: P16VBP285B

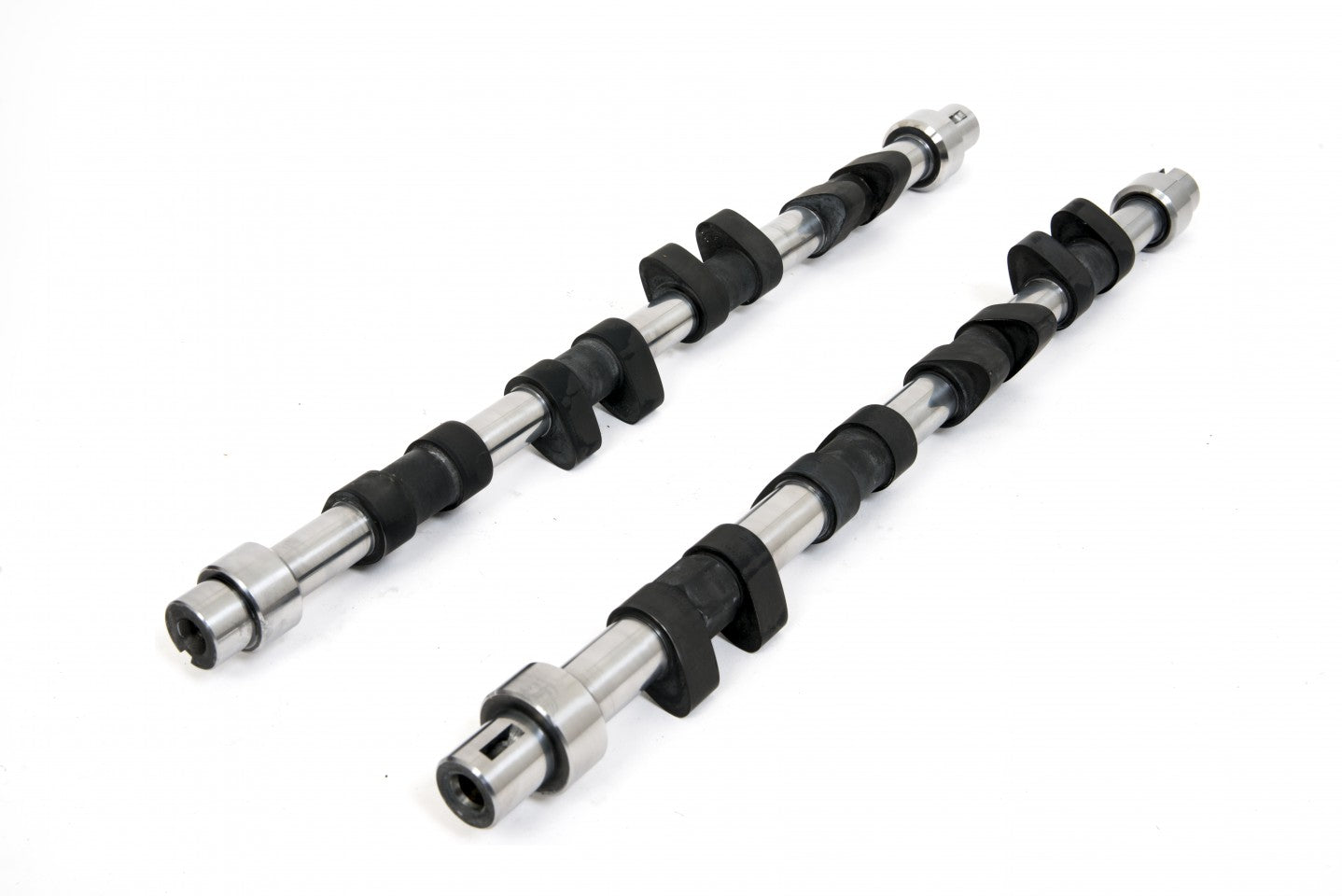

Profile: BP285H.
Application: Ultimate Road.
Unit Type: Blank.
Note: Not suitable for use with standard O.E springs.
We recommend our vssmi16kspring kit.
Download:-
Right click the link and select 'Save as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2500-7500 |
| Duration Inlet | 274° |
| Duration Exhaust | 274° |
| Valve Inlet Lift | .430" 10.92mm |
| Valve Exhaust Lift | .430" 10.92mm |
| Timing Inlet | 31 - 63 |
| Timing Exhaust | 65 - 29 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 108° |
| TDC Inlet Lift | .098" 2.48mm |
| TDC Exhaust Lift | .088" 2.23mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
