SKU: SKU: P16BP320B
Profile: BP320.
Application: Race.
Unit Type: Blank.

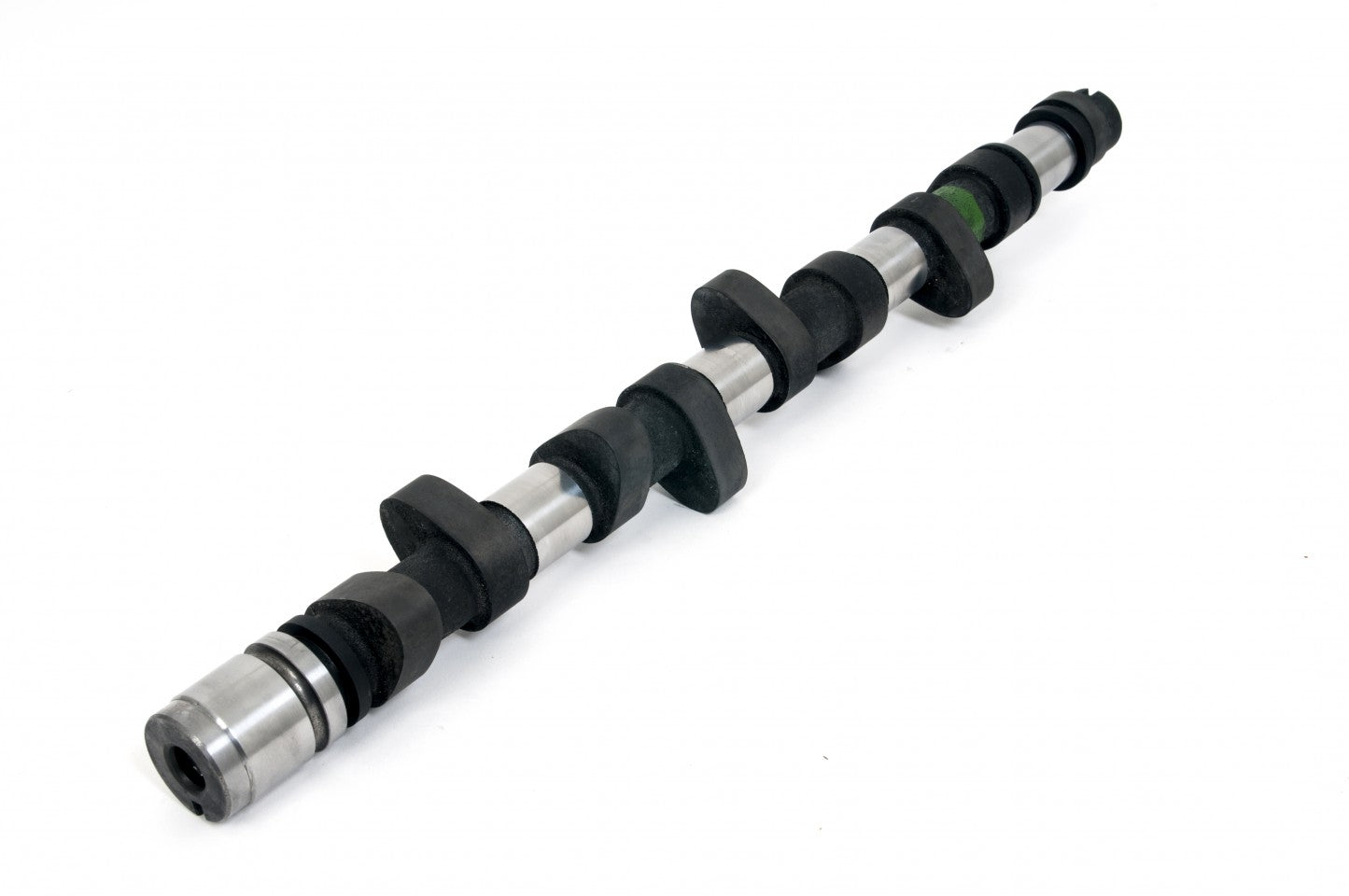

1600 Race Camshaft.
Note:Piper supply these camshafts on universal blank castings, meaning they have both the thrust groove & thrust shoulders.
Download:-
Right click the link and select 'Save as' to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Race |
| Power Band | 4000-8500 |
| Duration Inlet | 308° |
| Duration Exhaust | 308° |
| Valve Inlet Lift | .528" 13.41mm |
| Valve Exhaust Lift | .526" 13.36mm |
| Timing Inlet | 50 - 78 |
| Timing Exhaust | 78 - 50 |
| Full Inlet Lift | 104° |
| TDC Inlet Lift | .190" 4.83mm |
| TDC Exhaust Lift | .188" 4.78mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
