SKU: SKU: P16528B
Profile: 528.
Application: Hot Road Race.
Unit Type: Blank.
Note: The ultimate power in 1900 engines.

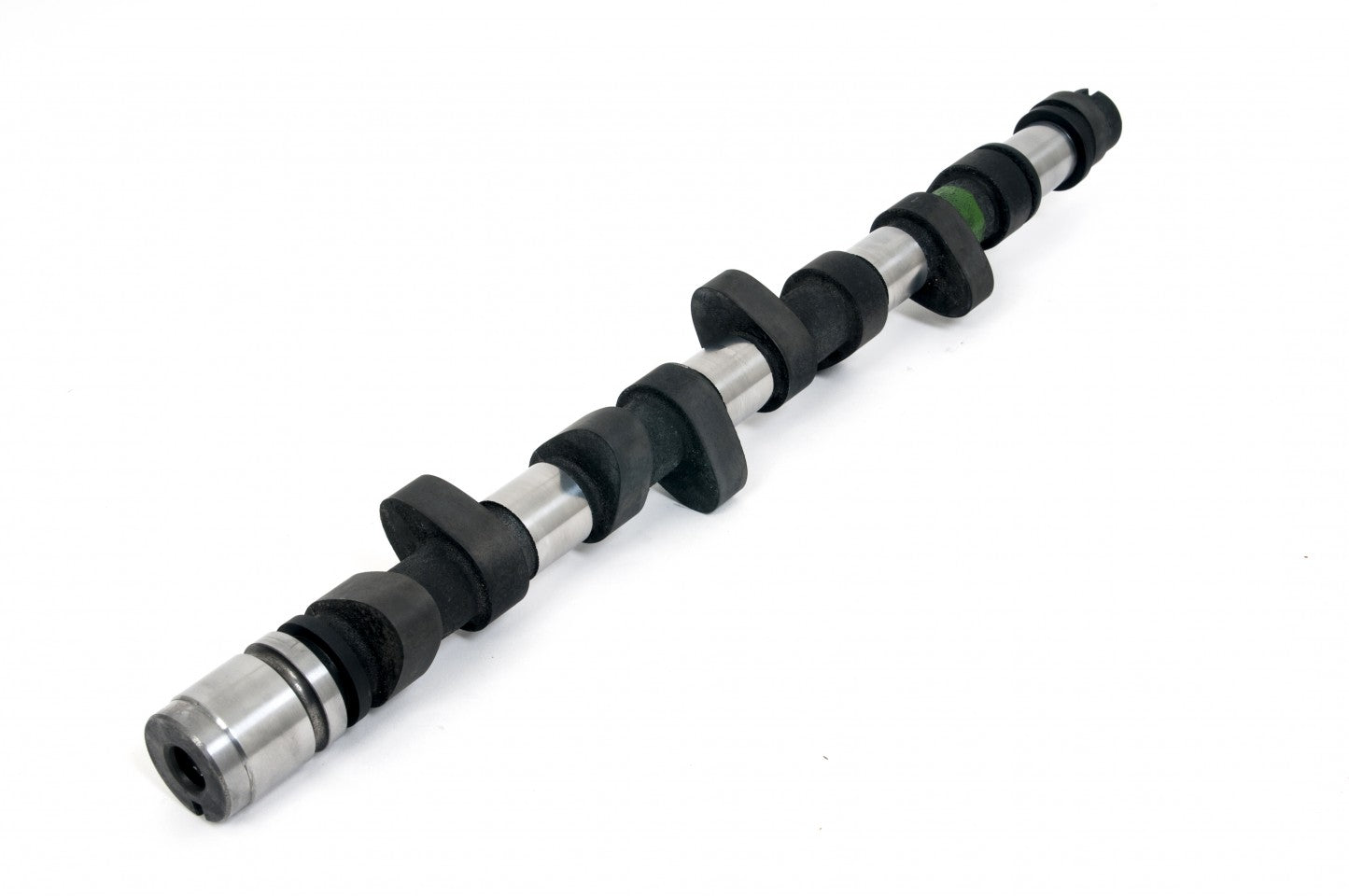

Note:Piper supply these camshafts on universal blank castings, meaning they have both the thrust groove & thrust shoulders.
Download:-
Right click the link and select 'Save as' to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Race |
| Power Band | 4000-8500 |
| Duration Inlet | 328° |
| Duration Exhaust | 328° |
| Valve Inlet Lift | .552" 14.02mm |
| Valve Exhaust Lift | .552" 14.02mm |
| Timing Inlet | 62 - 86 |
| Timing Exhaust | 90 - 58 |
| Full Inlet Lift | 102° |
| TDC Inlet Lift | .227" 5.76mm |
| TDC Exhaust Lift | .225" 5.71mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
