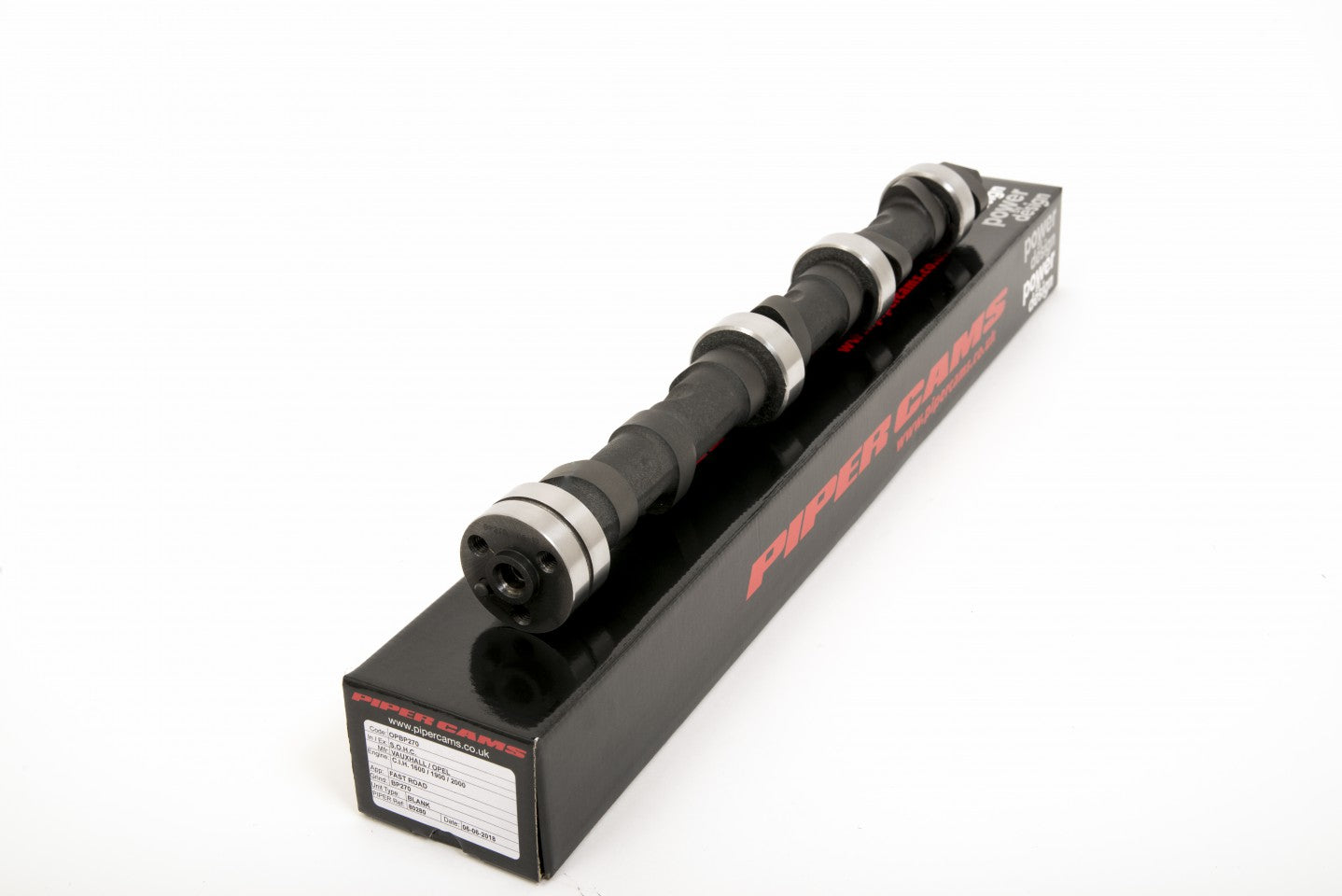

Piper Cams Camshaft - Mild Road (Vauxhall)

SKU: SKU: OPBP255B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP255.

Application: Mild Road.

Unit Type: Blank.

Note: Designed for use with mechanical cam followers.

Download:-

Fitting Data.

Right click the above link and select 'Save link as' to download.

Click link to open in a new tab.

Specifications

Weight 3 kg
Application Mild Road
Power Band 1800-6000
Power Increase 6BHP
Duration Inlet 260°
Duration Exhaust 260°
Valve Inlet Lift .393" 9.98mm
Valve Exhaust Lift .393" 9.98mm
Timing Inlet 21 - 59
Timing Exhaust 59 - 21
Full Inlet Lift 109°
TDC Inlet Lift .051" 1.30mm
TDC Exhaust Lift .049" 1.25mm
Valve Inlet Clearance .016" .40mm
Valve Exhaust Clearance .018" .45mm

Vehicle Application

  • Vauxhall / OPEL C.I.H. 1.6 / 1.9 / 2.0 4 CYL
