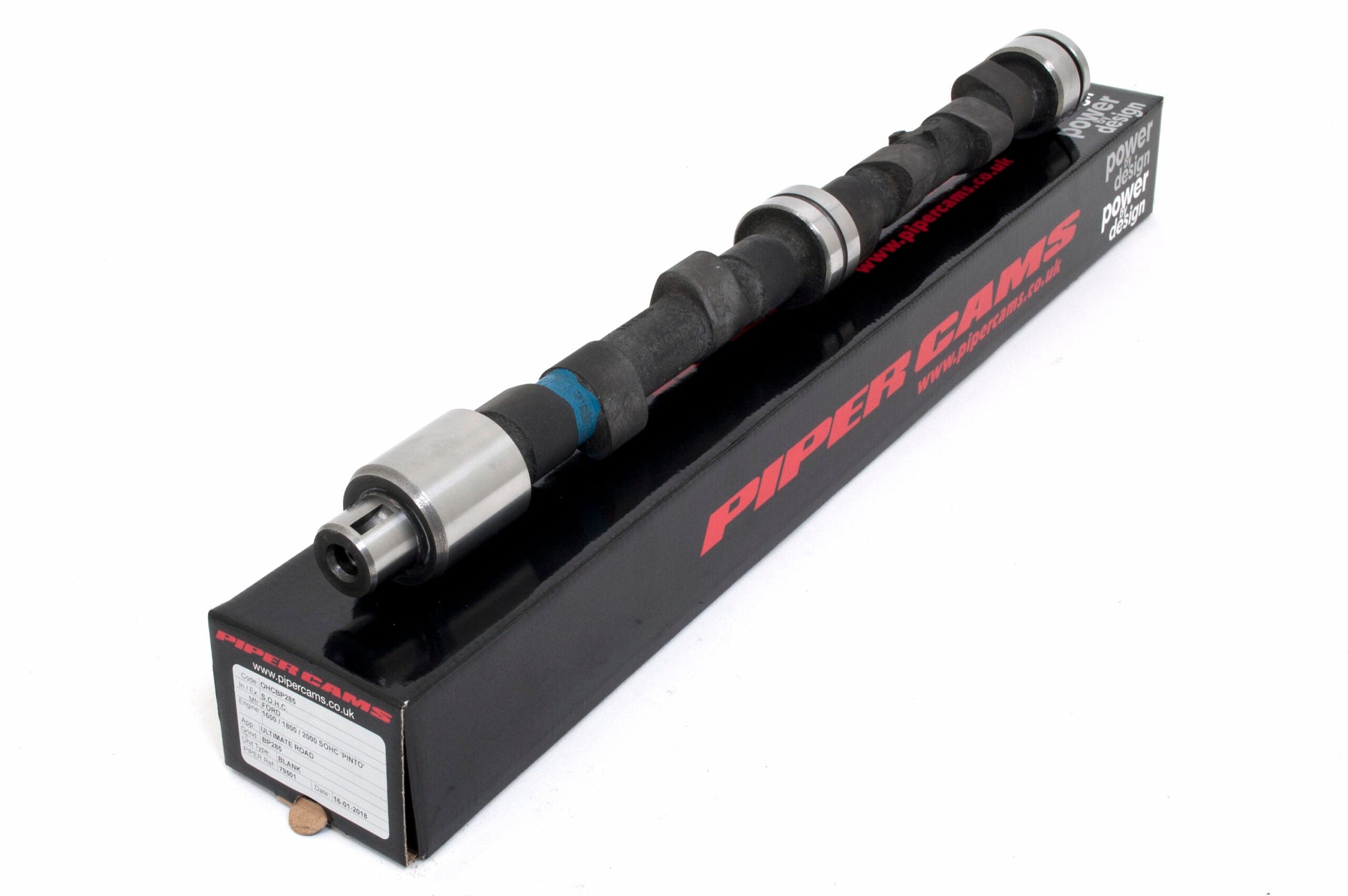

Piper Cams Camshaft - Race (Ford)

SKU: SKU: OHCBP320B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP320.

Application: Race.

Unit Type: Blank.

For circuit racing where outright power is the name of the game. Capable of producing over 220bhp in a 2.0 engine.

Download:-

Timing Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Race
Power Band 4000-8500
Duration Inlet 322°
Duration Exhaust 322°
Valve Inlet Lift .540" 13.70mm
Valve Exhaust Lift .540" 13.70mm
Timing Inlet 57 - 85
Timing Exhaust 85 - 57
Full Inlet Lift 104°
Valve Inlet Clearance .012" .30mm
Valve Exhaust Clearance .012" .30mm

Vehicle Application

  • FORD SOHC 1.6 / 2.0 Pinto
