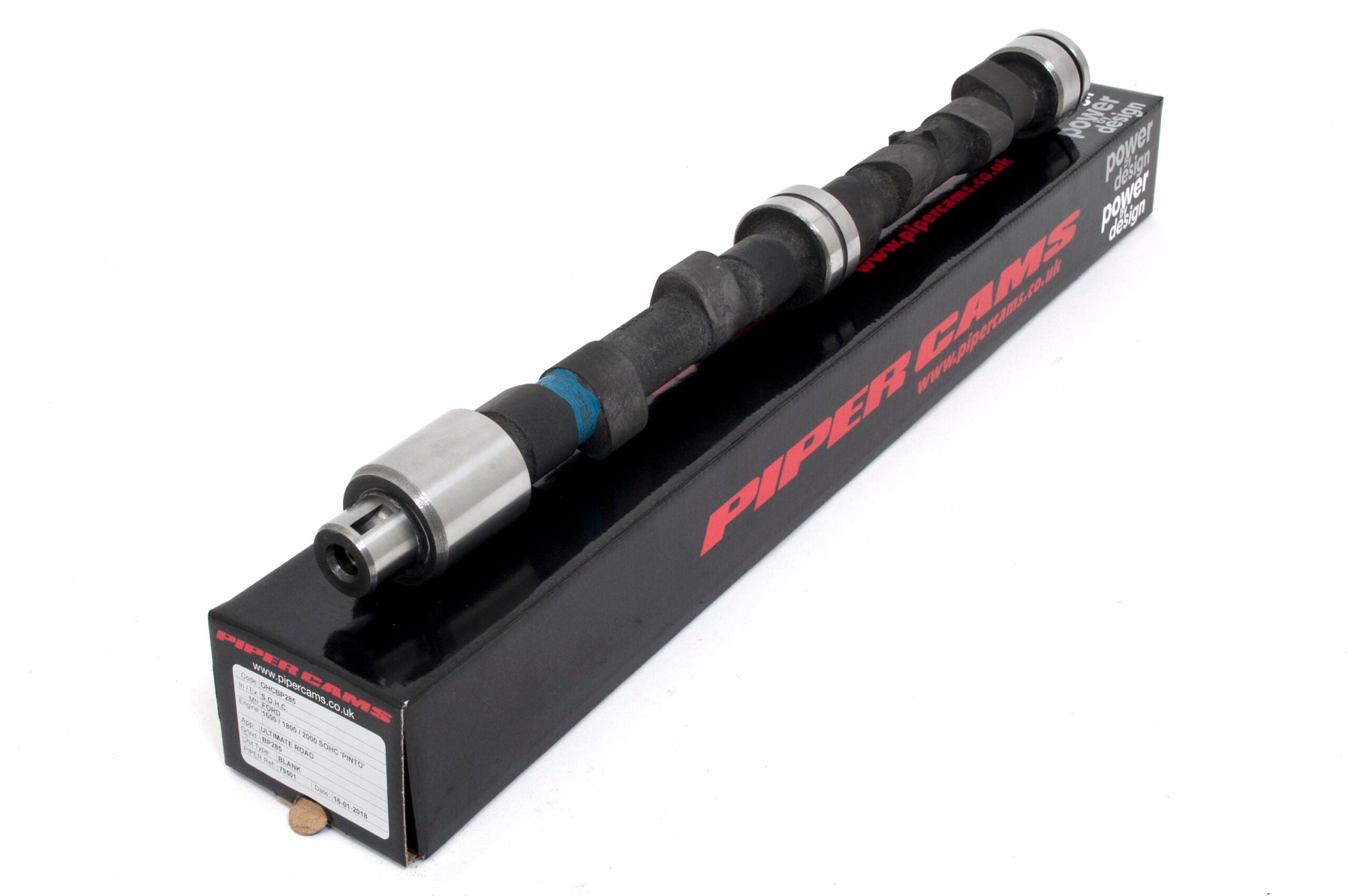

Piper Cams Camshaft - Rally (Ford)

SKU: SKU: OHCA8B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: A8.

Application: Rally/Grass/2.0 Hot Rod.

Unit Type: Blank.

Download:-

Fitting Data.

Right click the link and select ‘Save link as’ to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Rally
Power Band 2800-7800
Duration Inlet 304°
Duration Exhaust 304°
Valve Inlet Lift .500" 12.70mm
Valve Exhaust Lift .500" 12.70mm
Timing Inlet 48 - 76
Timing Exhaust 76 - 48
Full Inlet Lift 104°
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • FORD SOHC 1.6 / 2.0 Pinto
